QR25DE Models: Notes

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

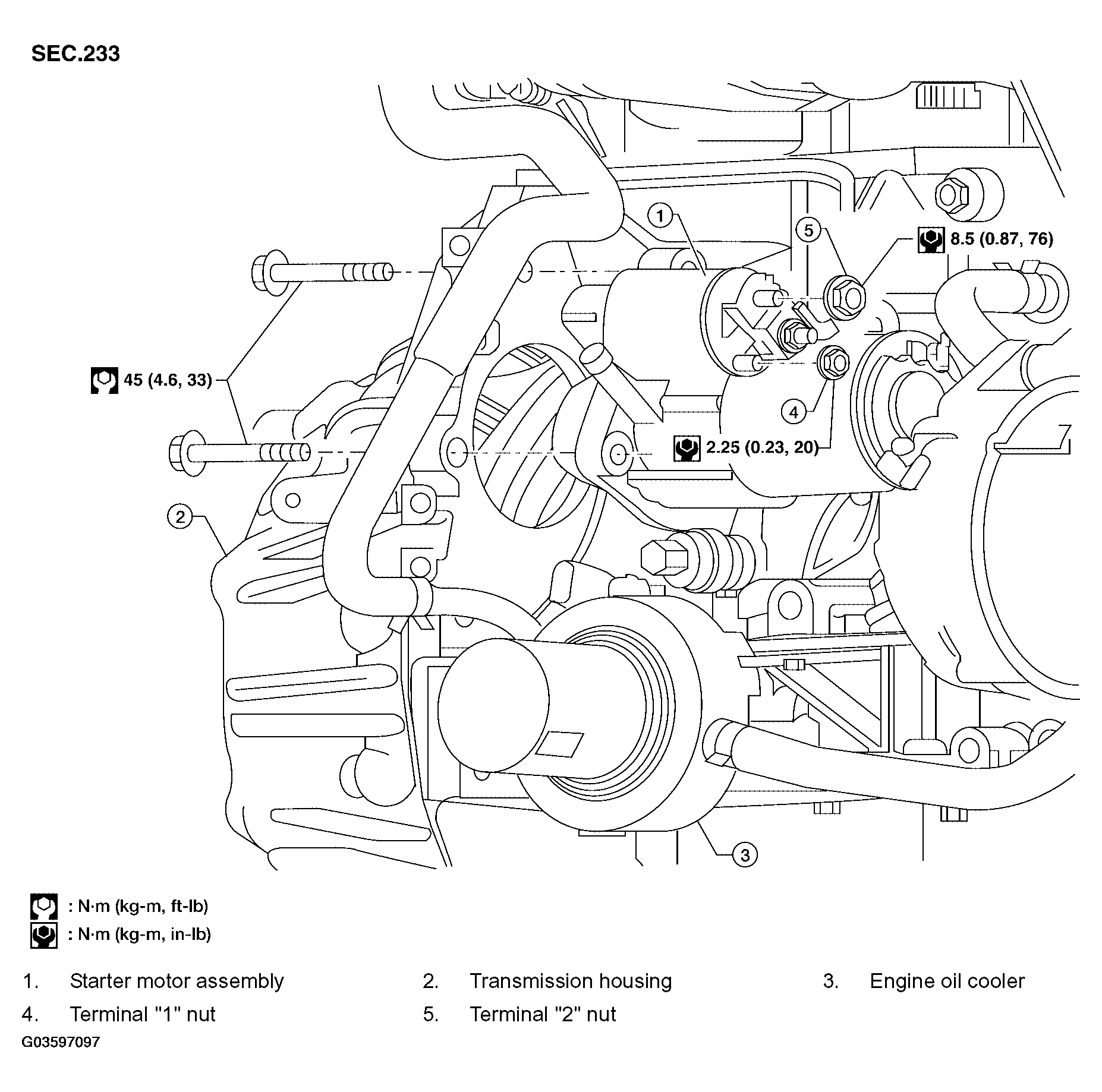

Fig 1: Removing Starter Motor Assembly With Torque Specifications (QR25DE Models)
G03597097Courtesy of NISSAN MOTOR CO., U.S.A.
