Main Bearing: Notes
WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

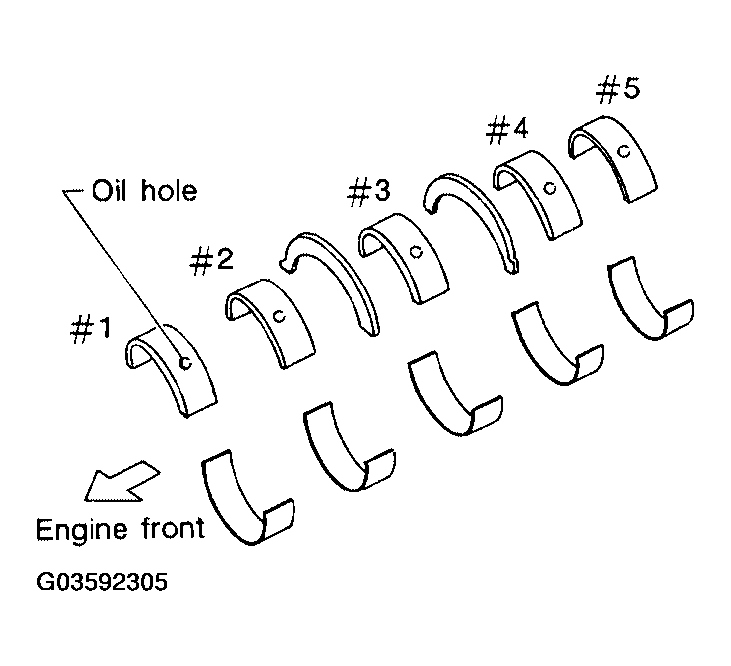

MAIN BEARING
| Unit: mm(in) | ||||
|---|---|---|---|---|
| Grade number | Thickness | Identification color | Remarks | |
| 0 | 1.973 - 1.976 (0.0777 - 0.0778) | Black | Grade and color are the same for upper and lower bearings. | |
| 1 | 1.976 - 1.979 (0.0778 - 0.0779) | Brown | ||
| 2 | 1.979 - 1.982 (0.0779 - 0.0780) | Green | ||
| 3 | 1.982 - 1.985 (0.0780 - 0.0781) | Yellow | ||
| 4 | 1.985 - 1.988 (0.0781 - 0.0783) | Blue | ||
| 5 | 1.988 - 1.991 (0.0783 - 0.0784) | Pink | ||
| 6 | 1.991 - 1.994 (0.0784 - 0.0785) | Purple | ||
| 7 | 1.994 - 1.997 (0.0785 - 0.0786) | White | ||
| 01 | UPR | 1.973 - 1.976 (0.0777 - 0.0778) | Black | Grade and color are different for upper and lower bearings. |
| LWR | 1.976 - 1.979 (0.0778 - 0.0779) | Brown | ||
| 12 | UPR | 1.976 - 1.979 (0.0778 - 0.0779) | Brown | |
| LWR | 1.979 - 1.982 (0.0779 - 0.0780) | Green | ||
| 23 | UPR | 1.979 - 1.982 (0.0779 - 0.0780) | Green | |
| LWR | 1.982 - 1.985 (0.0780 - 0.0781) | Yellow | ||
| 34 | UPR | 1.982 - 1.985 (0.0780 - 0.0781) | Yellow | |
| LWR | 1.985 - 1.988 (0.0781 - 0.0783) | Blue | ||
| 45 | UPR | 1.985 - 1.988 (0.0781 - 0.0783) | Blue | |
| LWR | 1.988 - 1.991 (0.0783 - 0.0784) | Pink | ||
| 56 | UPR | 1.988 - 1.991 (0.0783 - 0.0784) | Pink | |
| LWR | 1.991 - 1.994 (0.0784 - 0.0785) | Purple | ||
| 67 | UPR | 1.991 - 1.994 (0.0784 - 0.0785) | Purple | |
| LWR | 1.994 - 1.997 (0.0785 - 0.0786) | White | ||
