Inspection and Adjustment: Inspection

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the brake pedal free height "H" from dash lower using Tool.
Tool: - (J-46532)

Adjust the height referring to the following specifications.

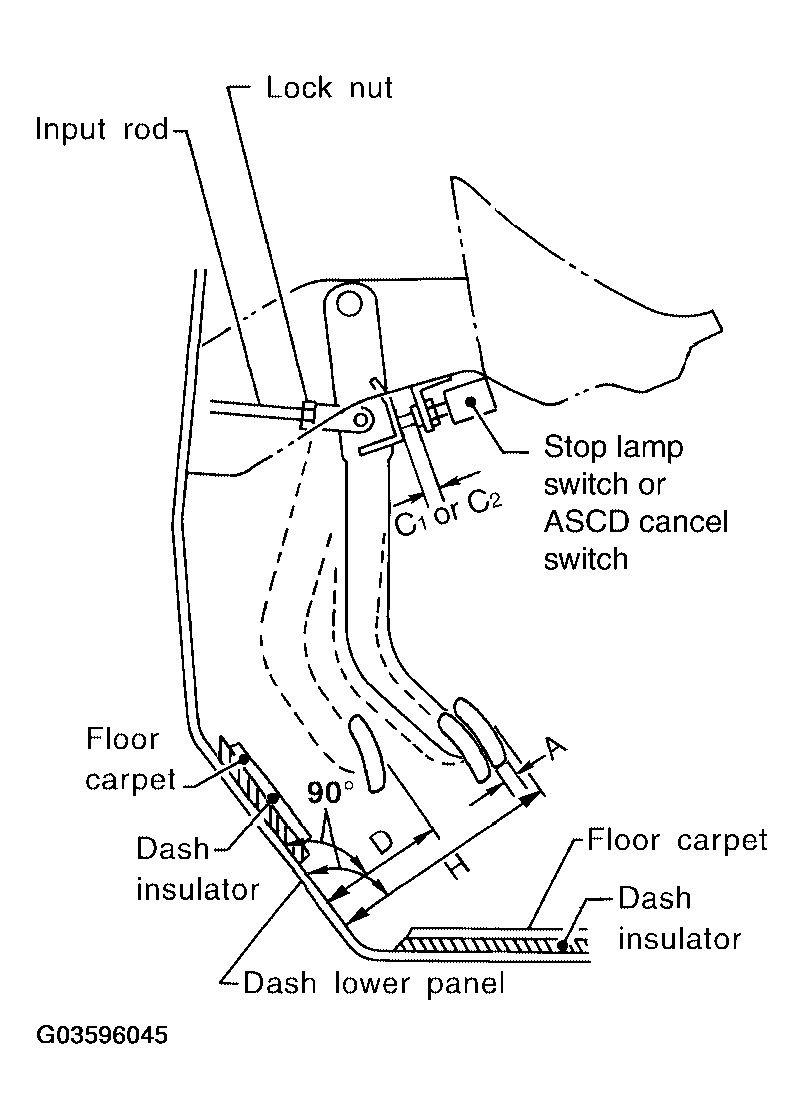

Fig 1: Inspecting Brake Pedal Free Height

Courtesy of NISSAN MOTOR CO., U.S.A.

Unit: mm (in)

BRAKE PEDAL SPECIFICATION

Free height "H"	A/T	: 182.1 - 192.1 (7.17 - 7.56)
	M/T	: 174.7 - 184.7 (6.88 - 7.27)
Depressed pedal height ("D" [under a force of 490 N (50 kg, 110 lb) with engine running]		: 103 - 123 (4.06 - 4.84)
Clearance between pedal stopper and threaded end of stop lamp switch and ASCD switch "C1 " or "C2 "		: 0.74 - 1.96 mm (0.029 - 0.077 in)
Pedal play "A"		: 3 - 11 mm (0.12 - 0.43 in)
