Memory Storing And KEYFOB Interlock Storing

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Store the 2 driving positions and shifts to the stored driving position with the memory switch.
Keyfob interlock function is set simultaneously with setting driving position memory. It can set driving position to memory position.

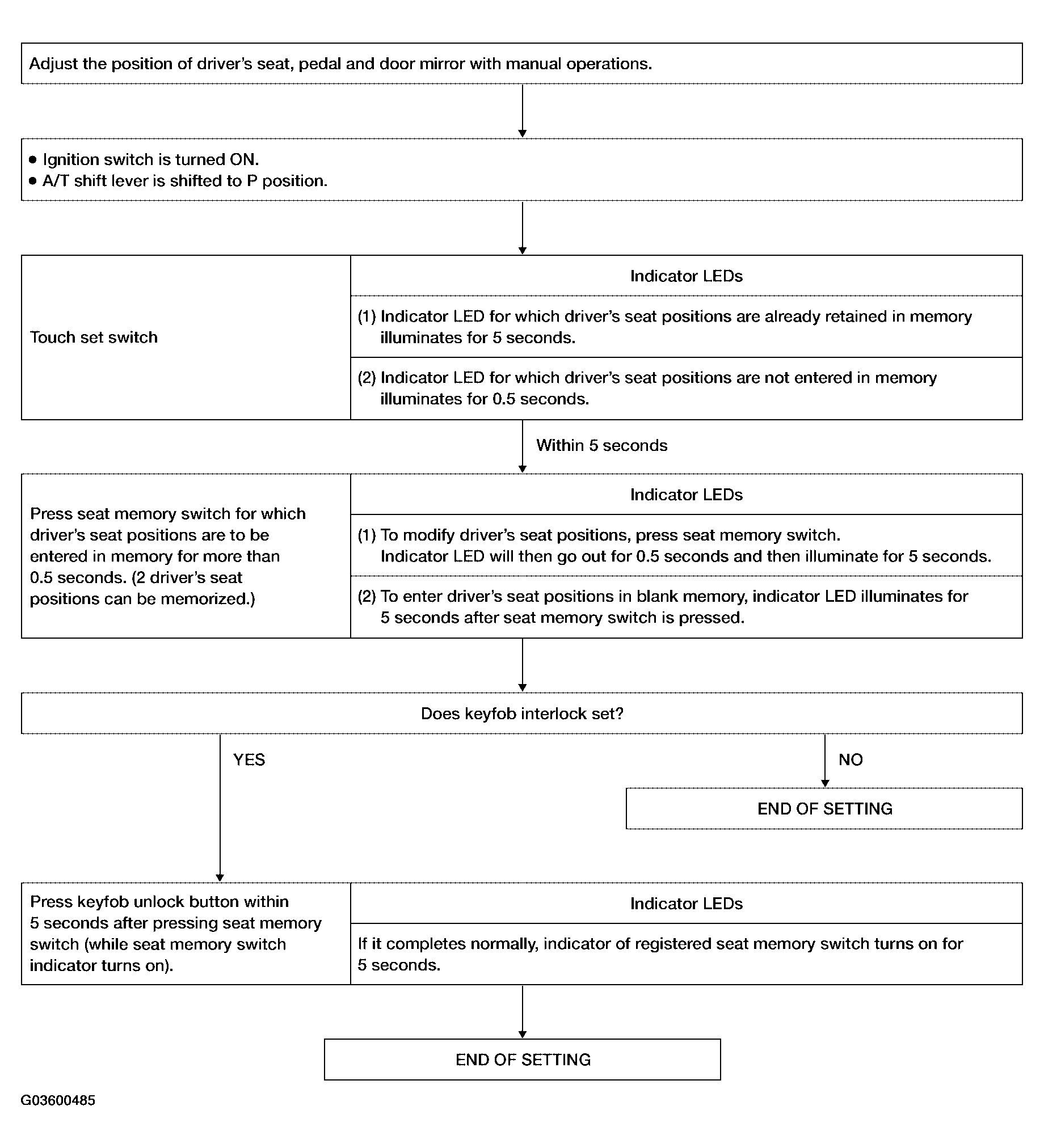

Fig 1: Flow Chart Of Memory Storing And Keyfob Interlock Storing
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

If another keyfob interlock function setting is performed by same key, the newly registered setting is valid.
If a new memory string is performed to memory switch that already set keyfob interlock function, keyfob interlock function setting is reset.
If the keyfob has not been previously programmed to the vehicle, keyfob interlock function cannot set.
