Lower Instrument Panel LH

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Remove screws using power tool, and remove lower instrument panel LH.

Pull to disconnect clips.
Disconnect harnesses.

Installation is in the reverse order of removal.

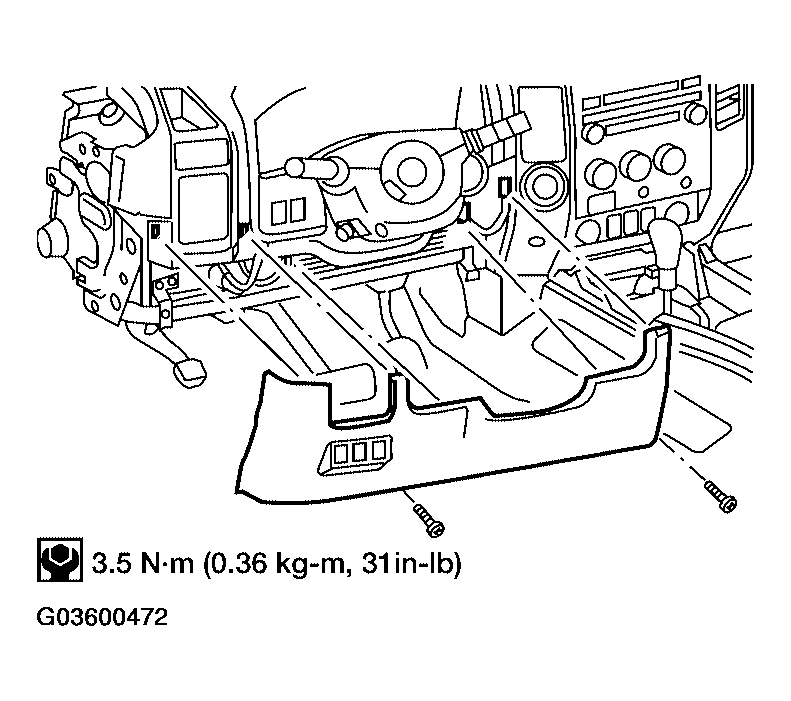

Fig 1: Removing/Installing Lower Instrument Panel LH, With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
