Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal, paying attention to the following:
- Confirm that no foreign objects are adhering to the sealing surfaces of the oil cooler or oil pan.

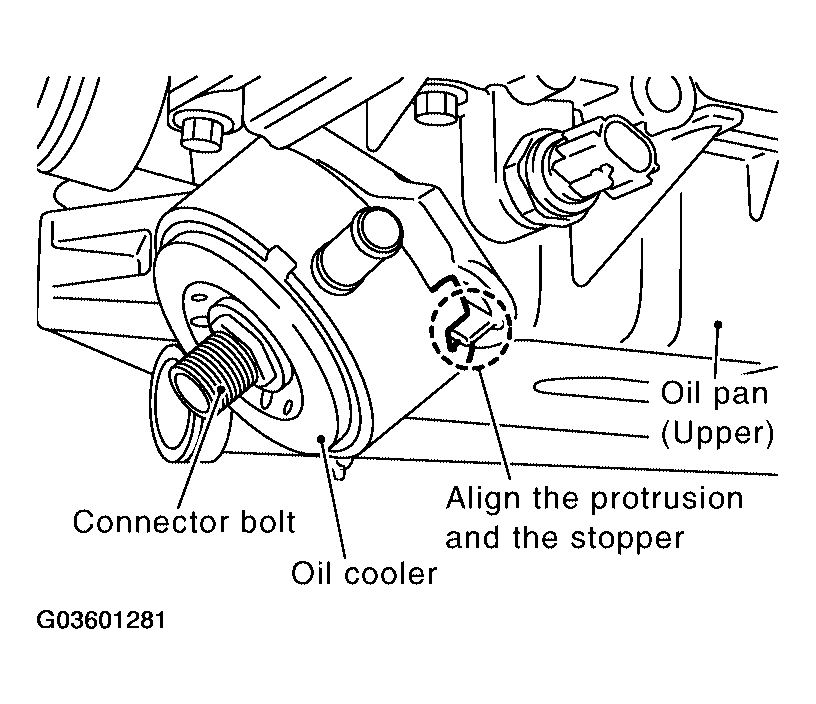

- Tighten the connecting bolt after aligning the stopper on the oil pan side with protrusion of the oil cooler.
