Check A/C Switch

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Press A/C switch with the blower control dial in any position except OFF.
A/C switch indicator will turn ON.
- Confirm that the compressor clutch engages (sound or visual inspection).

NOTE: Confirm that the compressor clutch is engaged (sound or visual inspection).

If NG, go to trouble diagnosis procedure for "Magnet Clutch Circuit ".

If OK, continue with next check.

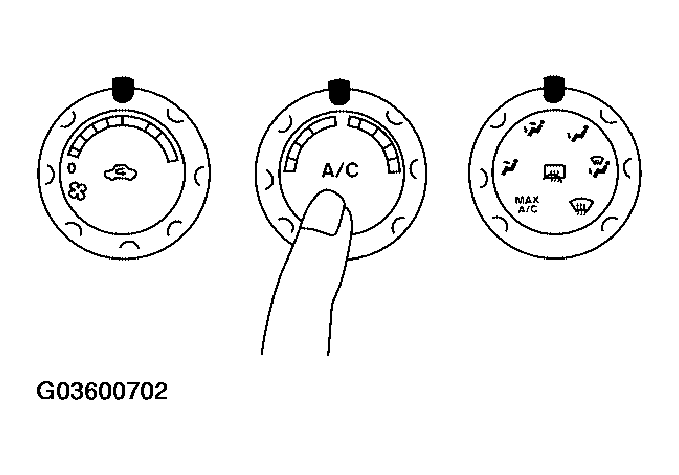

Fig 1: Pressing A/C Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
