Lower Instrument Panel LH: Removal

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove lower dash side finisher. Refer to "LOWER DASH SIDE FINISHER ".
  2. Remove front pillar lower finisher. Refer to "FRONT PILLAR LOWER FINISHER ".
  3. Remove screws using power tool, and remove lower instrument panel LH.
  4. Pull rearward to release clips, disconnect connectors, and remove lower instrument panel LH.

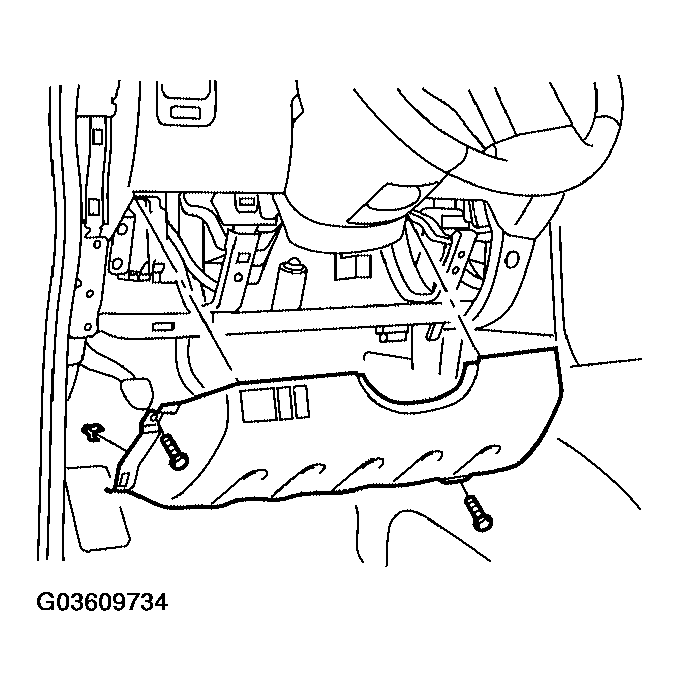

    Fig 1: Removing Lower Instrument Panel LH
    G03609734Courtesy of NISSAN MOTOR CO., U.S.A.
