Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the front wheels in the straight-ahead position.
  2. Remove the driver air bag module. Refer to "REMOVAL ".
  3. Disconnect the steering wheel switches.
  4. Remove the steering wheel center nut.
  5. Remove the steering wheel, using Tools.

    Tool number A: - (J-1859A)

    B: - (J-42578)

    CAUTION: Place a piece of tape across the spiral cable so it will not be rotated out of position.
  6. Inspect the steering wheel near the puller holes for damage. If damage is found, replace the steering wheel.
    • Remove the steering wheel rear cover and steering wheel switches, if required.

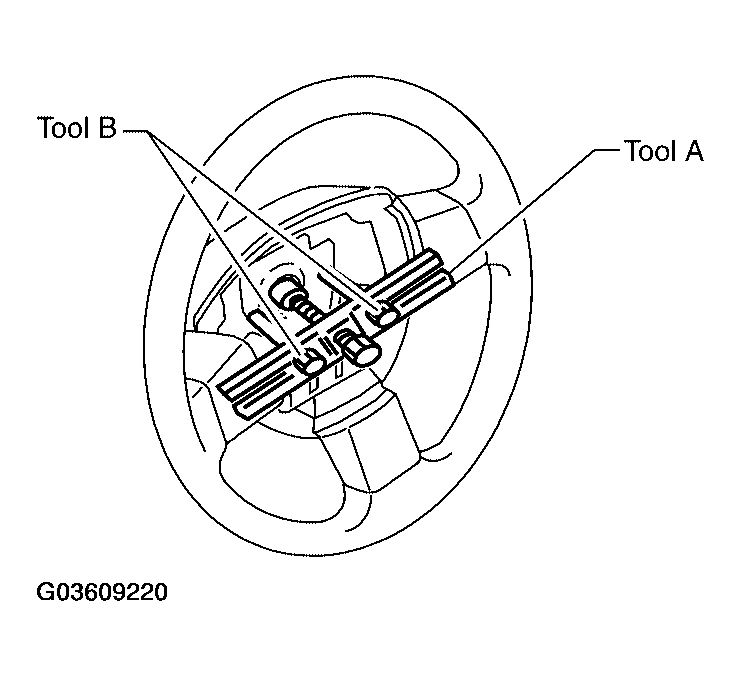

      Fig 1: Removing Steering Wheel Rear Cover And Steering Wheel Switches
      G03609220Courtesy of NISSAN MOTOR CO., U.S.A.
