Section 1553 (Power Steering System)
>>
Hydraulic Line
>>
Removal and Installation
Removal and Installation
WARNING:
This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
Refer to the following illustration for hydraulic line removal and installation.

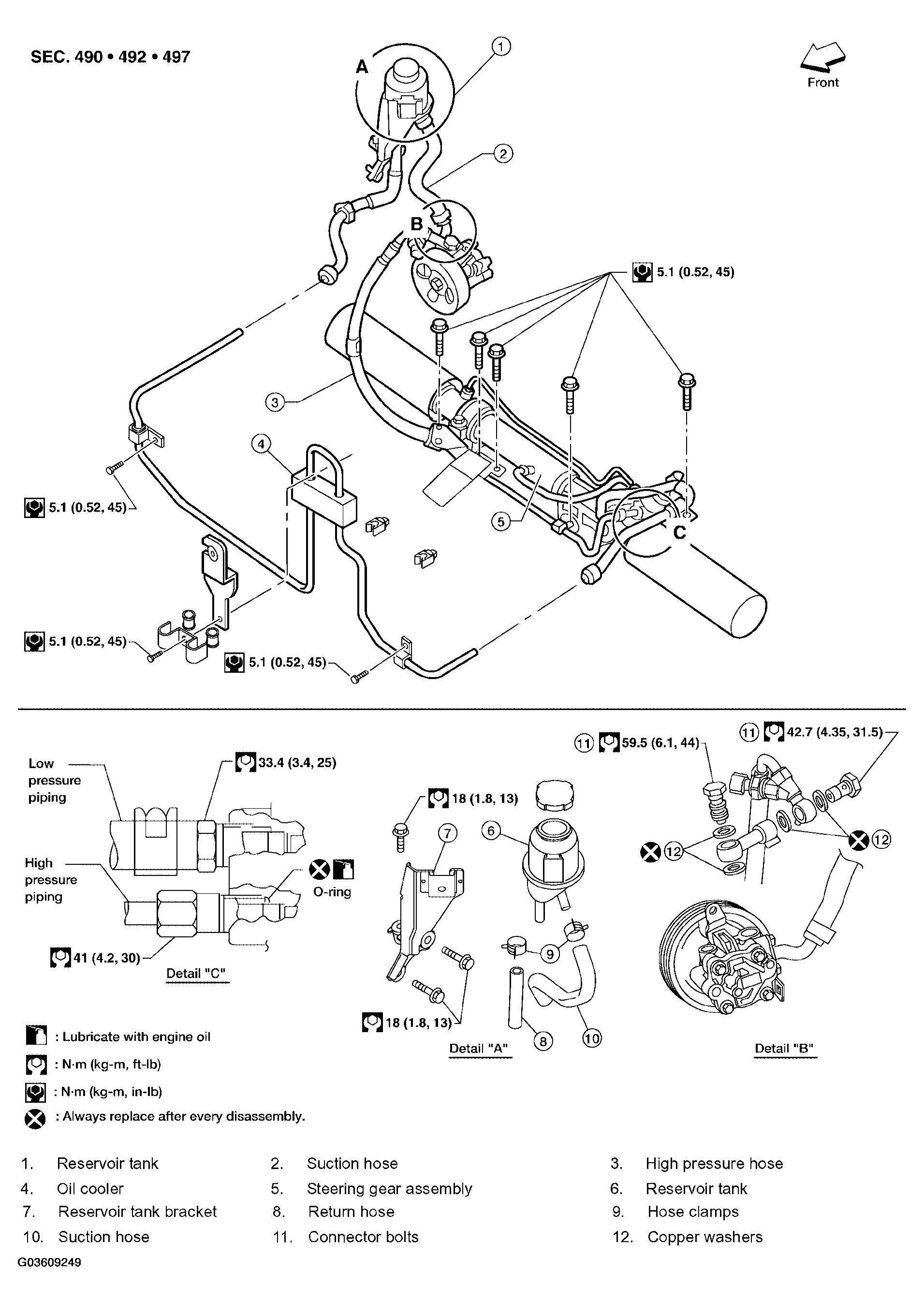

Fig 1: Hydraulic Line And Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
