Drive Belt Routing

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

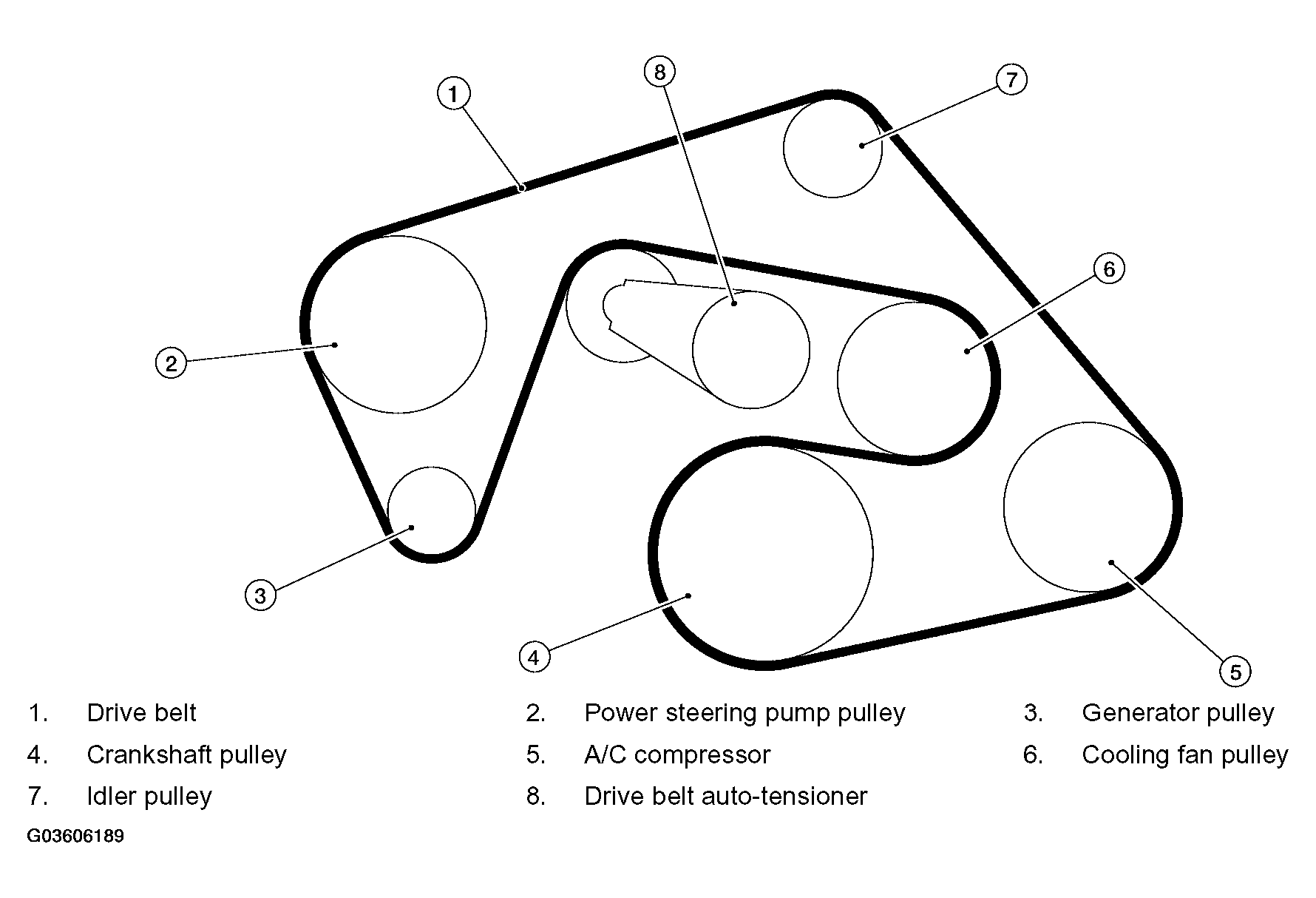

Fig 1: Checking Drive Belt Routing
G03606189Courtesy of NISSAN MOTOR CO., U.S.A.
WARNING: Be sure to perform the inspection when the engine is stopped.
  1. Remove the air duct and resonator assembly (inlet) when inspecting the drive belt.
  2. Visually check the entire drive belt for wear, damage or cracks.
