Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the lever and remove the door harness connector while removing tabs of door harness connector.

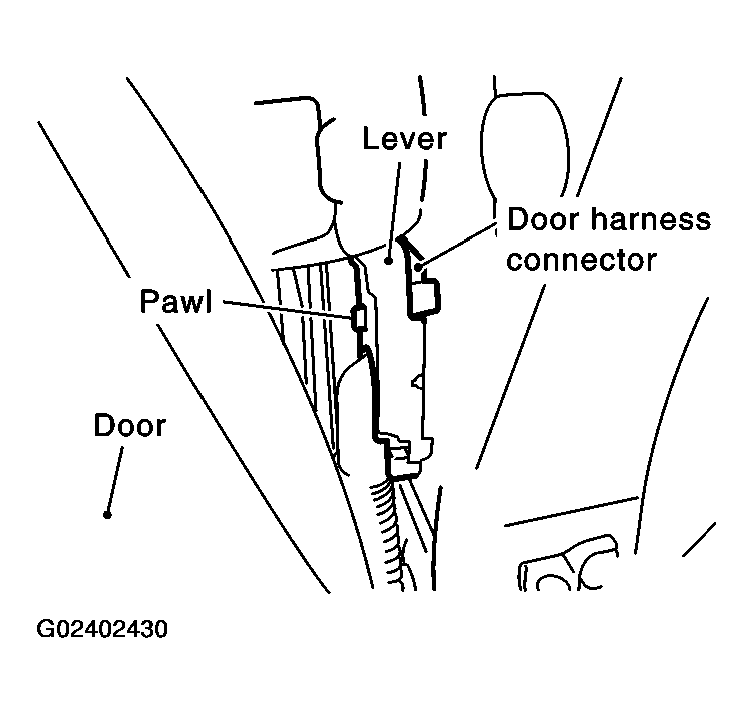

    Fig 1: Removing Door Harness Connector
    G02402430Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove the mounting bolts of the check link on the vehicle.

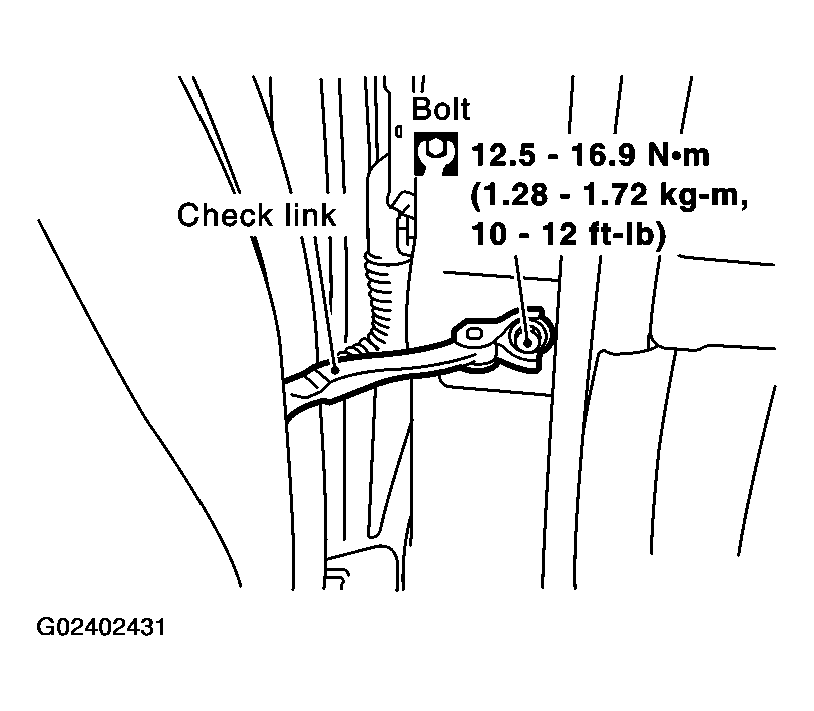

    Fig 2: Removing Mounting Bolts With Torque Specifications
    G02402431Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the door-side hinge mounting nuts, and remove the door assembly.

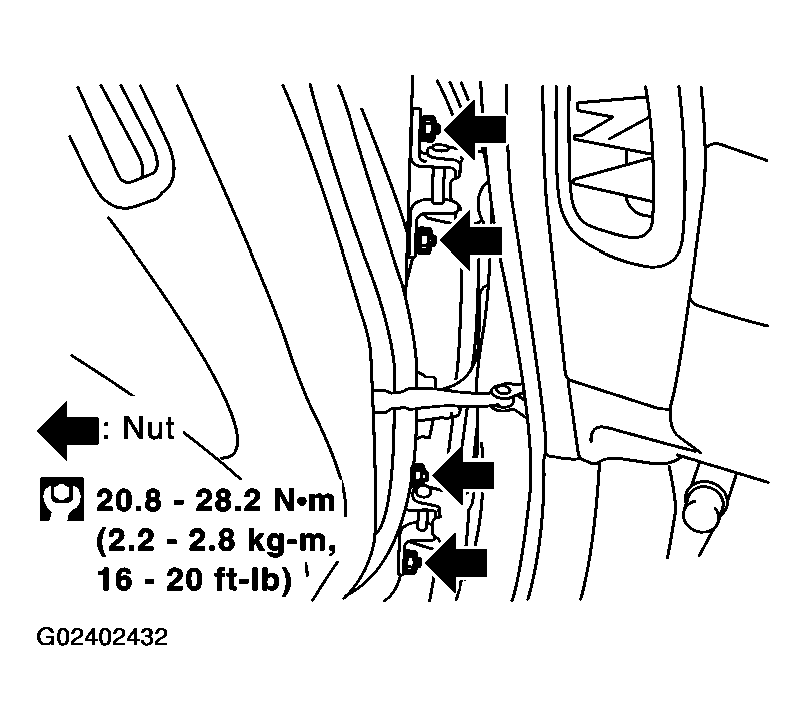

    Fig 3: Removing Door-Side Hinge Mounting Nuts & Door Assembly With Torque Specifications
    G02402432Courtesy of NISSAN MOTOR CO., U.S.A.
