Wiring Diagram - AUDIO - / BOSE System Without Navigation System

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

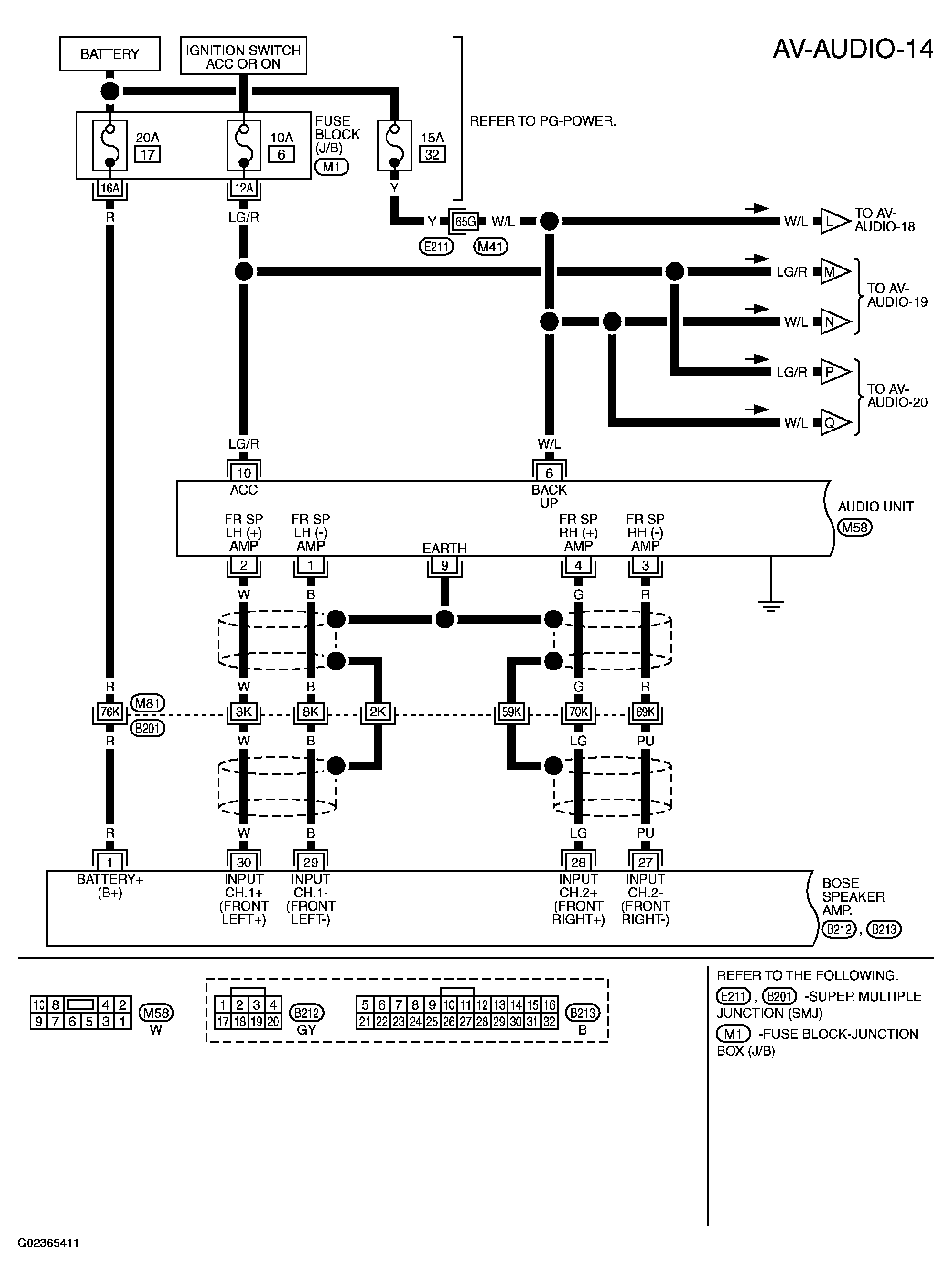

Fig 1: Wiring Diagram - AV-AUDIO-14

Courtesy of NISSAN MOTOR CO., U.S.A.

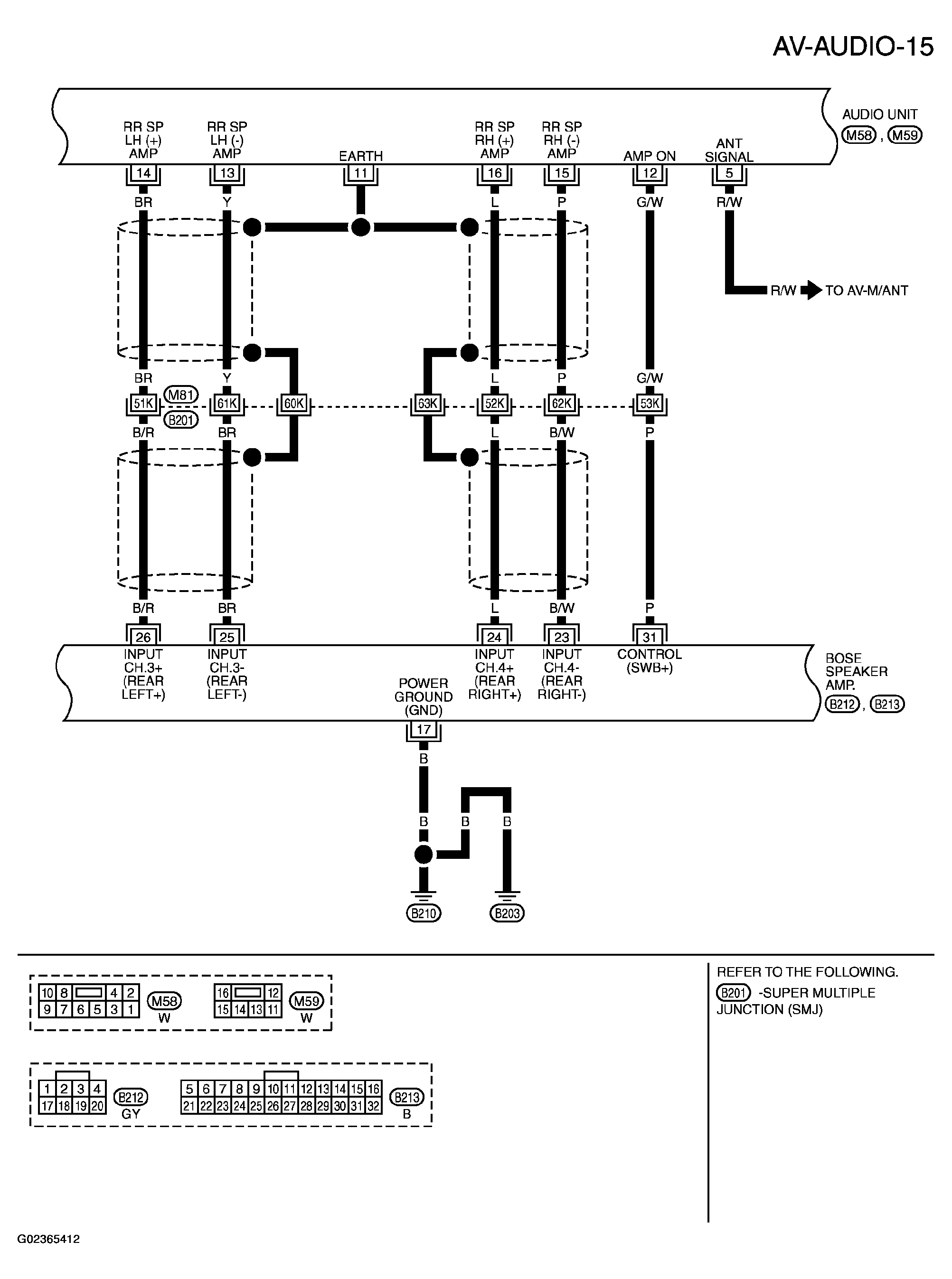

Fig 2: Wiring Diagram - AV-AUDIO-15

Courtesy of NISSAN MOTOR CO., U.S.A.

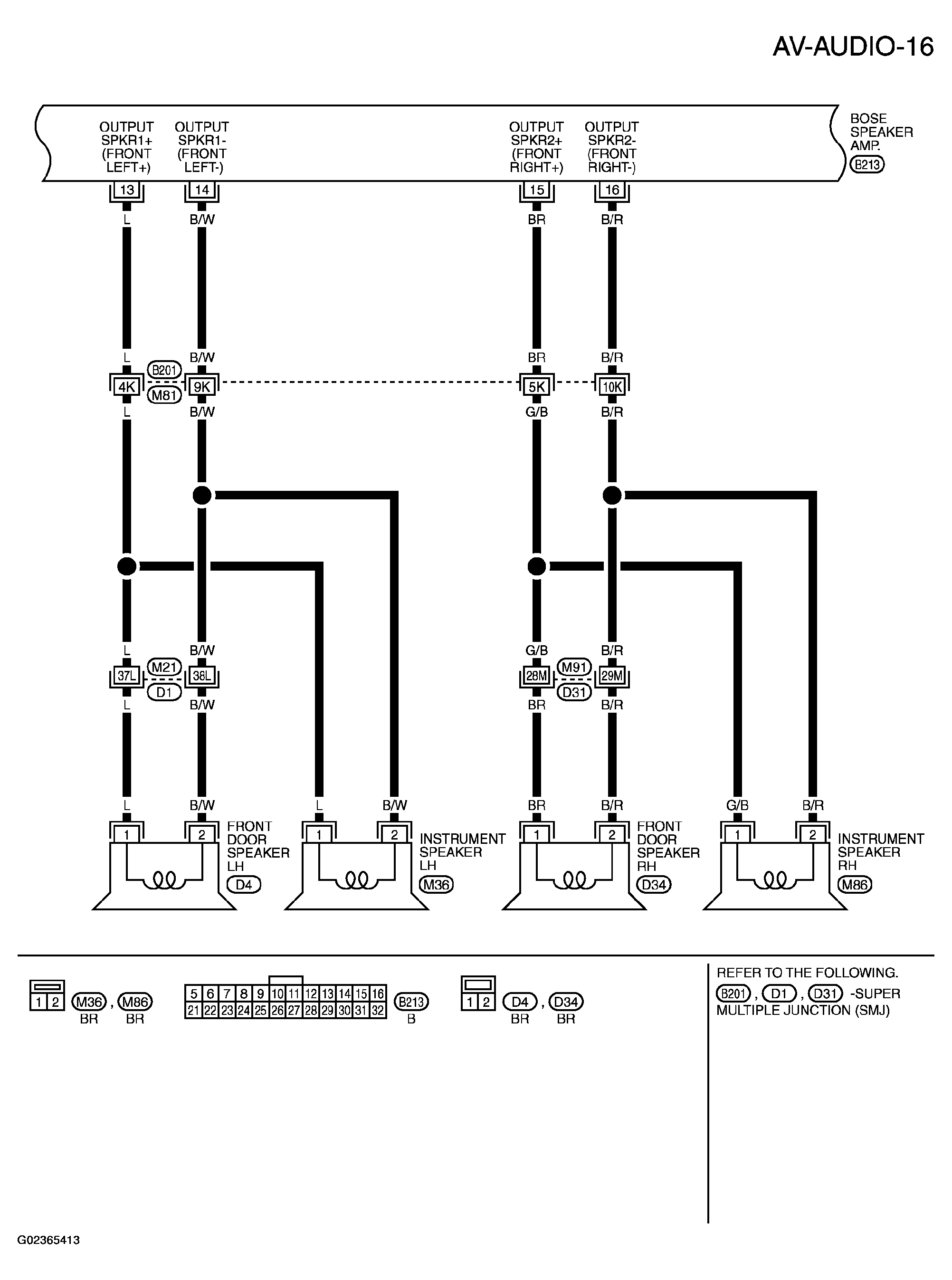

Fig 3: Wiring Diagram - AV-AUDIO-16

Courtesy of NISSAN MOTOR CO., U.S.A.

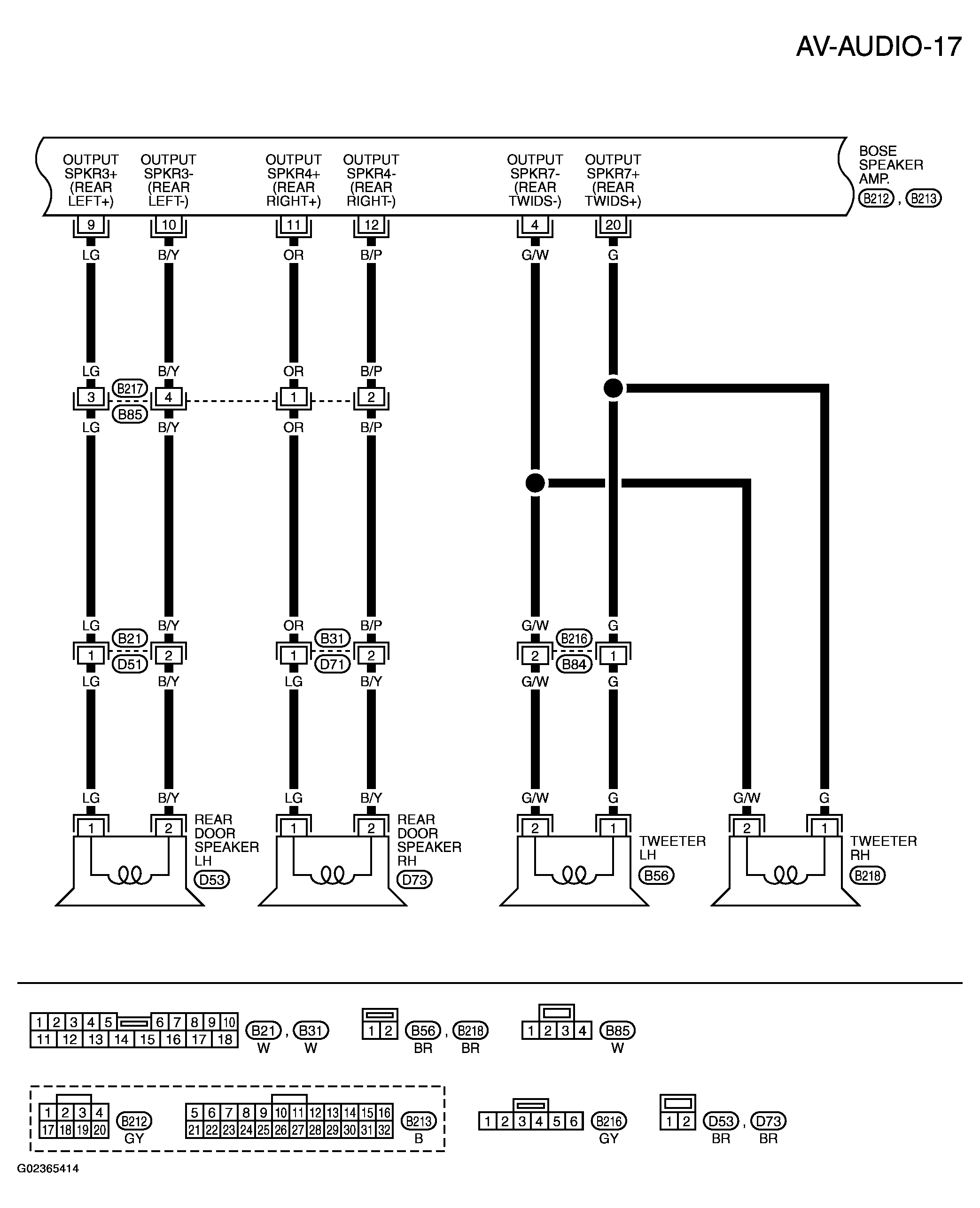

Fig 4: Wiring Diagram - AV-AUDIO-17

Courtesy of NISSAN MOTOR CO., U.S.A.

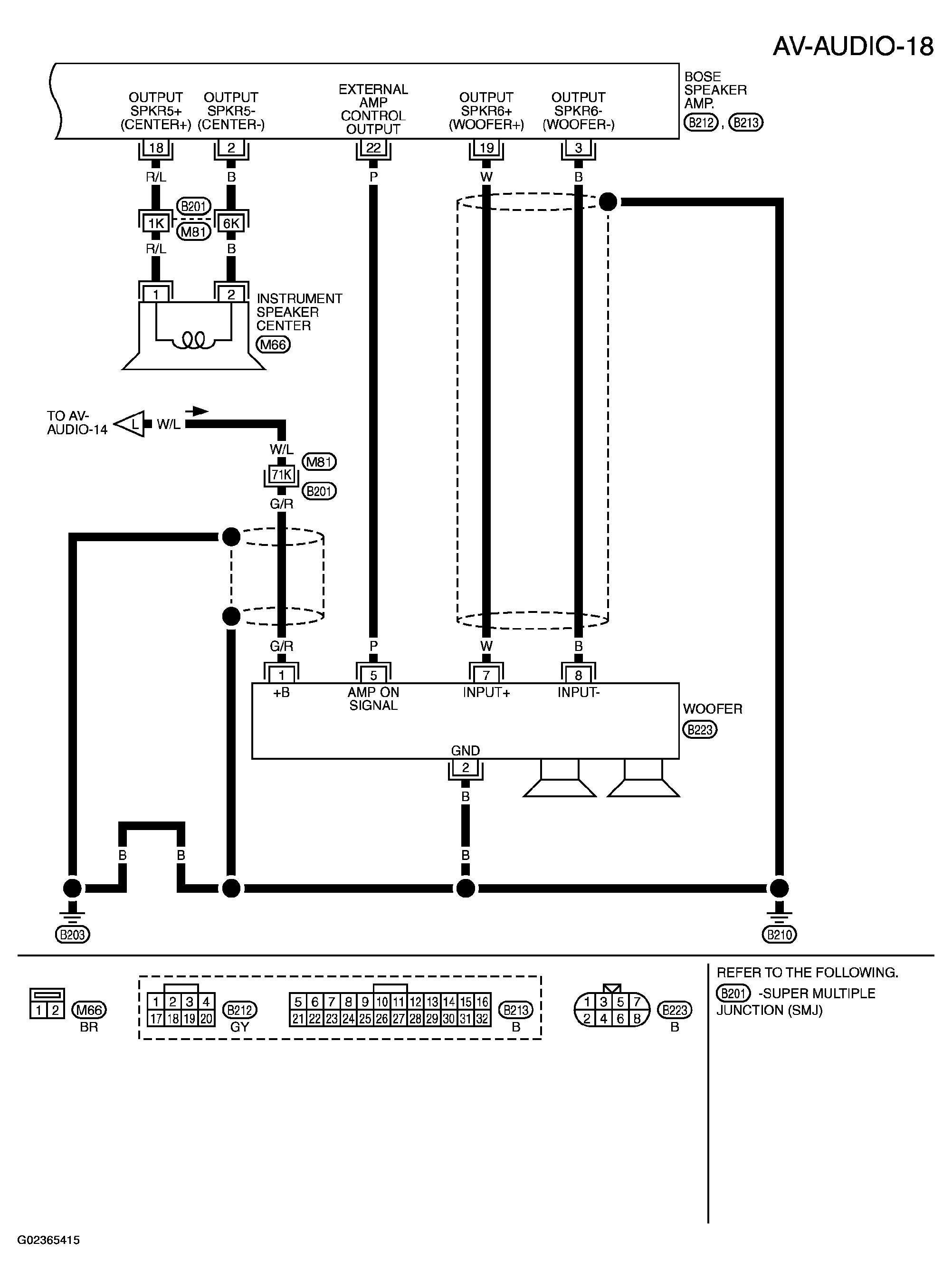

Fig 5: Wiring Diagram - AV-AUDIO-18

Courtesy of NISSAN MOTOR CO., U.S.A.

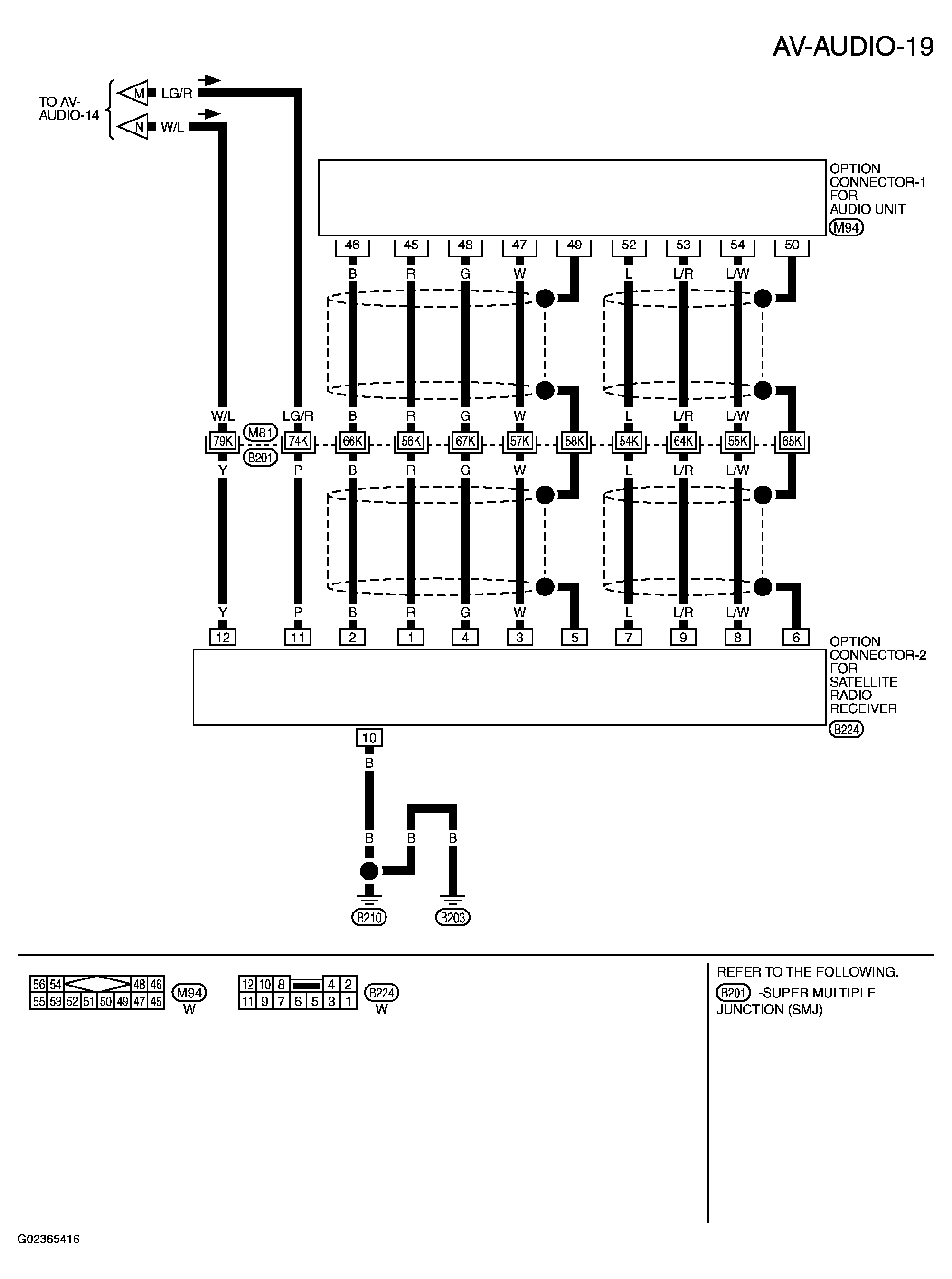

Fig 6: Wiring Diagram - AV-AUDIO-19

Courtesy of NISSAN MOTOR CO., U.S.A.

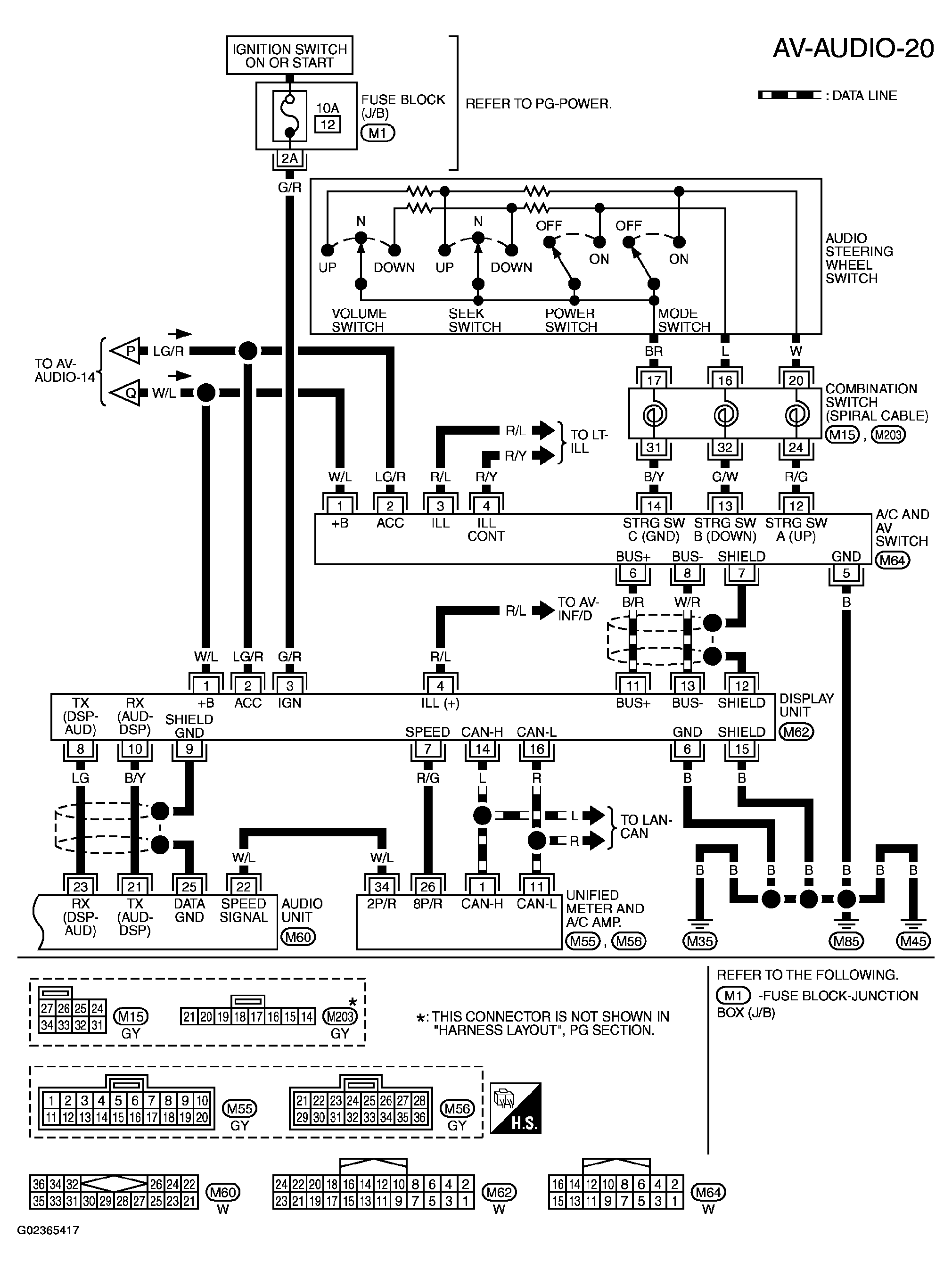

Fig 7: Wiring Diagram - AV-AUDIO-20

Courtesy of NISSAN MOTOR CO., U.S.A.
