Removal and Installation of Audio Unit: Removal

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform damper lock operation. Refer to "LOCKING CD AUTO-CHANGER MECHANISM  ".
  2. Remove cluster lid C. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove screws (6) with power tool, and remove audio unit with display and unified meter and A/C amp. from instrument panel.

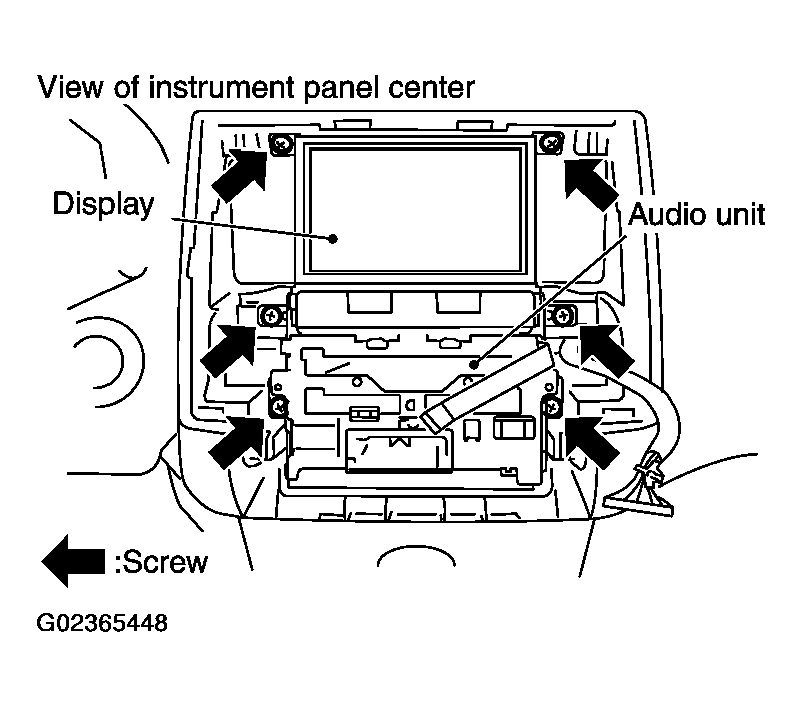

    Fig 1: Removing Screws With Power Tool
    G02365448Courtesy of NISSAN MOTOR CO., U.S.A.
