Bulb Replacement, Removal and Installation

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove combination meter. Refer to "REMOVAL AND INSTALLATION OF COMBINATION METER " in Driver Information article.
  2. Remove screw and remove NATS antenna amp.
  3. Pull out ring and turn bulb socket to left to release lock.
    1. Ignition key hole illumination: 12V - 0.8W
  4. Installation is the reverse order of removal.

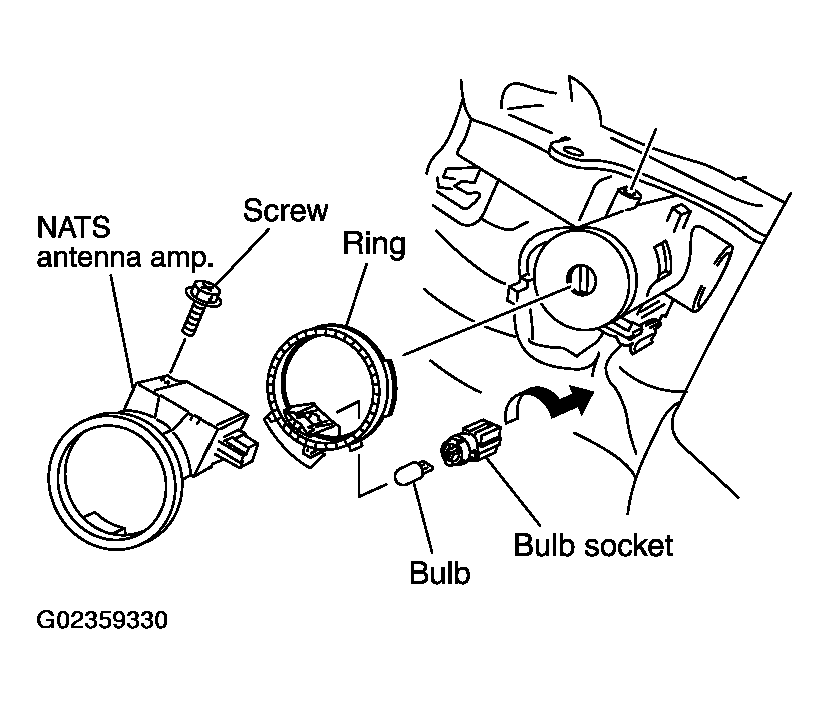

    Fig 1: Removing Screw And Remove NATS Antenna Amp
    G02359330Courtesy of NISSAN MOTOR CO., U.S.A.
