Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering column cover. Refer to "REMOVAL " in Instrument Panel article.
  2. While pressing pawls in direction as shown in the figure, pull lighting and turn signal switch toward driver door and disconnect from the base.

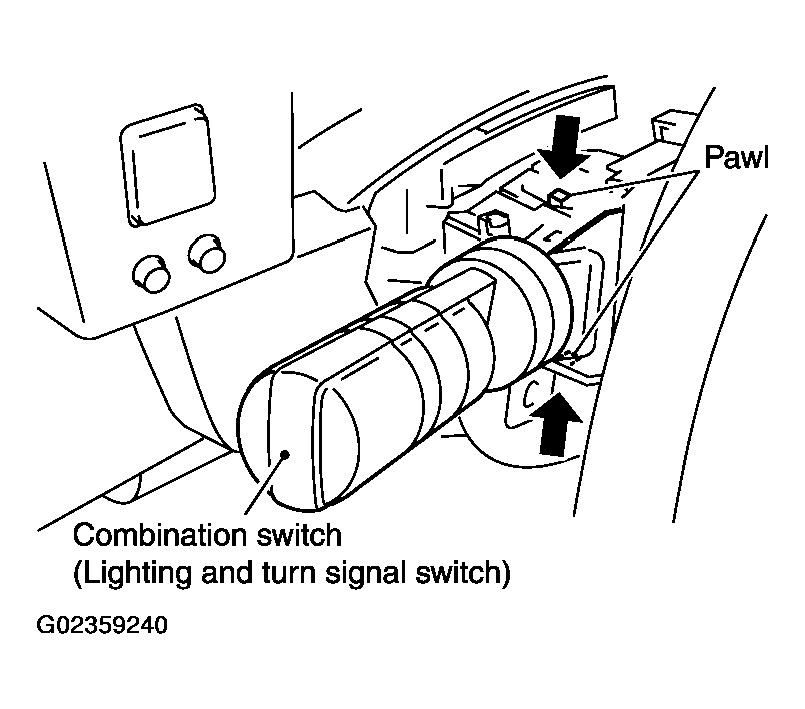

    Fig 1: Pulling Lighting And Turn Signal Switch
    G02359240Courtesy of NISSAN MOTOR CO., U.S.A.
