Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door finisher. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect the inside handle knob cable and lock knob cable from the back side of the front door finisher.

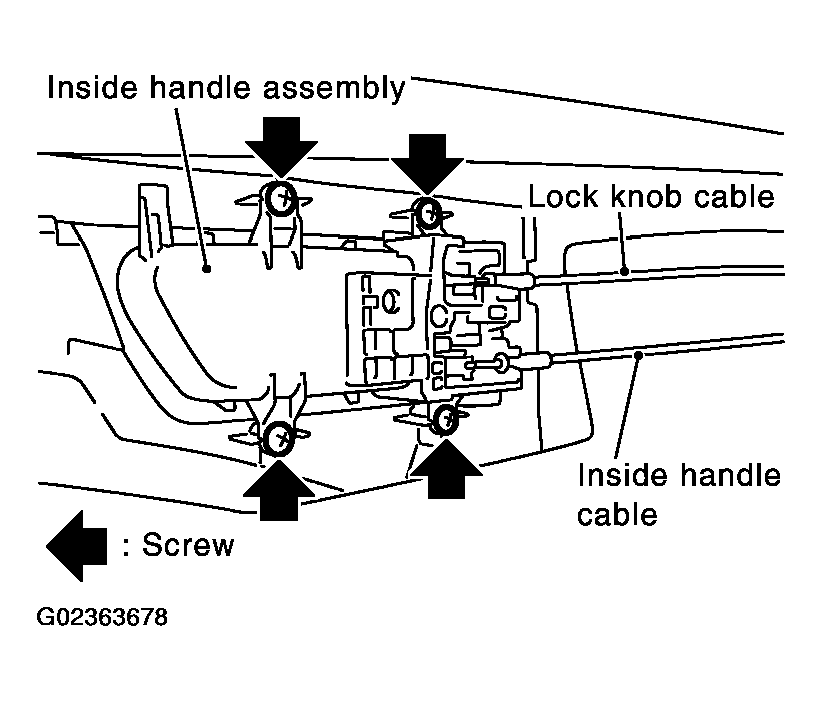

    Fig 1: Disconnecting Inside Handle Knob Cable And Lock Knob Cable From Back Side Of Front Door Finisher
    G02363678Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the front door glass and front door module assembly. Refer to "REMOVAL AND INSTALLATION ".
  4. Remove door side grommet, and remove door key cylinder assembly (driver side) and outside handle escutcheon (passenger side) TORX bolt (T30) from grommet hole.
    CAUTION: Do not forcibly remove the TORX bolt (T30).

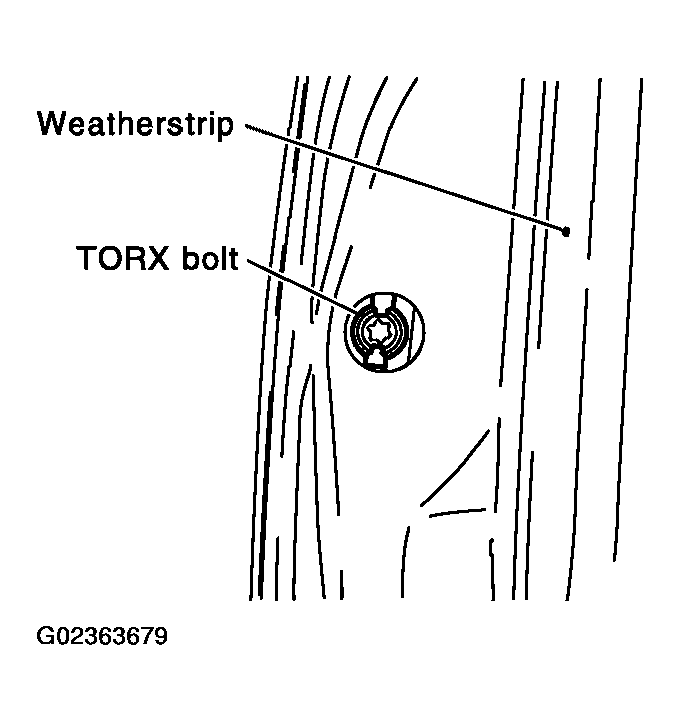

    Fig 2: Identifying TORX Bolt
    G02363679Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Reach to separate the key cylinder rod connection (on the handle).
  6. While pulling the outside handle, remove door key cylinder assembly (driver side) and outside handle escutcheon (passenger side).

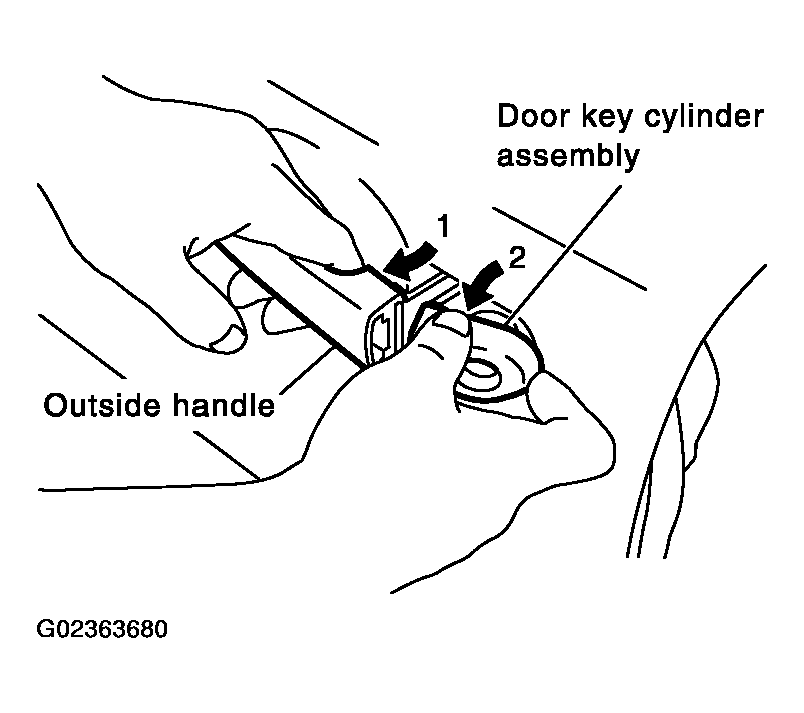

    Fig 3: Removing Door Key Cylinder Assembly
    G02363680Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Disconnect the door request switch connector. (Intelligent Key only)
  8. While pulling outside handle, slide toward rear of vehicle to remove outside handle.

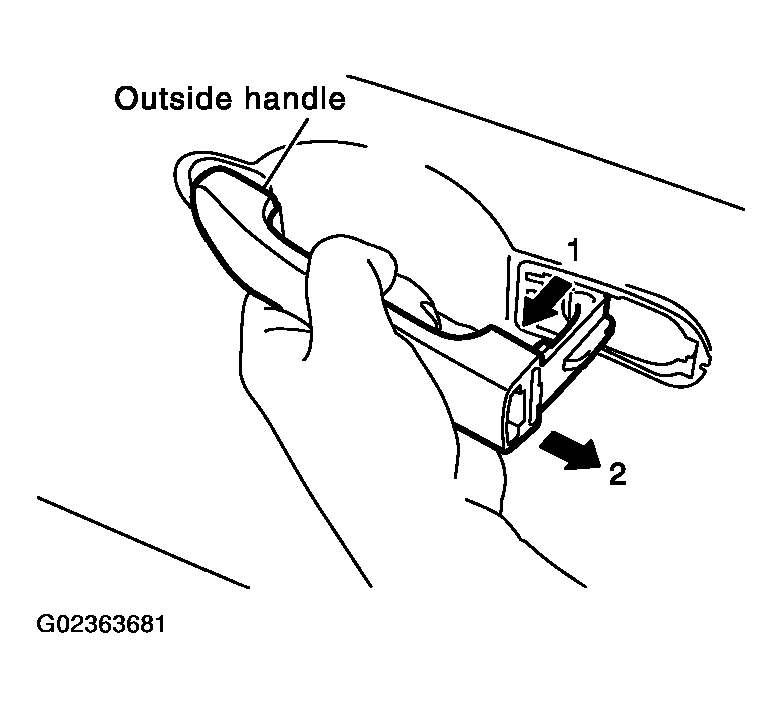

    Fig 4: Removing Outside Handle
    G02363681Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Remove the front gasket and rear gasket.

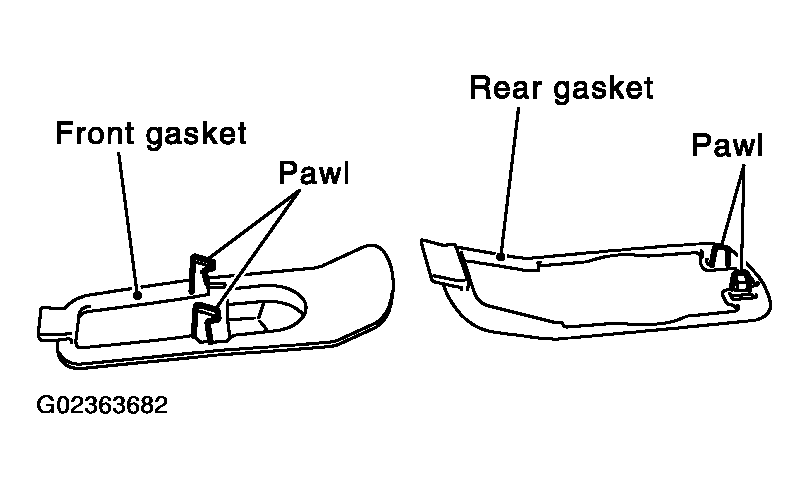

    Fig 5: Removing Front Gasket And Rear Gasket
    G02363682Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Remove the TORX bolt (T30) of the outside handle bracket.

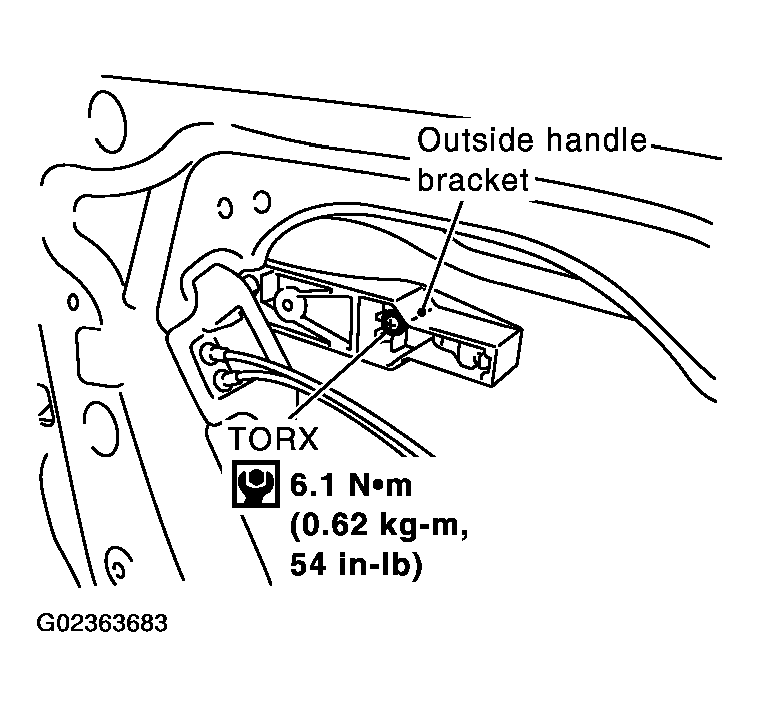

    Fig 6: Removing TORX Bolt (T30) Of Outside Handle Bracket With Torque Specifications
    G02363683Courtesy of NISSAN MOTOR CO., U.S.A.
  11. While pulling outside handle bracket, slide toward front of vehicle to remove outside handle bracket.

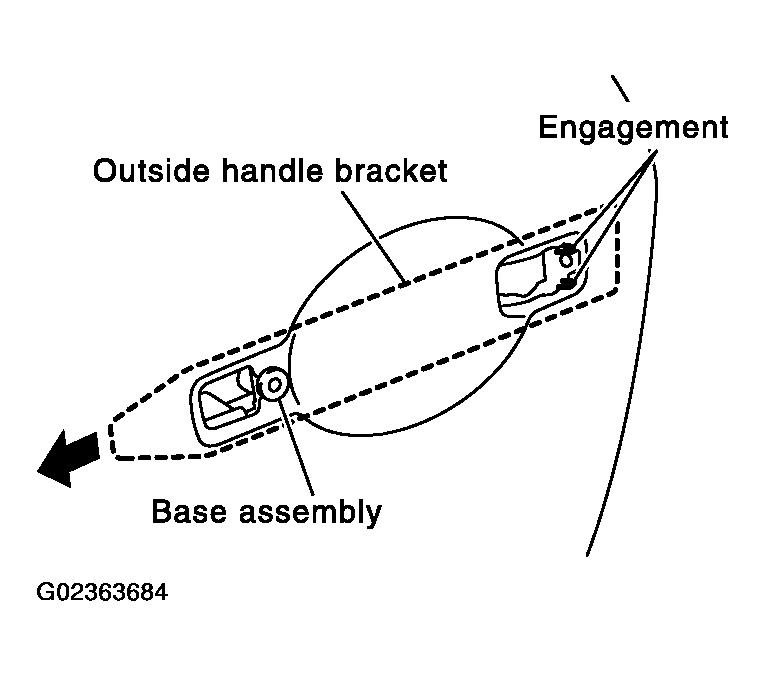

    Fig 7: Removing Outside Handle Bracket
    G02363684Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Reach to separate outside handle cable connection.

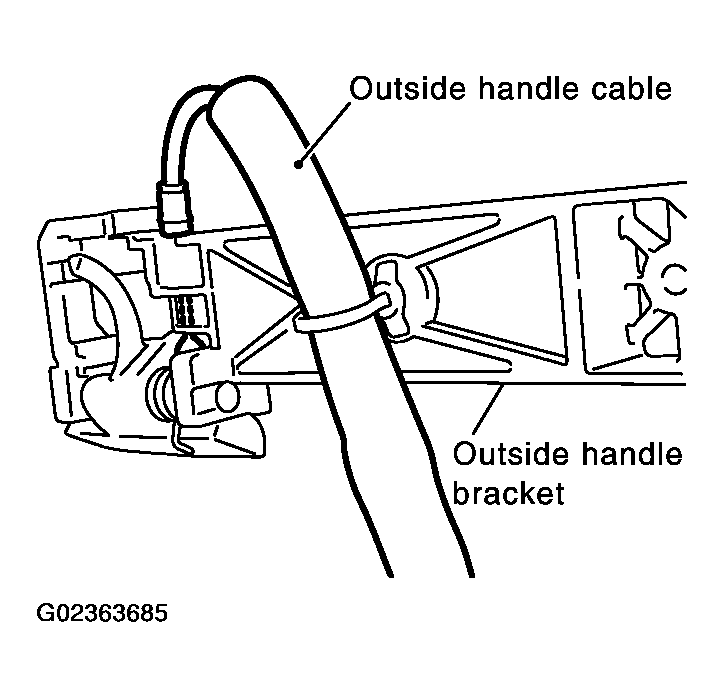

    Fig 8: Separating Outside Handle Cable Connection
    G02363685Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Remove the TORX bolts (T30) of door lock assembly.

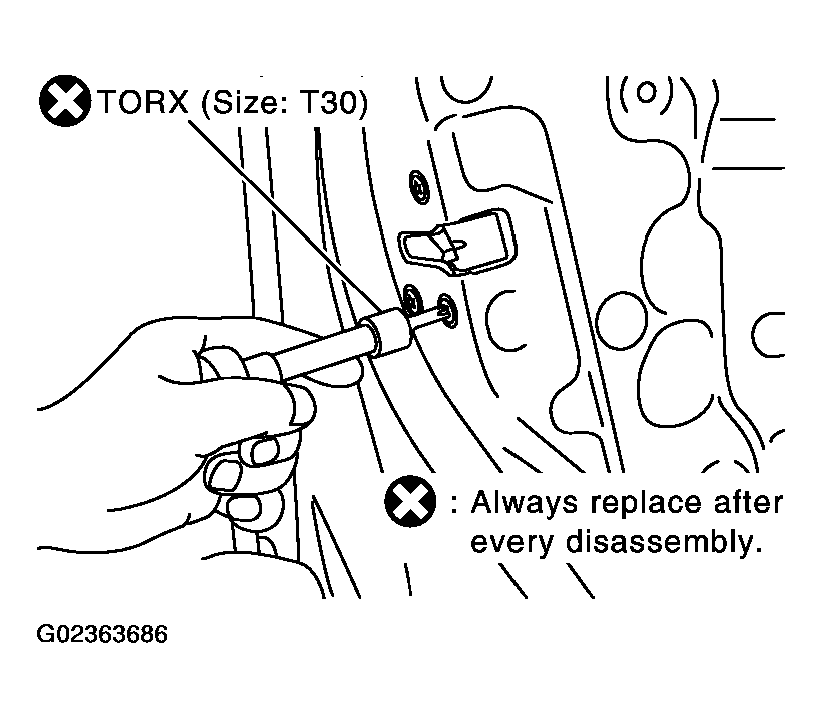

    Fig 9: Removing TORX Bolts (T30) Of Door Lock Assembly
    G02363686Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Disconnect the door lock actuator connector and remove door lock assembly.
