Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 minutes.
  1. Disconnect each harness connector for the air bag module and seat belt pre-tensioner.
  2. Remove center console. Refer to "REMOVAL AND INSTALLATION ".
  3. Disconnect diagnosis sensor unit connector.
  4. Remove special bolts from the diagnosis sensor unit.
CAUTION:
  • Do not use old bolts. Replace with new ones.
  • Check diagnosis sensor unit bracket to ensure it is free of deformities, dents, cracks or rust. If it shows any visible things of damage, replace with new one.
  • Replace diagnosis sensor unit if it has been dropped or sustained an impact.

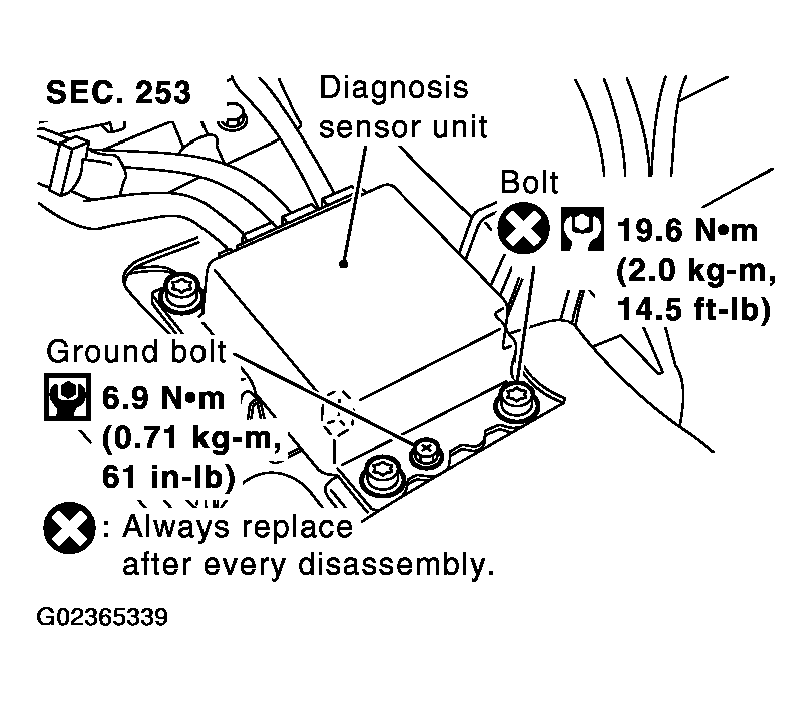

    Fig 1: Disconnecting Diagnosis Sensor Unit Connector With Torque Specifications
    G02365339Courtesy of NISSAN MOTOR CO., U.S.A.
