Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 minutes.
  1. Remove front grille. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove crash zone sensor connector.
  3. Remove crash zone sensor fixing nuts.

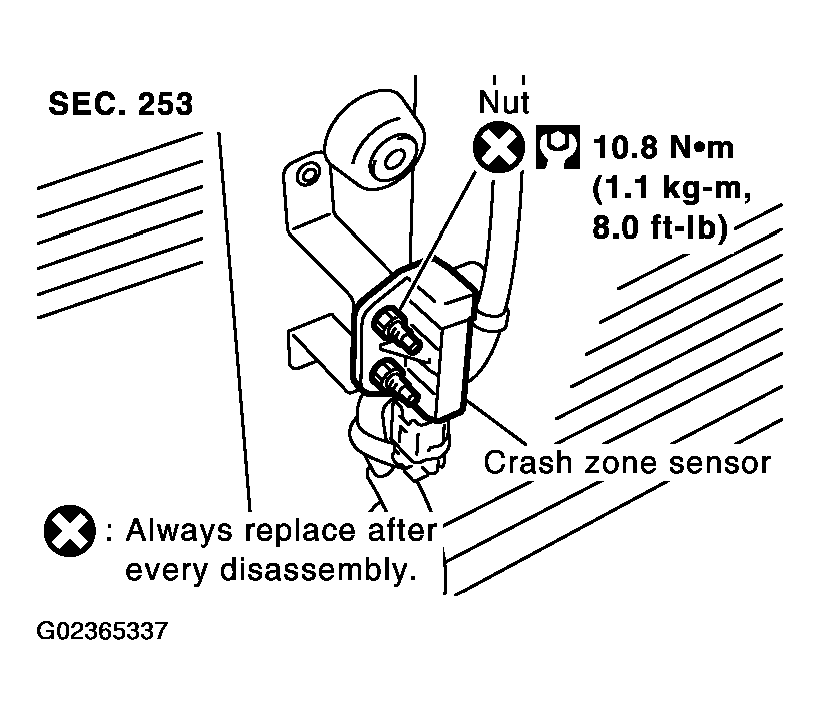

    Fig 1: Removing Crash Zone Sensor Fixing Nuts With Torque Specifications
    G02365337Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Replace crash zone sensor if it has been dropped or sustained an impact.
  • Do not disassemble crash zone sensor.
