Removal and Installation

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

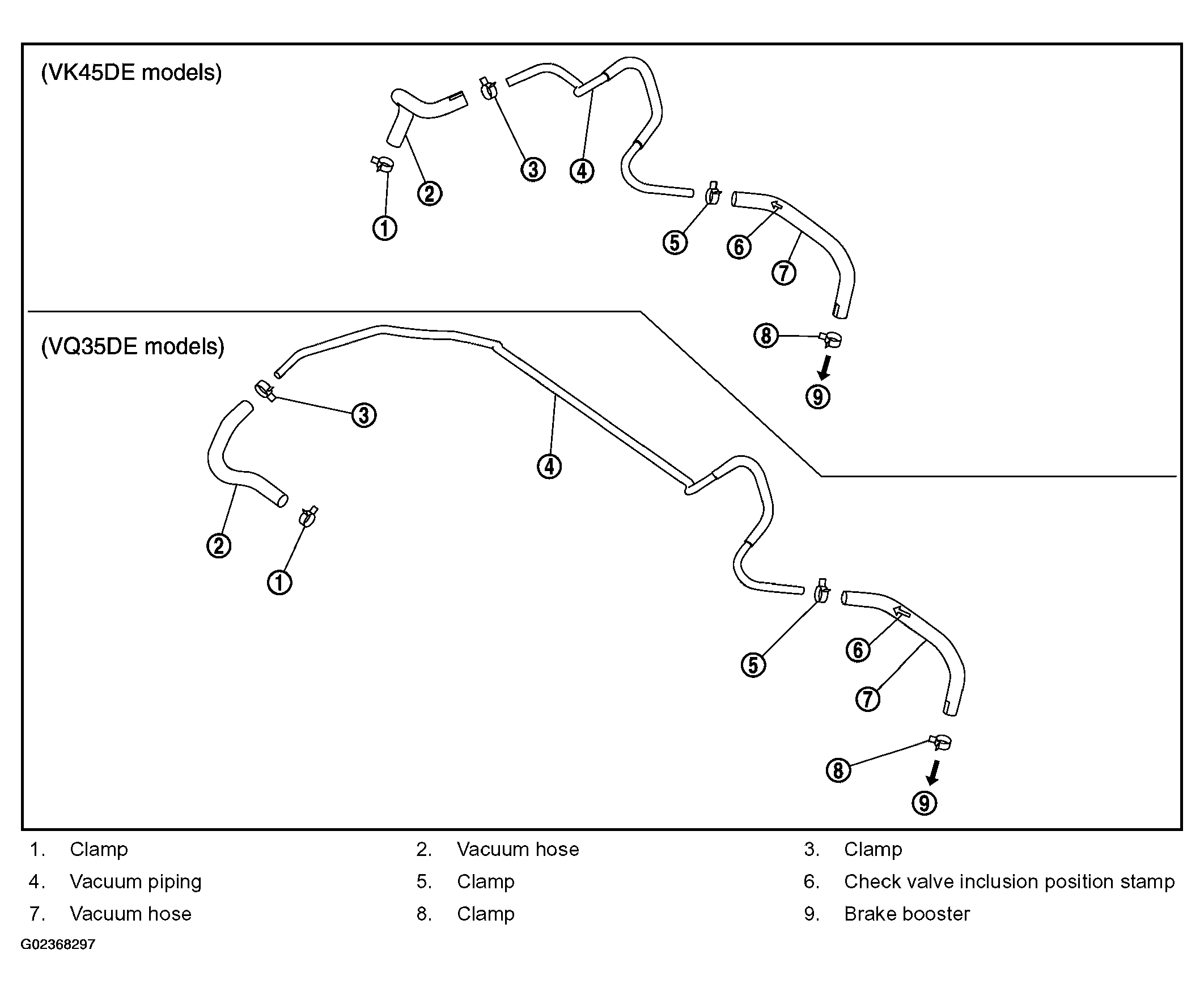

Fig 1: Identifying Vacuum Lines Components

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Because vacuum hose contains a check valve, it must be installed in the correct direction. Refer to the stamp or label to confirm correct installation. The brake booster will not operate normally if hose is installed in the wrong direction.
Insert vacuum hose for at least 24 mm (0.94 in).
Do not use lubricating oil during assembly.

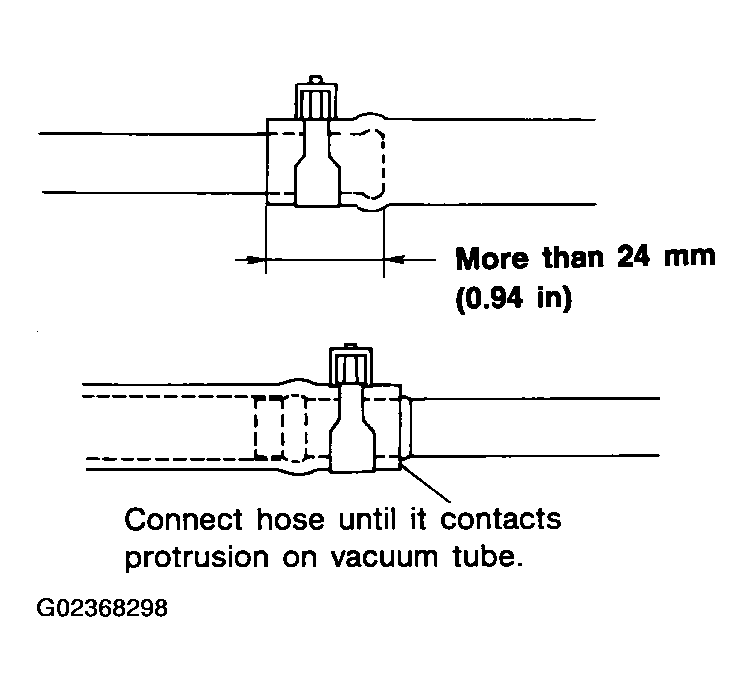

Fig 2: Installing Vacuum Hose

Courtesy of NISSAN MOTOR CO., U.S.A.
