Removal and Installation of Brake Pad: Installation

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach inner shim and shim cover to inner pad, and outer shim to outer pad.
  2. Push piston in so that pad is firmly installed and mount cylinder body to torque member.
    NOTE: Using a disc brake piston tool (commercial service tool), makes it easier to push in piston.
    CAUTION: By pushing in piston, brake fluid returns to master cylinder reservoir tank. Watch the level of the surface of reservoir tank.
  3. Attach pat retainer to torque member.

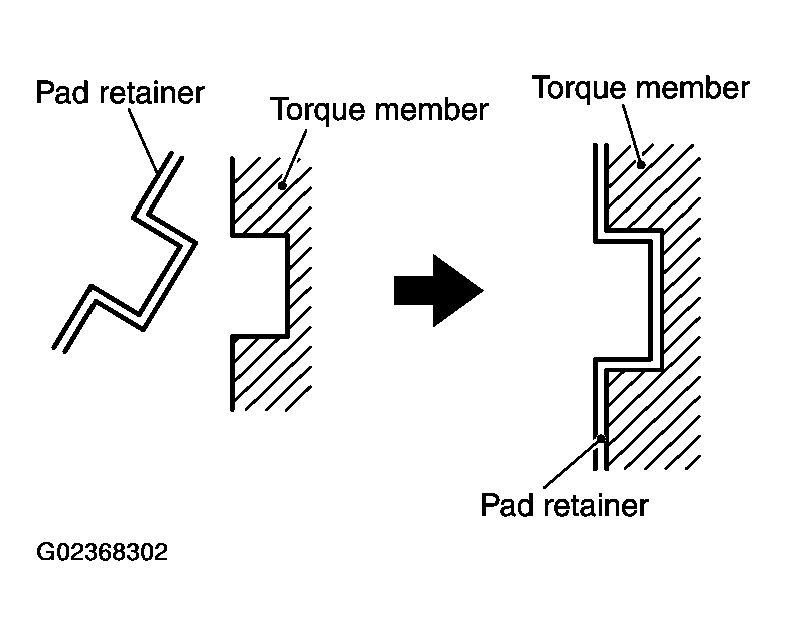

    CAUTION: When attaching pad retainer, attach it firmly so that it does not float up higher than torque member, as shown in the figure.
  4. Install lower sliding pin bolt and tighten it to the specified torque.
  5. Check brake for drag.
  6. Attach tires to the vehicle.
    Fig 1: Identifying Pad Wear Sensor And Pad Return Lever
    G02368302Courtesy of NISSAN MOTOR CO., U.S.A.
