Fluid Leakage And Fluid Level

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check fluid level from filler plug mounting hole as shown in the figure.
  2. Before installing filler plug, set a new gasket. Install filler plug on transfer and tighten to the specified torque. Refer to "COMPONENTS ".
    CAUTION: Do not reuse gasket.

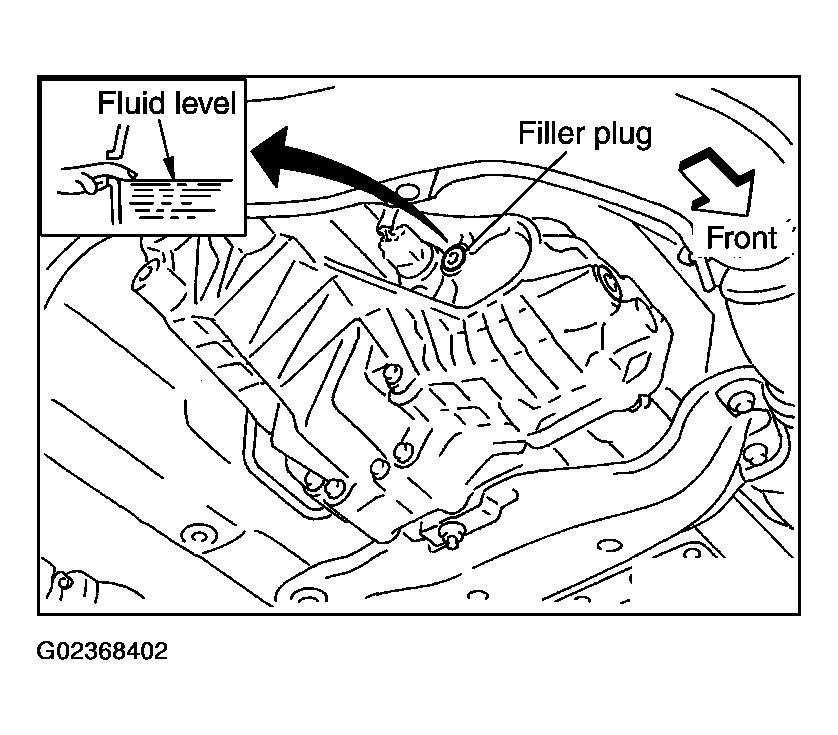

    Fig 1: Checking Fluid Level From Filler Plug Mounting Hole
    G02368402Courtesy of NISSAN MOTOR CO., U.S.A.
