Front Drive Shaft and Drive Chain

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Separate front case and rear case. Refer to "FRONT CASE AND REAR CASE ".
  2. Remove drive chain and front drive shaft while tapping front drive shaft with plastic hammer.
    CAUTION: Be careful not to tap drive chain.

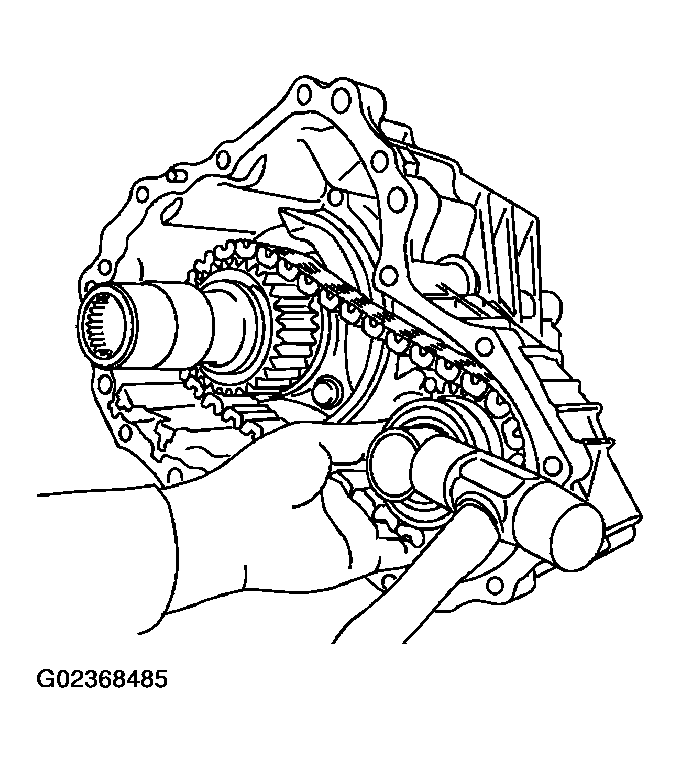

    Fig 1: Removing Drive Chain And Front Drive Shaft
    G02368485Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove front drive shaft front bearing, using drift and puller.
    1. Tool number: ST31214000 (J-25269-B)

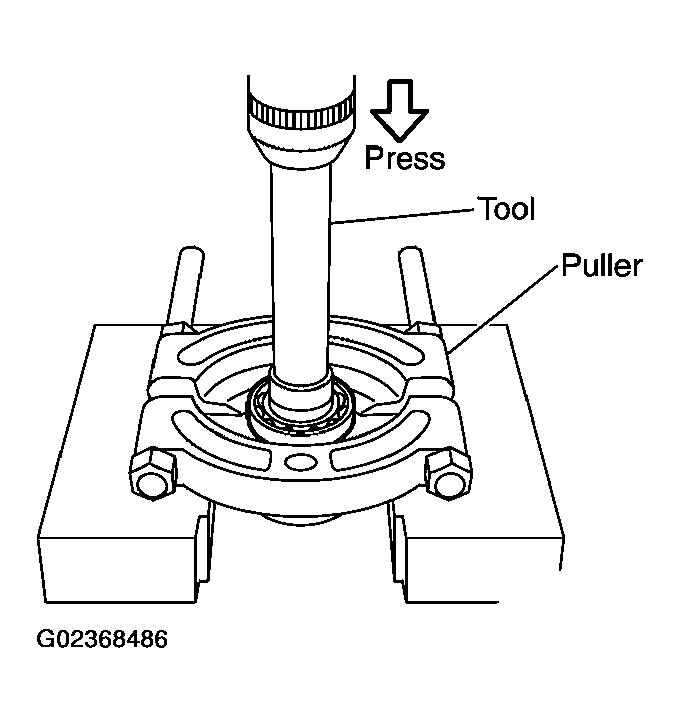

    Fig 2: Removing Front Drive Shaft Front Bearing, Using Drift And Puller
    G02368486Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove front drive shaft rear bearing, using drift and puller.
    1. Tool number: ST31214000 (J-25269-B)

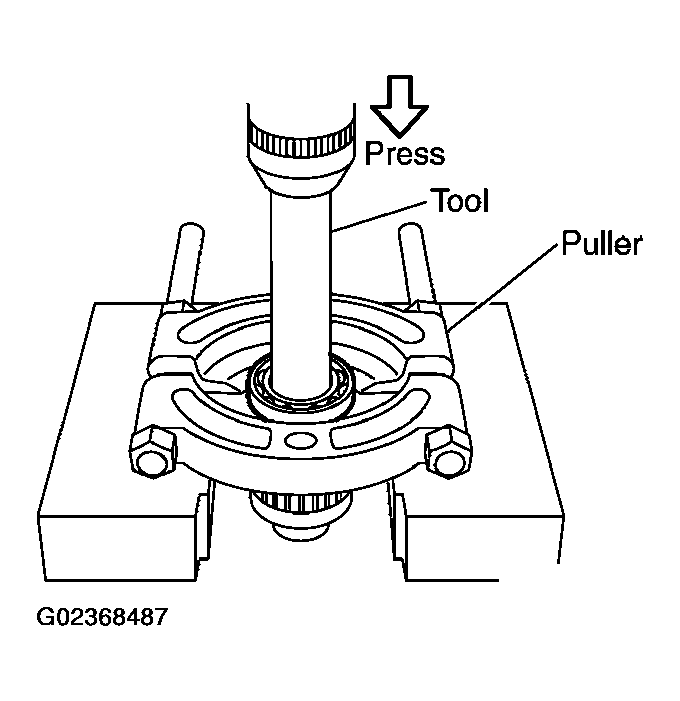

    Fig 3: Removing Front Drive Shaft Rear Bearing, Using Drift And Puller
    G02368487Courtesy of NISSAN MOTOR CO., U.S.A.
