Front Drive Shaft and Drive Chain

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install front drive shaft front bearing, using drifts.
    1. Tool number: ST33200000 (J-26082)

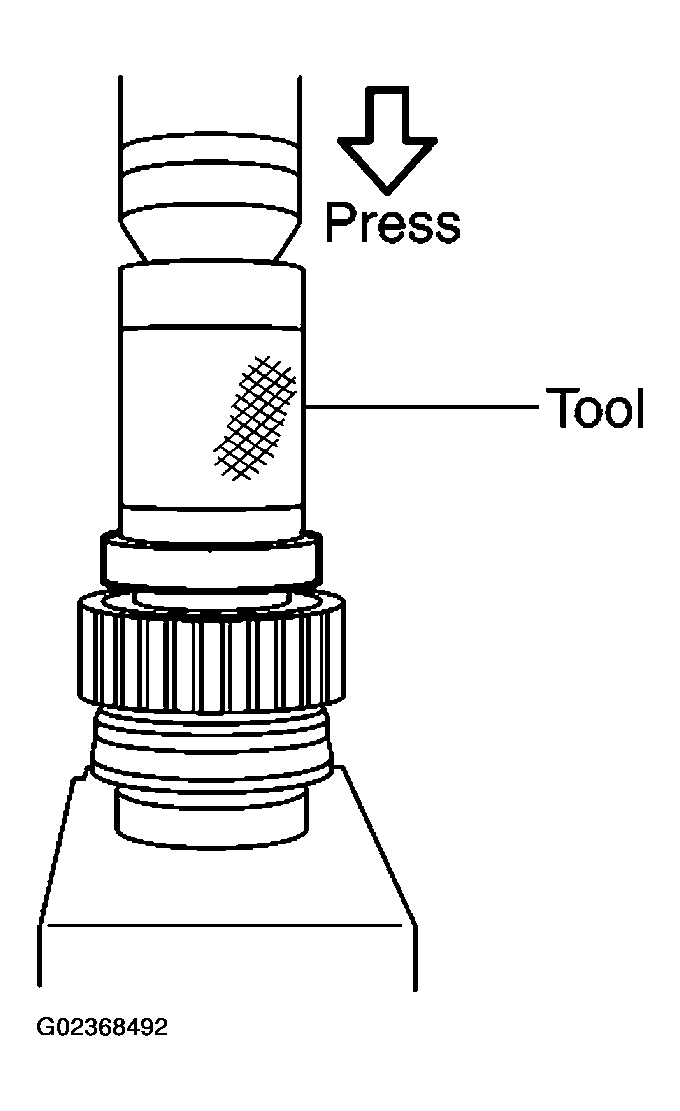

    Fig 1: Installing Front Drive Shaft Front Bearing, Using Drifts
    G02368492Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install front drive shaft rear bearing, using a drift.
    1. Tool number: KV38104010 ( - )

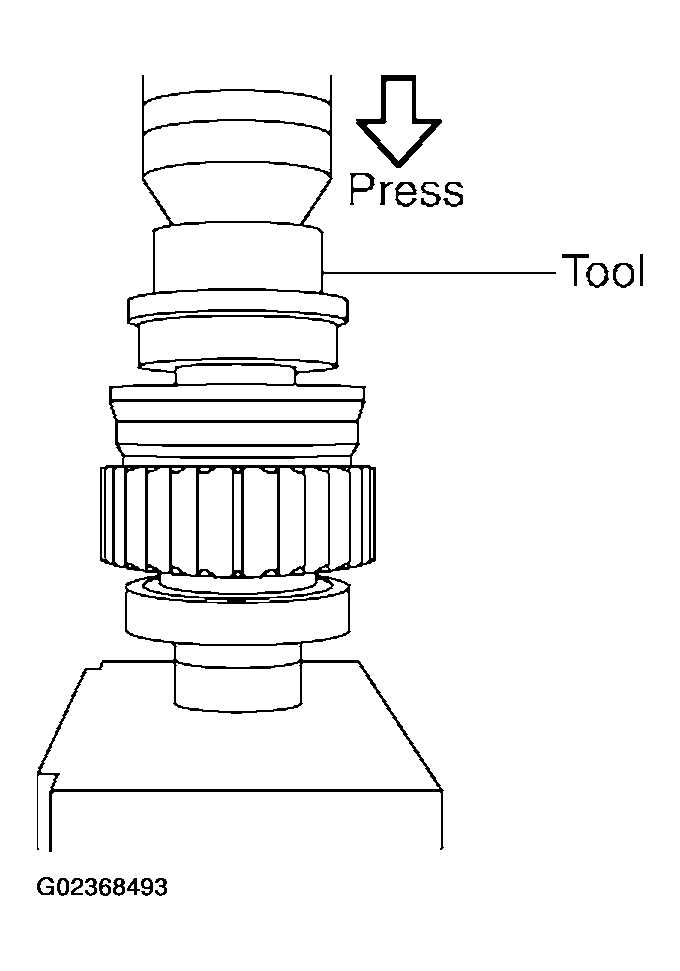

    Fig 2: Installing Front Drive Shaft Rear Bearing, Using A Drift
    G02368493Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install drive chain to front drive shaft.
    CAUTION: Identification mark of drive chain should be in the side of front bearing of front drive shaft.

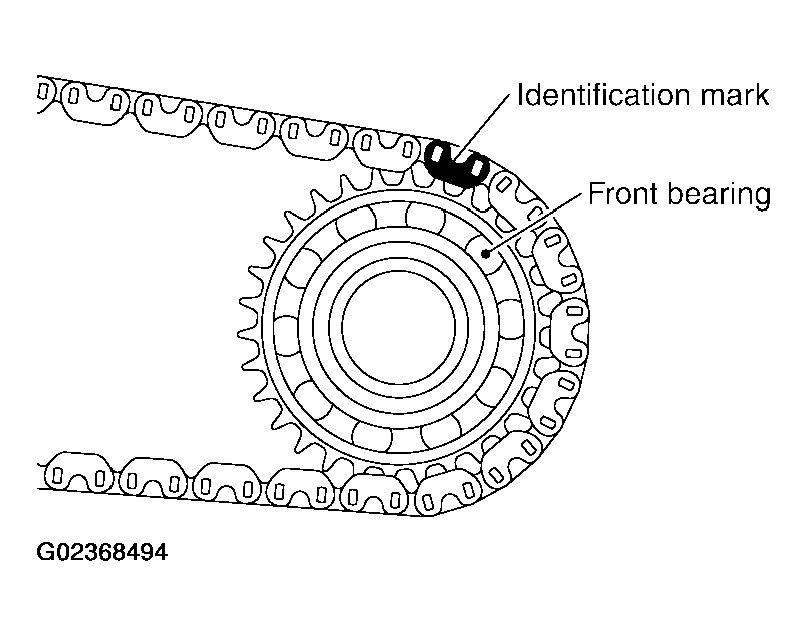

    Fig 3: Installing Drive Chain To Front Drive Shaft
    G02368494Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install drive chain to mainshaft, and then install tap front drive shaft with plastic hammer. Press-fit rear bearing of front drive shaft to rear case.
    CAUTION: Be careful not to tap drive chain.
  5. Install front case to rear case. Refer to "FRONT CASE AND REAR CASE ".

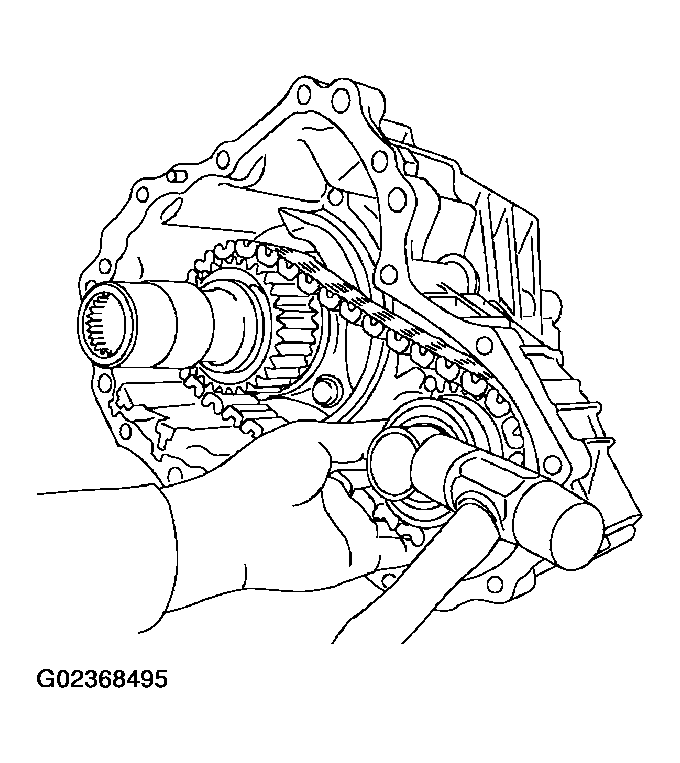

    Fig 4: Installing Front Case To Rear Case
    G02368495Courtesy of NISSAN MOTOR CO., U.S.A.
