Consult-II Setting Procedure

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

For details, refer to the separate "CONSULT-II Operations Manual".

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located in instrument lower driver panel.

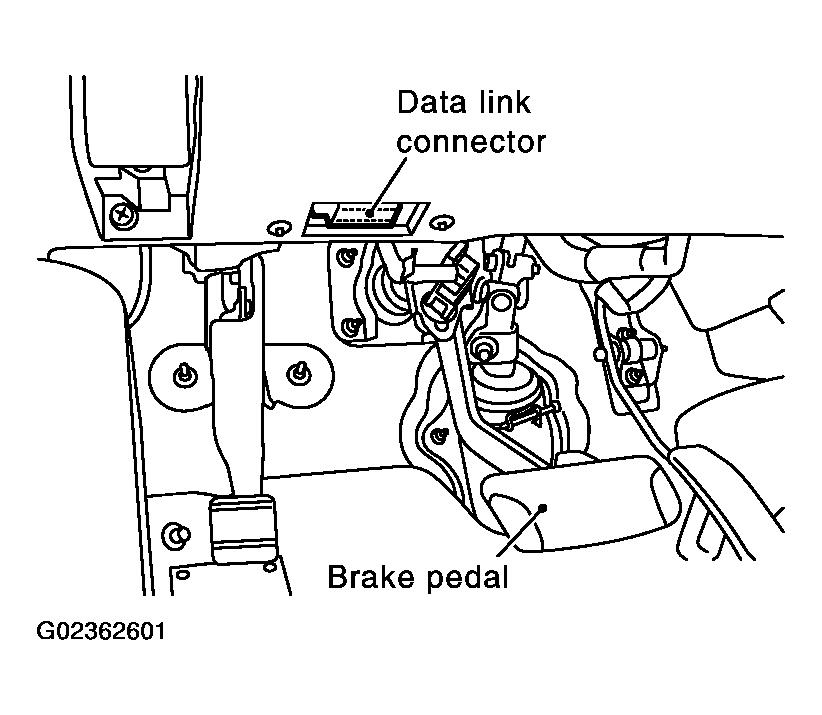

Fig 1: Connecting CONSULT-II And CONSULT-II Converter To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START (NISSAN BASED VHCL)".

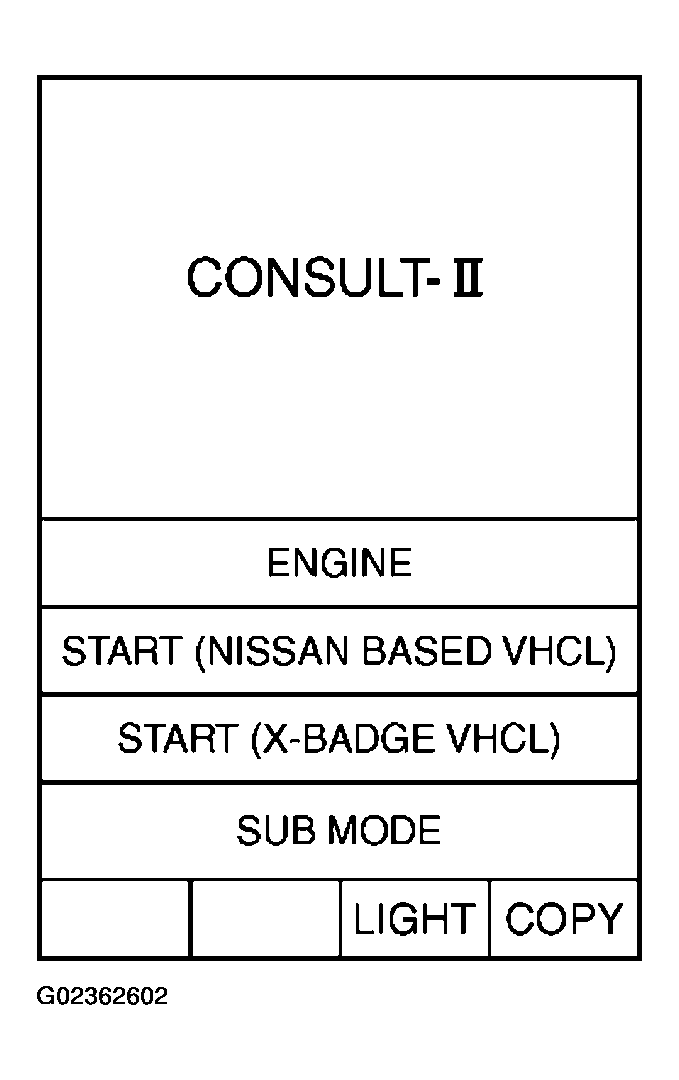

Fig 2: Identifying Display - Consult II
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "A/T".
If "A/T" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

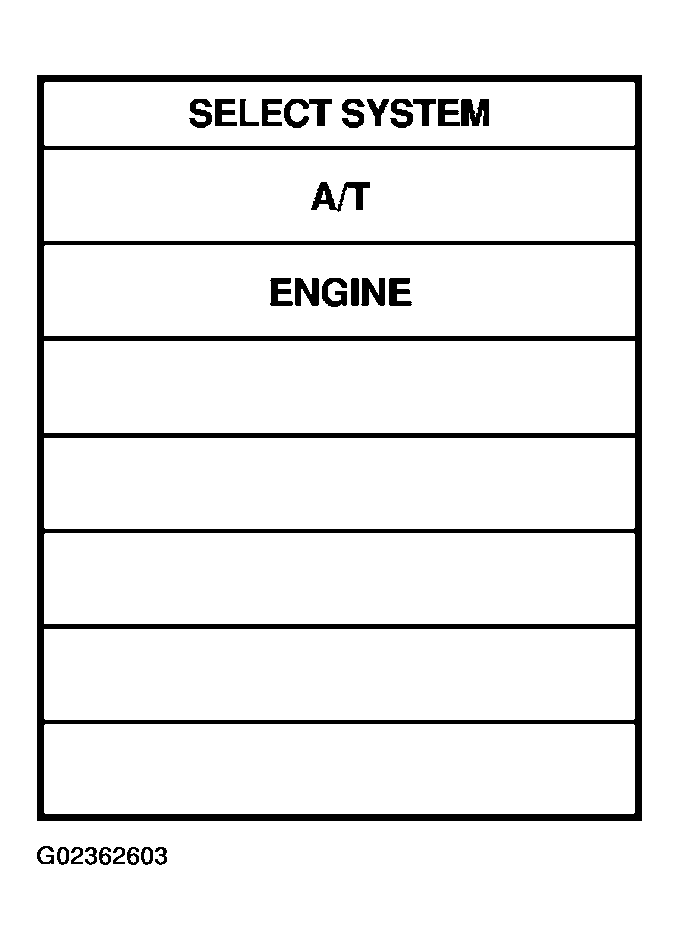

Fig 3: Identifying Display - Select System
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic test mode according to each service procedure.

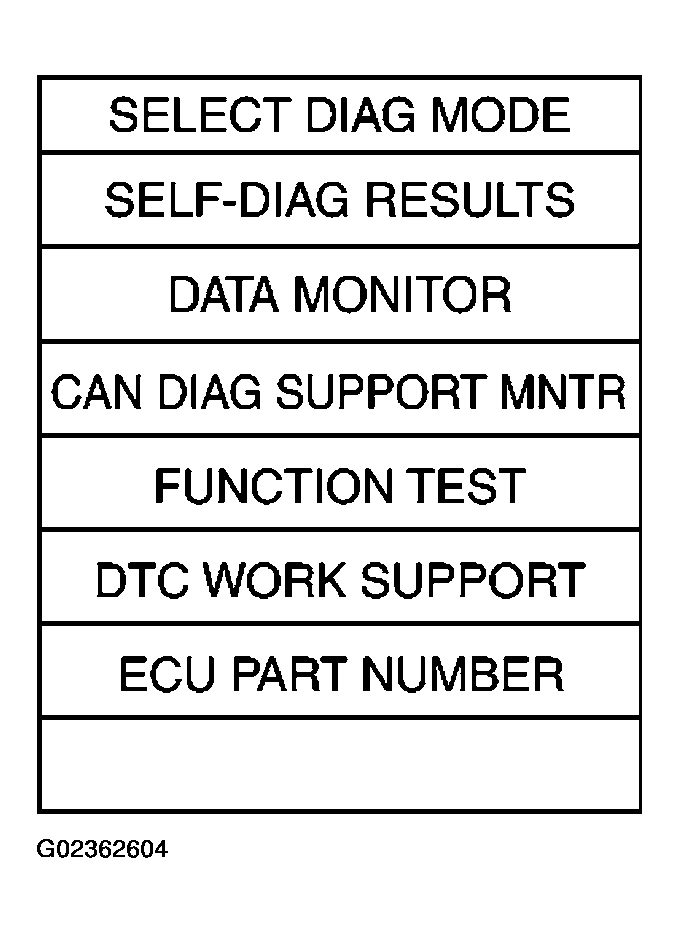

Fig 4: Identifying Display - Select Diag Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
