Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to "SELF-DIAGNOSTIC RESULT MODE ", "DIAGNOSTIC PROCEDURE WITHOUT CONSULT-II ".

Is malfunction in the CAN communication indicated in the result?
1. YES: Check CAN communication line. Refer to "DTC U1000 CAN COMMUNICATION LINE ".
2. NO: GO TO 2.

CHECK INPUT SIGNAL

With CONSULT-II

Start engine.
Select "ECU INPUT SIGNALS" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
Drive vehicle and read out the value of "VHCL/S SE.MTR".

ITEM VALUE SPECIFICATION

Item name	Condition	Display value (Approx.) (km/h)
VHCL/S SE.MTR	During driving	Approximately matches the speedometer reading.

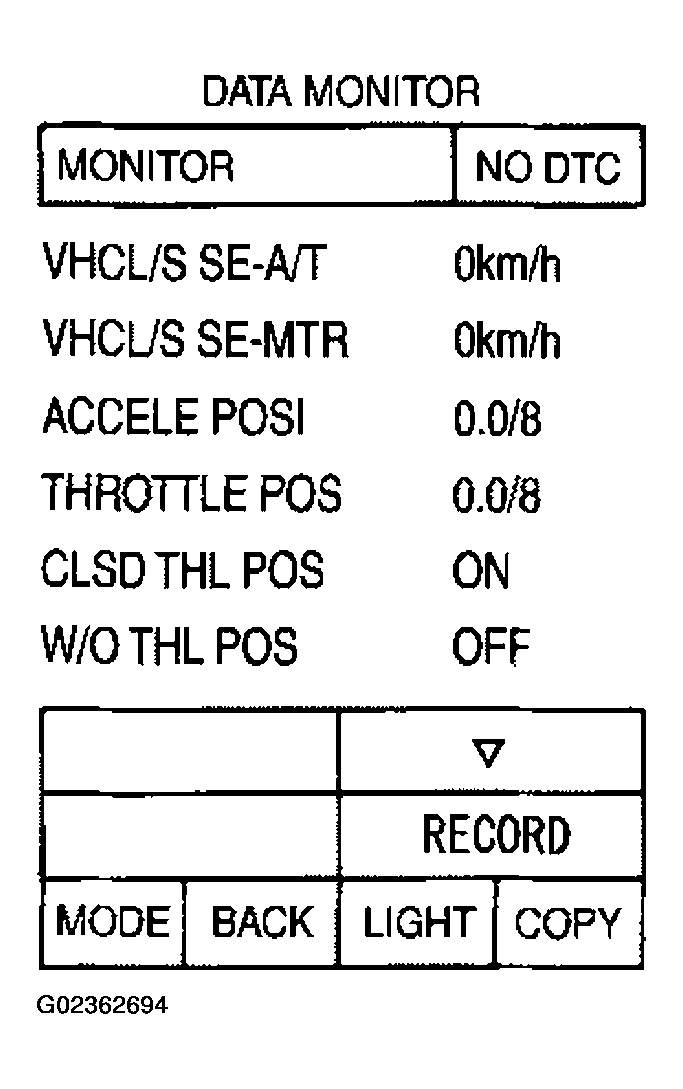

Fig 1: Identifying Display - Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 4.
NG: GO TO 3.

CHECK COMBINATION METERS
Check combination meters. Refer to "TROUBLE DIAGNOSIS ".

OK or NG
1. OK: GO TO 4.
2. NG: Repair or replace damaged parts.
CHECK DTC
Perform "DTC Confirmation Procedure".
- Refer to "DTC CONFIRMATION PROCEDURE ".
OK or NG
1. OK: INSPECTION END
2. NG: GO TO 5.
CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to "MAIN POWER SUPPLY AND GROUND CIRCUIT ".

OK or NG
1. OK: GO TO 6.
2. NG: Repair or replace damaged parts.
DETECT MALFUNCTIONING ITEM
Check the following.
- The A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG
1. OK: Replace the control valve with TCM. Refer to "CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 ".
2. NG: Repair or replace damaged parts.
