With CONSULT-II
WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch ON. (Do not start engine.)

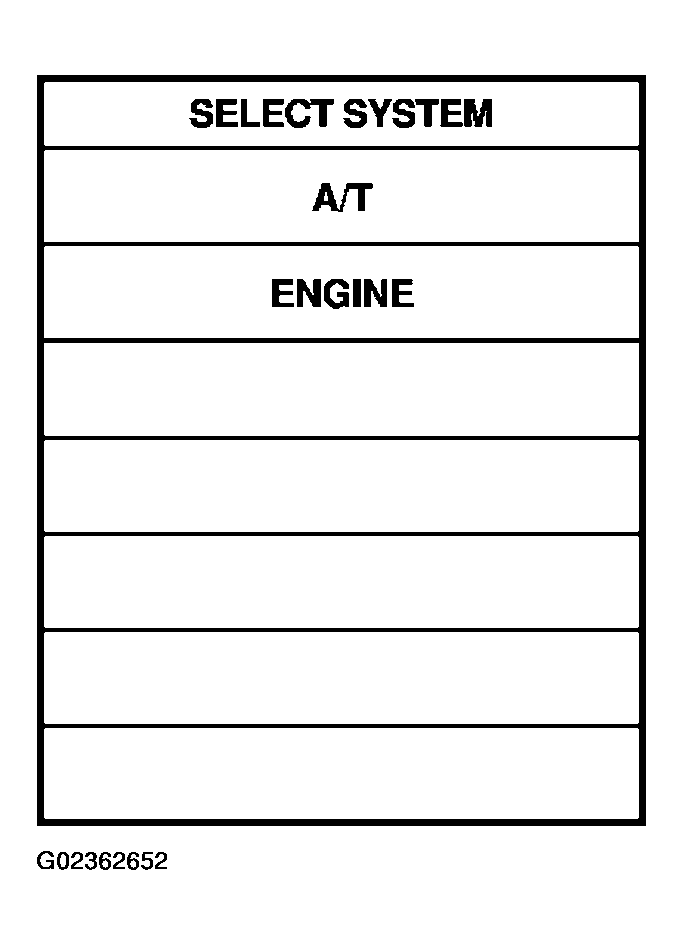

- Select "ECU INPUT SIGNALS" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
- Touch "START".
- Drive vehicle and check for an increase of "VHCL/S SE.A/T" value in response to "VHCL/S SE.MTR" value.
If the check result is NG, go to "DIAGNOSTIC PROCEDURE ".
If the check result is OK, go to following step.
- Select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
- Start engine and maintain the following conditions for at least 5 consecutive seconds.
VHCL SPEED SE: 30 km/h (19 MPH) or more
THRTL POS SEN: More than 1.0/8
Selector lever: "D" position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving conditions required for this test.
If the check result is NG, go to "DIAGNOSTIC PROCEDURE ".
If the check result is OK, go to following step.
- Maintain the following conditions for at least 5 consecutive seconds.
ENGINE SPEED: 3,500 rpm or more
THRTL POS SEN: More than 1.0/8
Selector lever: "D" position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving conditions required for this test.
- If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
