Cooling Fan Motor

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

The cooling fan operates at each speed when the current flows in the cooling fan motor as follows.

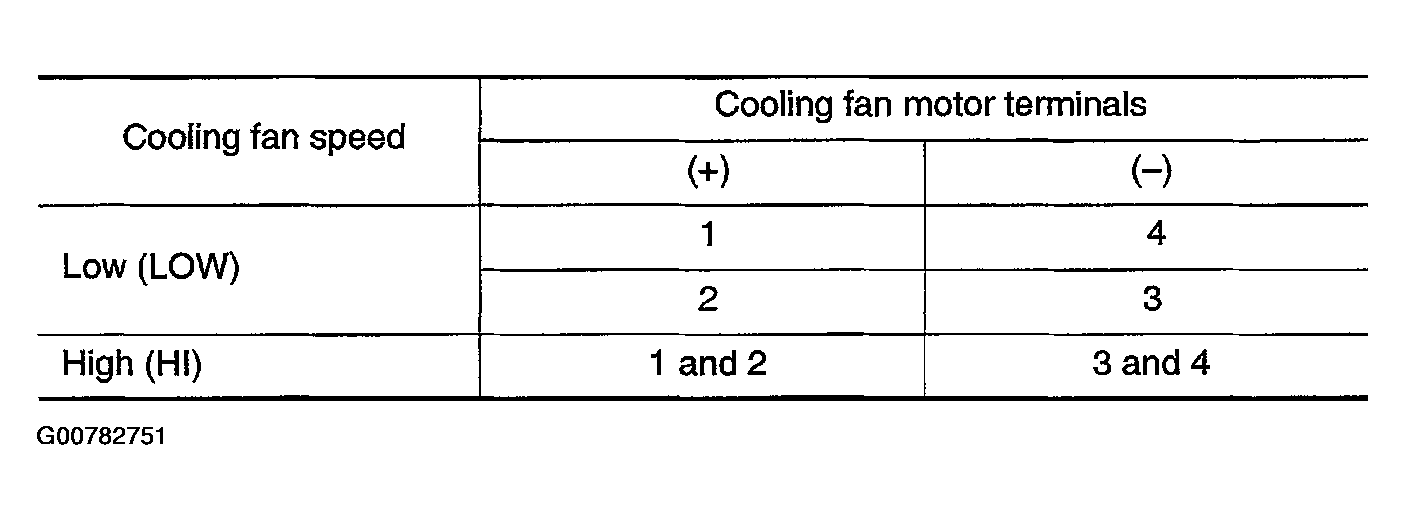

Fig 1: Cooling Fan Motor Component Description Table
G00782751Courtesy of NISSAN MOTOR CO., U.S.A.
