DTC P0461: Fuel Level Sensor Circuit Range/Performance Problem: Description

For system description, see Fig 1 .

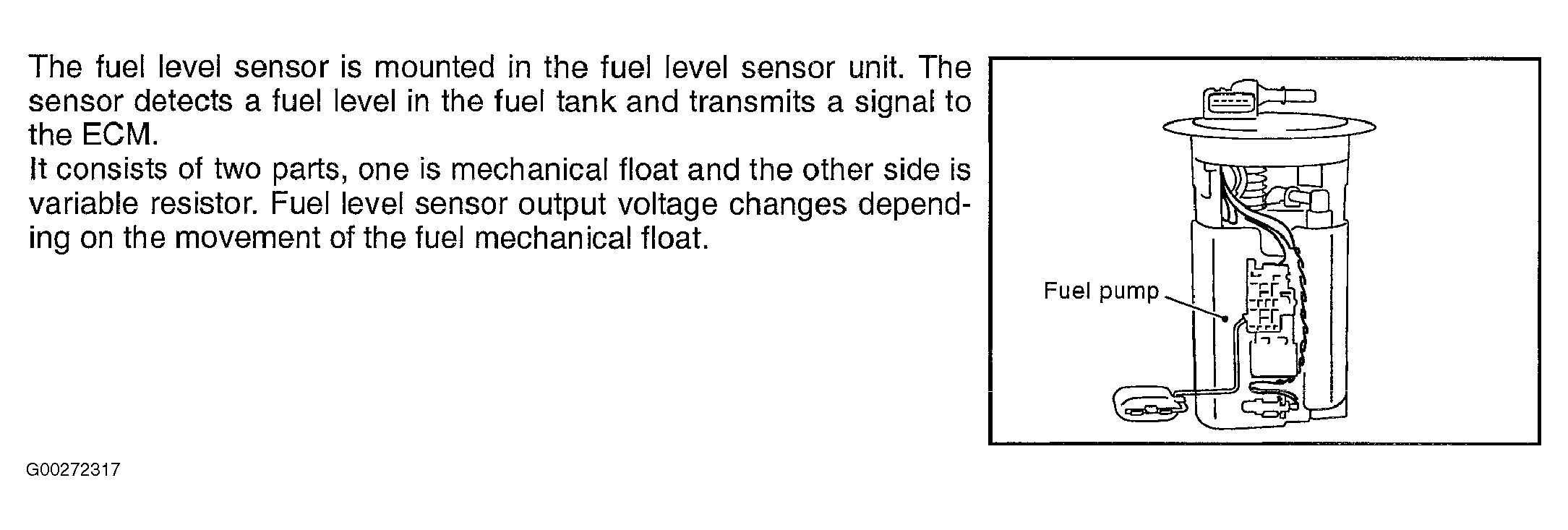

Fig 1: DTC P0461 System Description

G00272317

Courtesy of NISSAN MOTOR CO., U.S.A.
