DTC P0441: EVAP Control System Incorrect Purge Flow: Description

For system description, see Fig 1 .

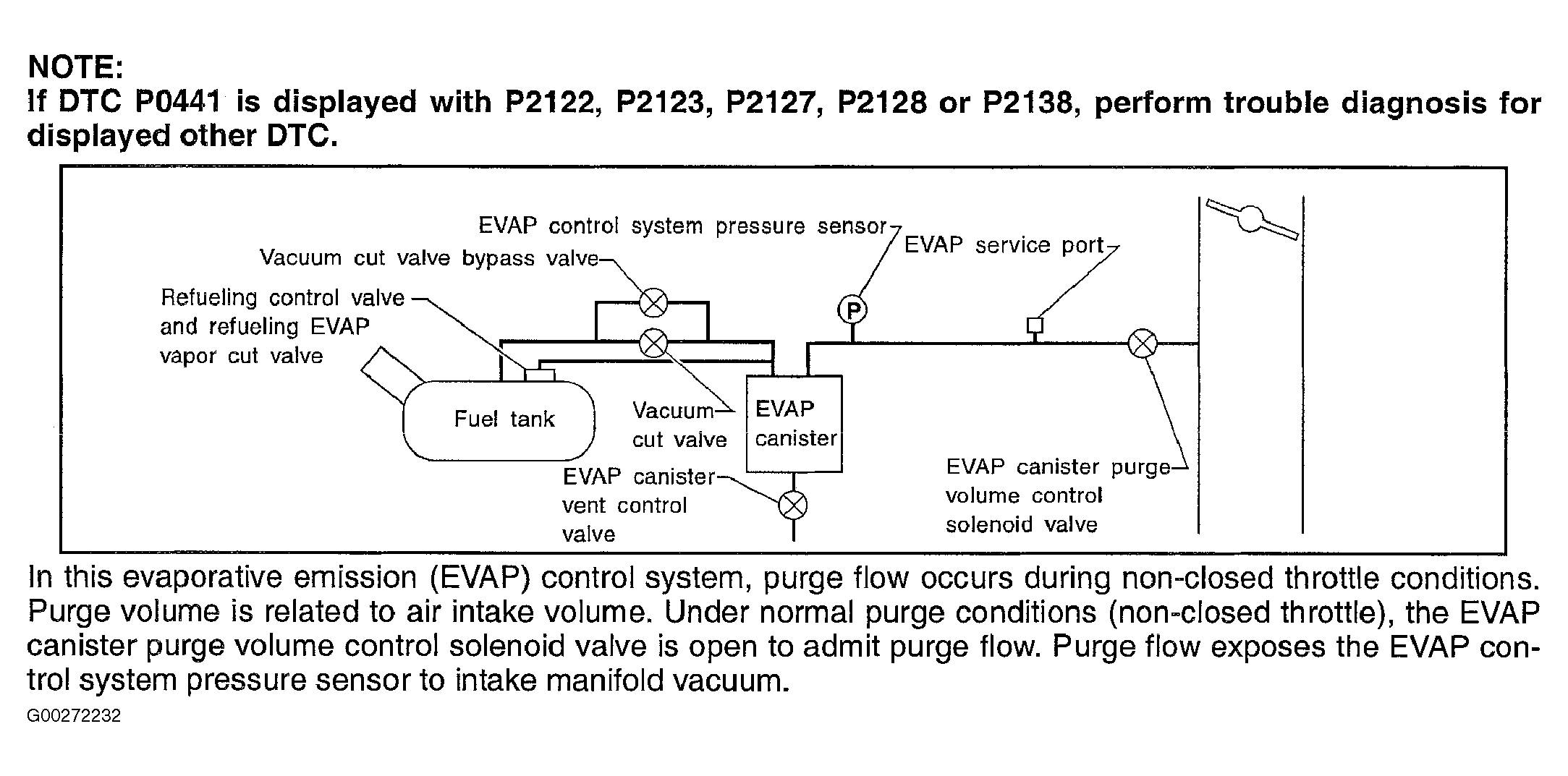

Fig 1: DTC P0441 System Description

G00272232

Courtesy of NISSAN MOTOR CO., U.S.A.
