Altima (3.5L)

For valve clearance inspection, see Fig 1-Fig 3 . For valve adjustment, see Fig 4 and Fig 5

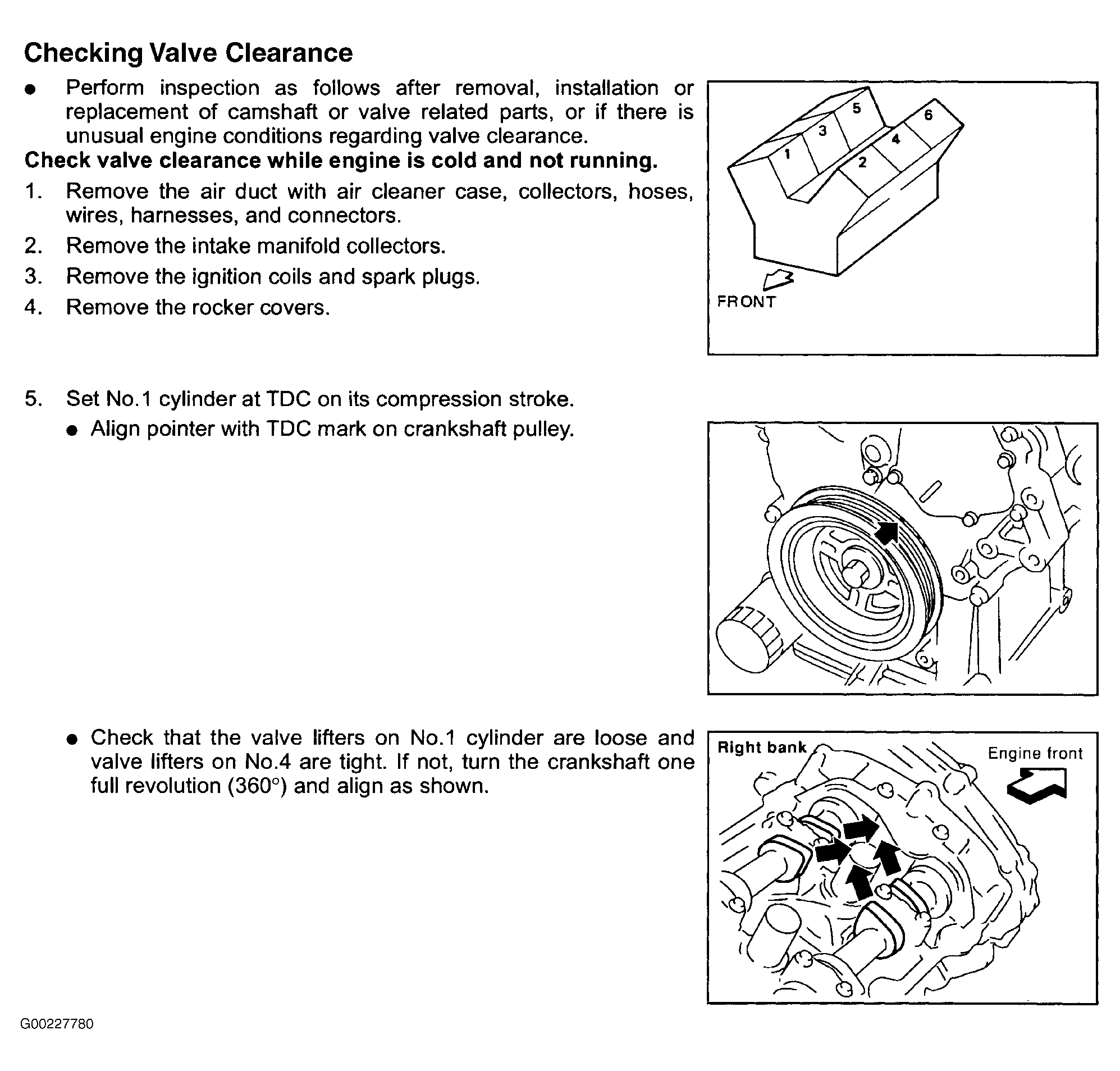

Fig 1: Inspecting Valve Clearance - Altima (3.5L - 1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

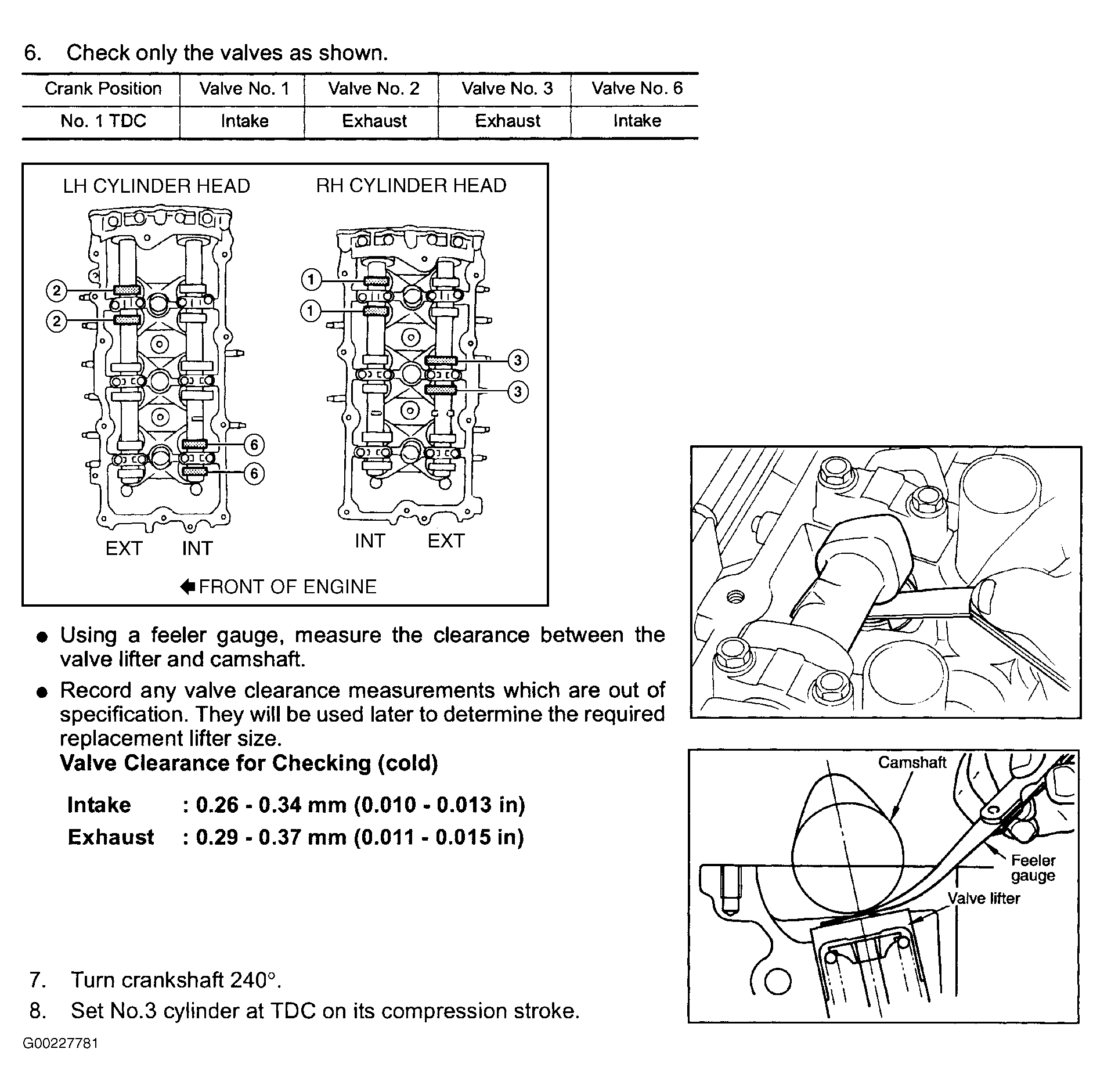

Fig 2: Inspecting Valve Clearance - Altima (3.5L - 2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

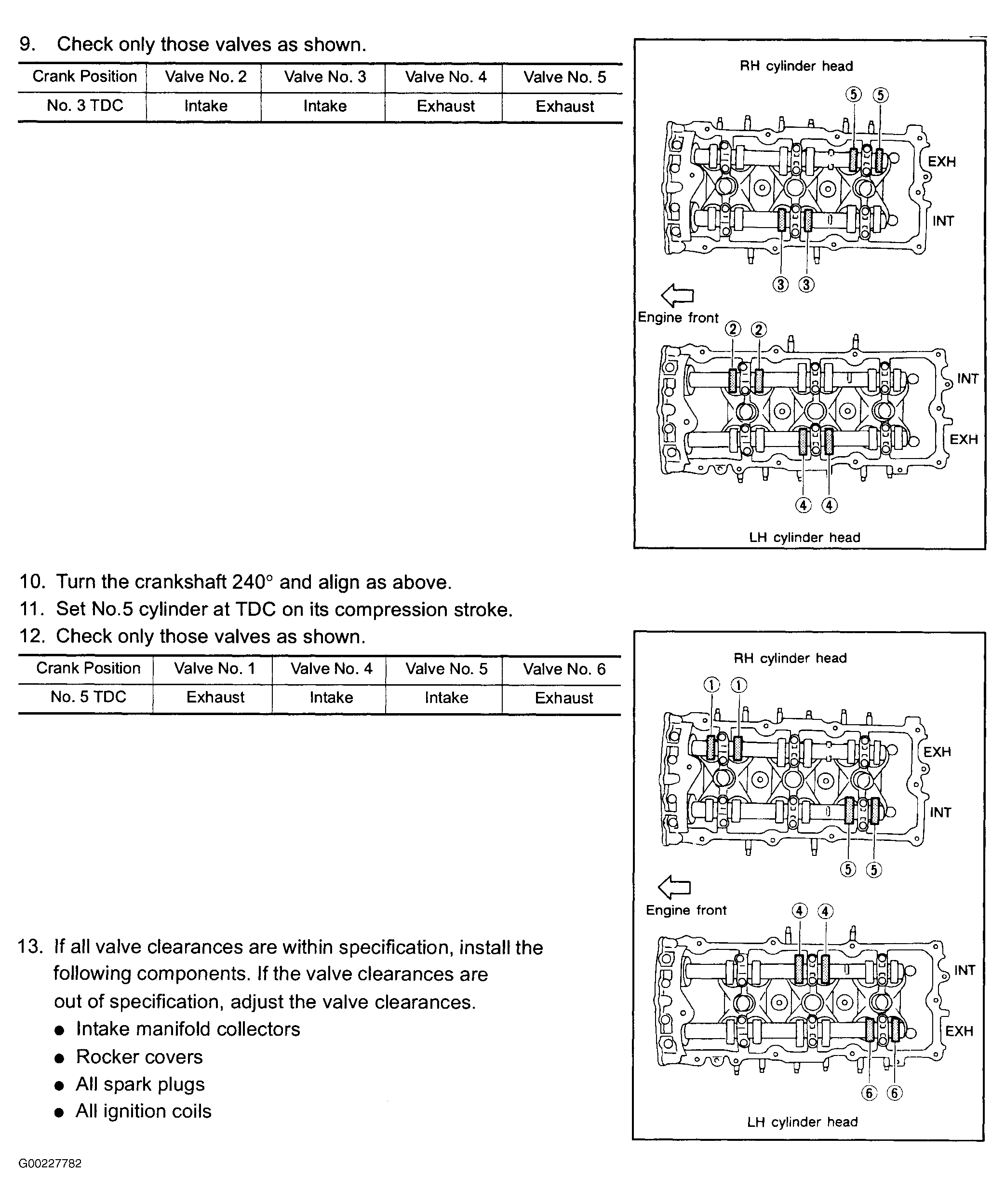

Fig 3: Inspecting Valve Clearance - Altima (3.5L - 3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

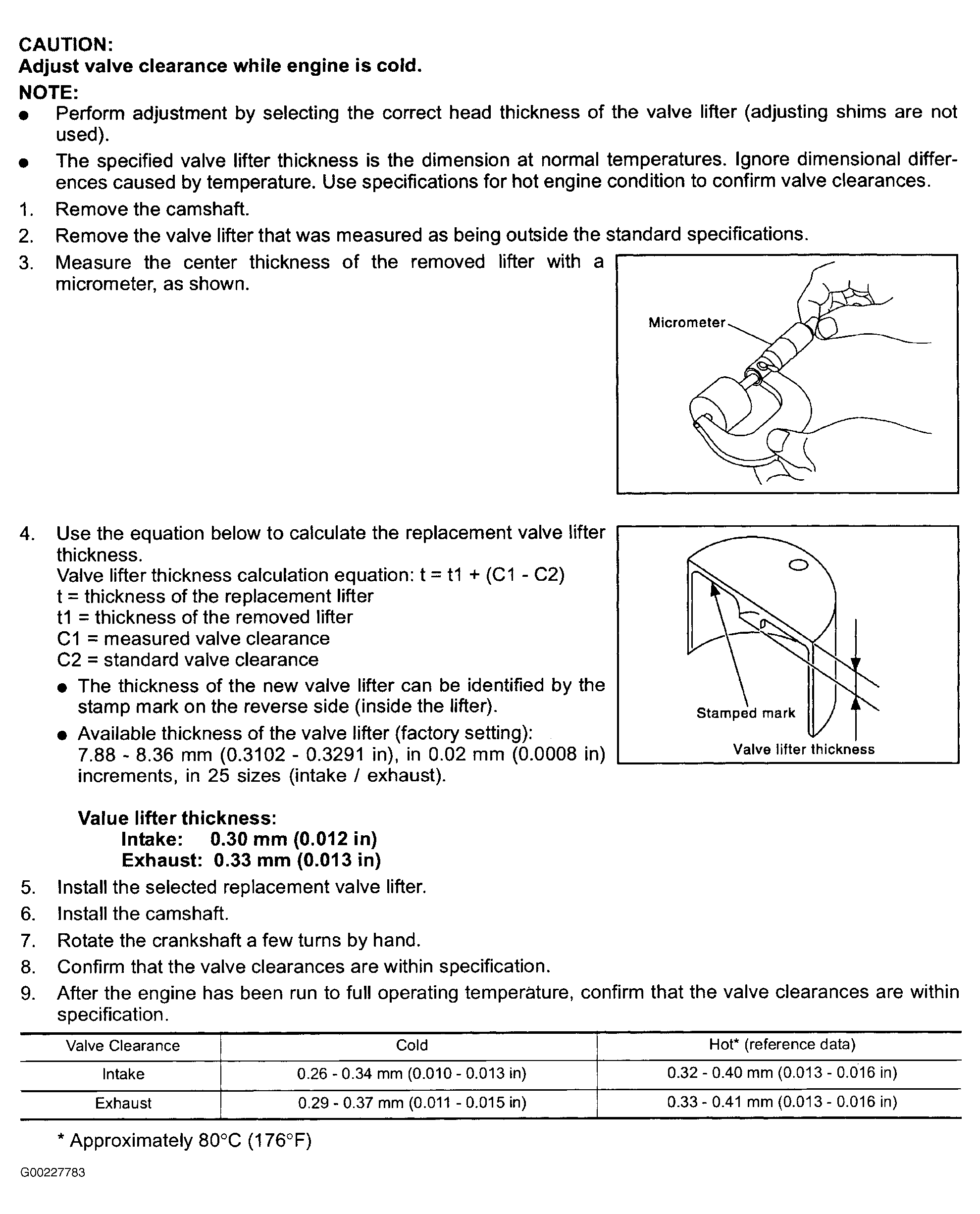

Fig 4: Adjusting Valve Clearance - Altima (3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

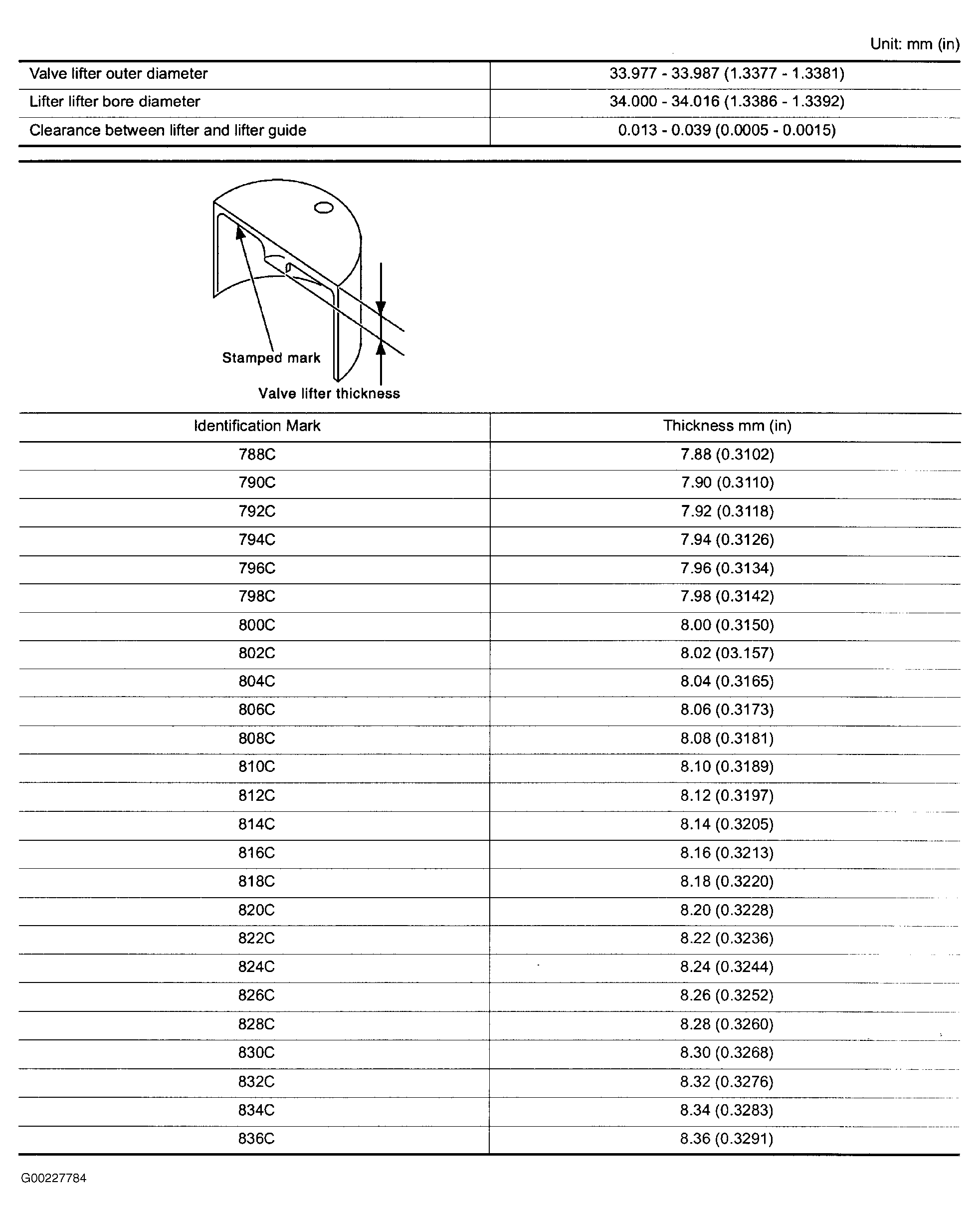

Fig 5: Identifying Lifter Selection - Altima (3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.
