Notes
Disassembly and Assembly: Notes

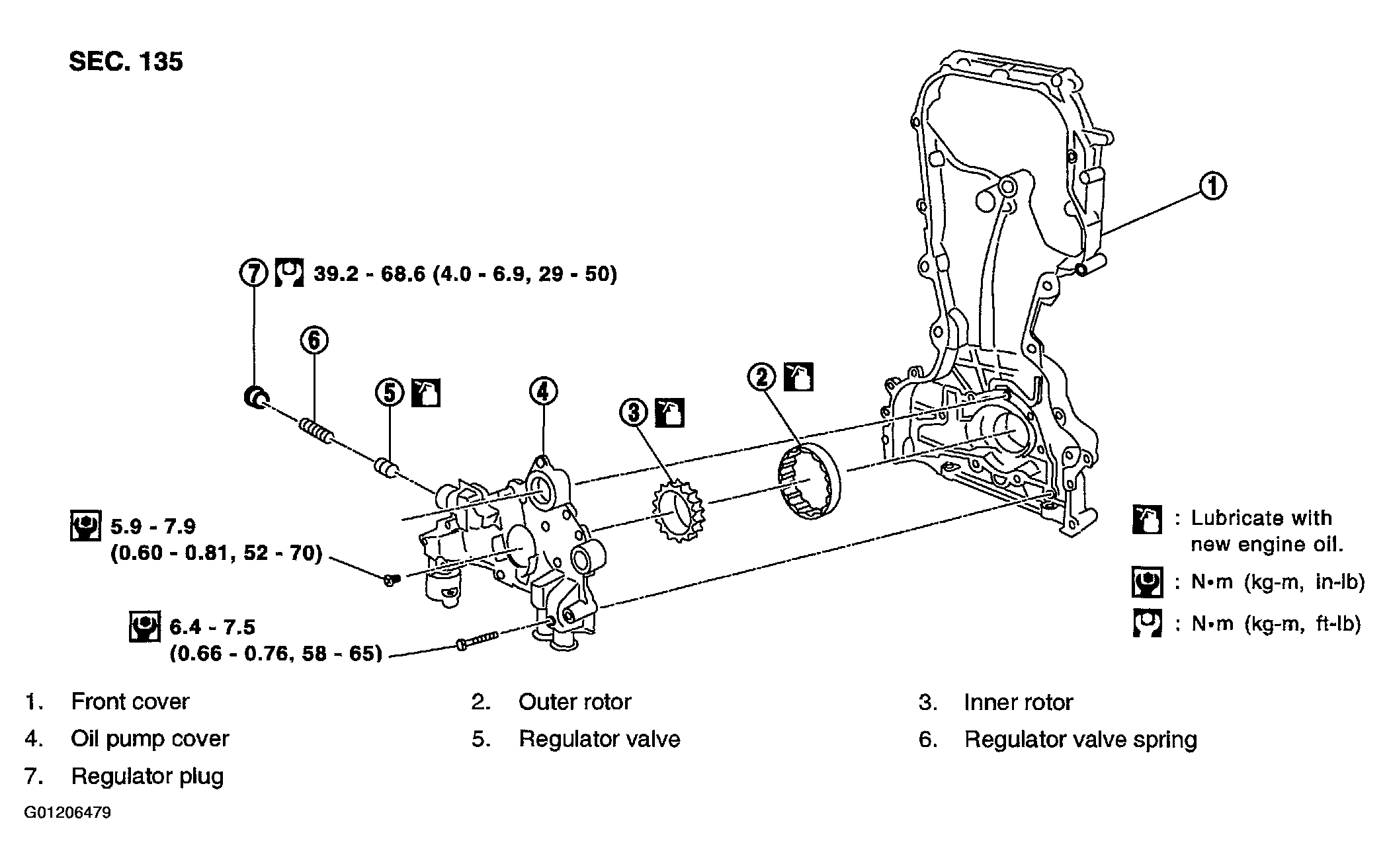

Fig 1: Exploded View Of Oil Pump
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
Before installation, apply new engine oil to the parts as instructed in the figure.
Courtesy of NISSAN MOTOR CO., U.S.A.
