Nissan-Datsun
>>
2003
>>
Sentra SE-R, Automatic
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Communication Devices
>>
Time Control Unit
>>
Time Control Unit Inspection Table (Without Power Door Locks)
Time Control Unit Inspection Table (Without Power Door Locks)

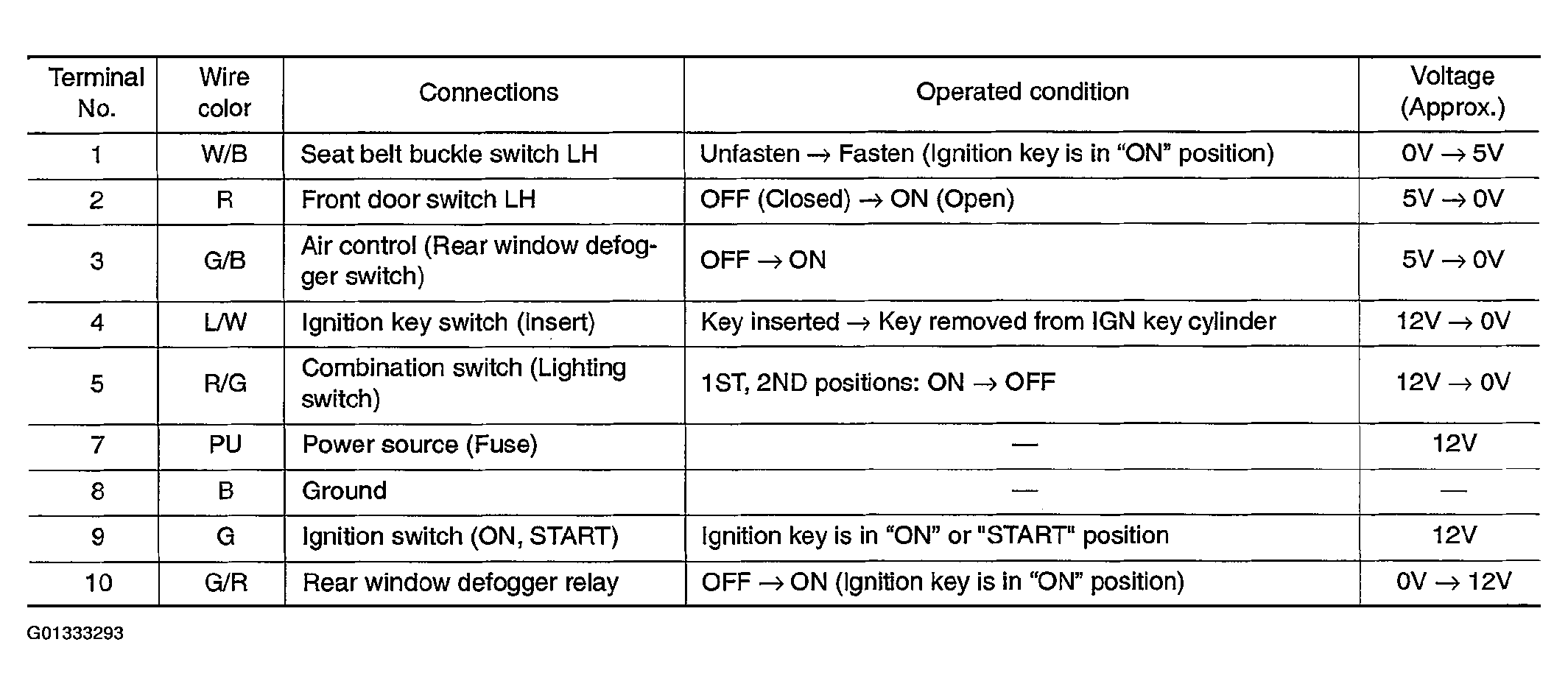

Fig 1: Time Control Unit Inspection chart (Without Power Door Locks)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
