Diagnostic Items Application

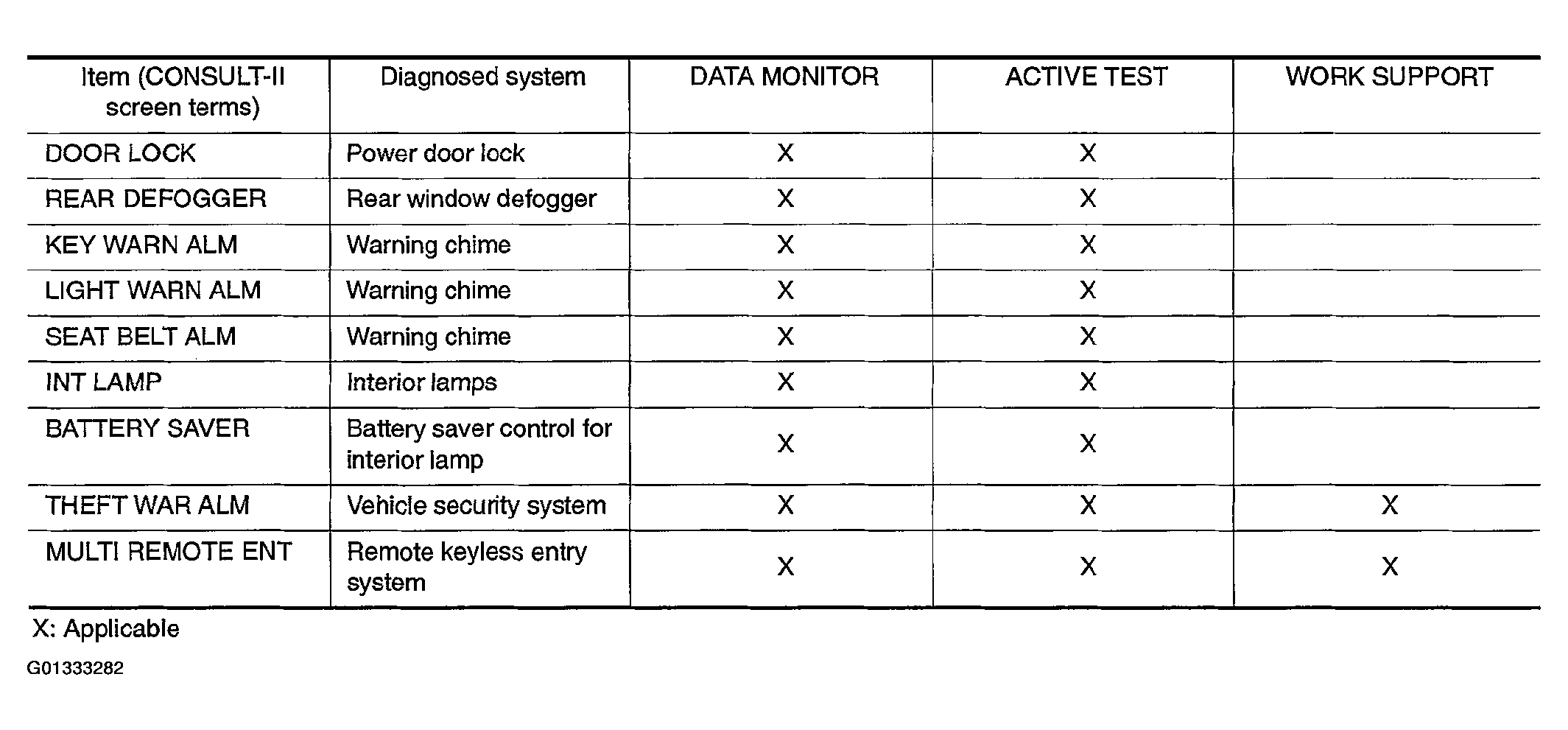

Fig 1: CONSULT-II Diagnostic Items Application Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

For diagnostic item in each control system, refer to the appropriate article for each system.
