Nissan-Datsun
>>
2003
>>
Sentra SE-R Spec V
>>
Repair and Diagnosis
>>
Transmission
>>
Manual Transaxle (RS6F51H)
>>
Transaxle Assembly
>>
Component Parts
>>
Gear Components
Gear Components

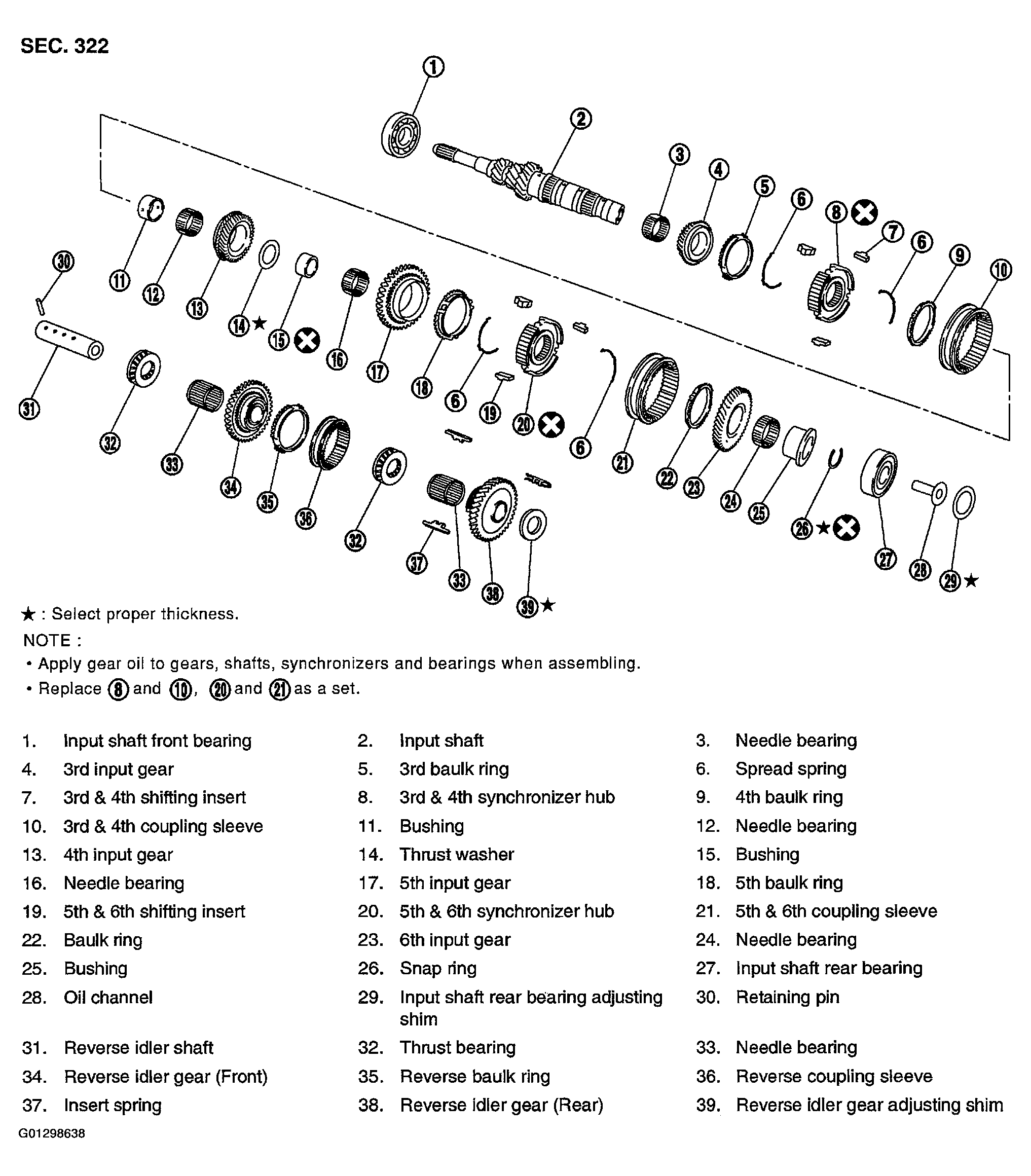

Fig 1: Identifying Gear Components (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

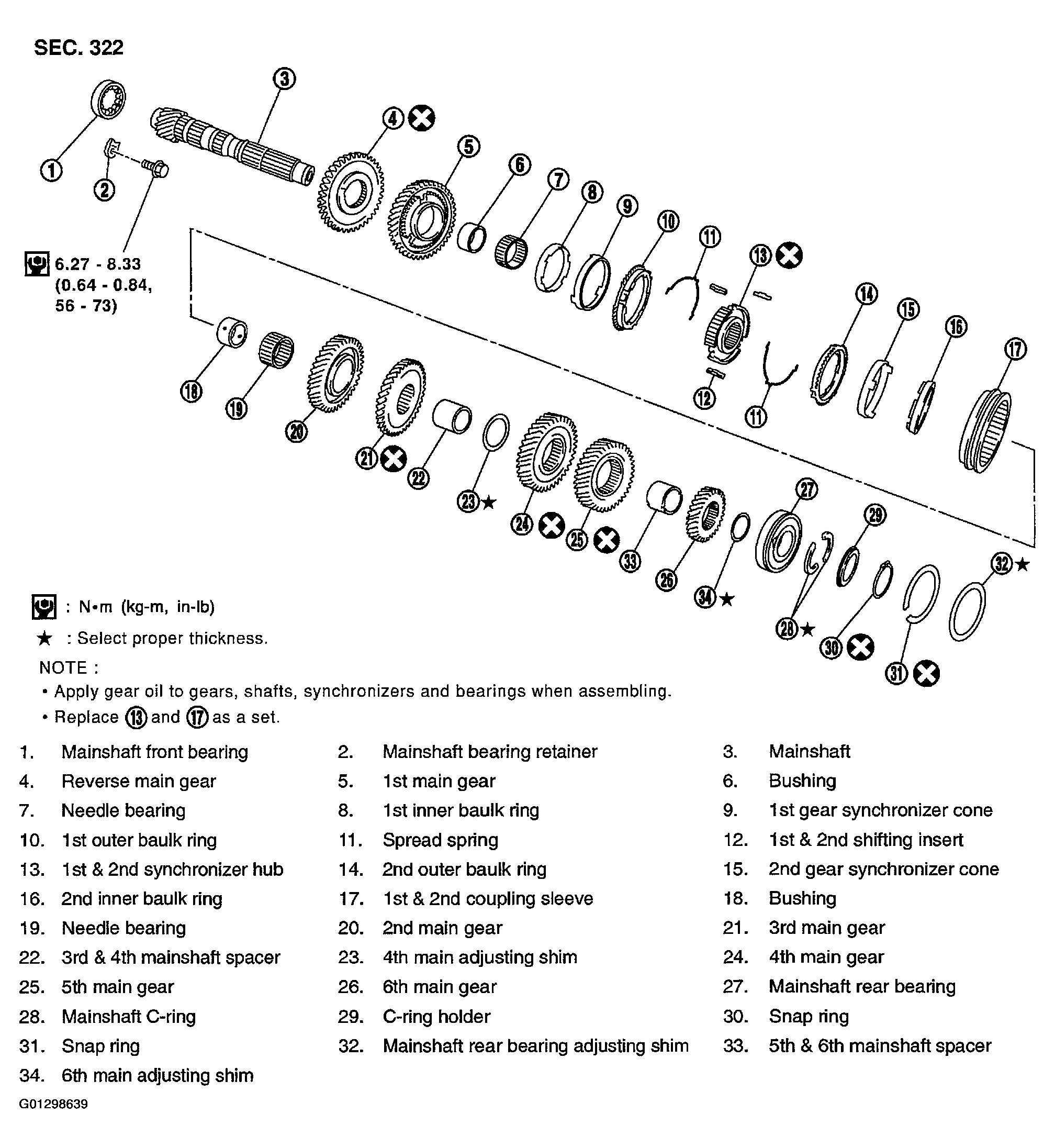

Fig 2: Identifying Gear Components (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
