Clutch System (Qr25DE)
>>
Service Data And Specifications (SDS)
>>
Clutch Disc
Clutch Disc

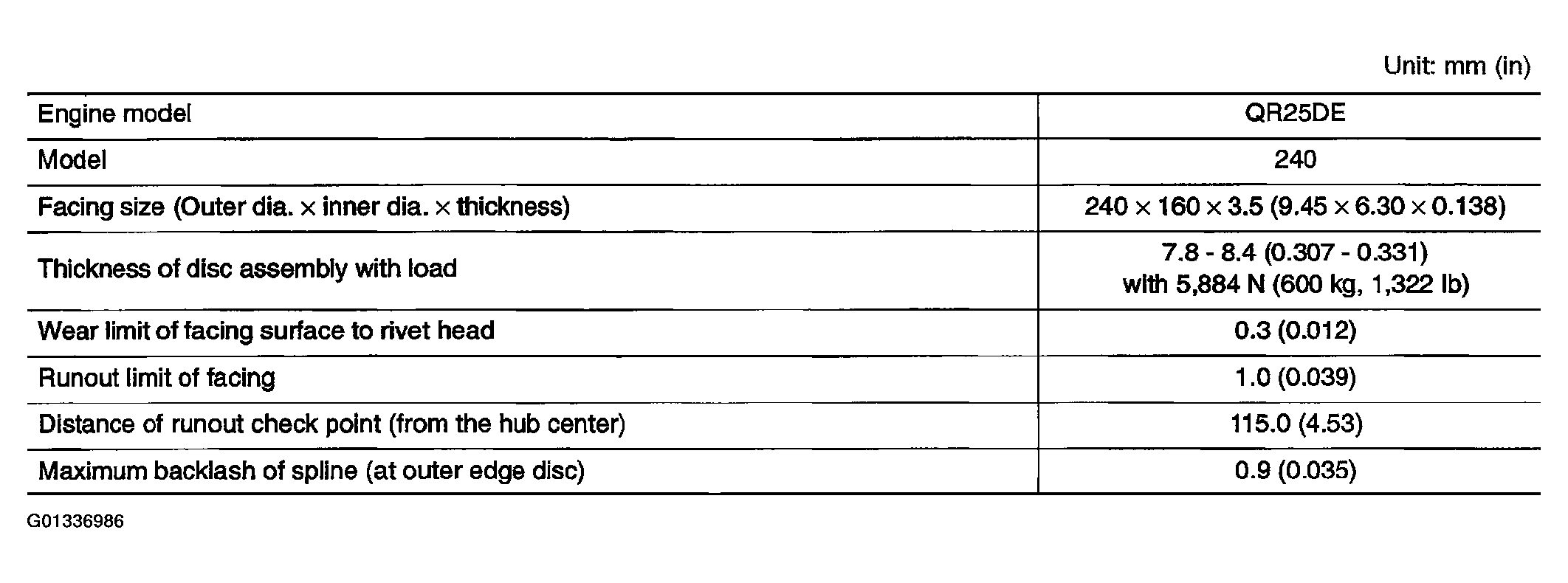

Fig 1: Clutch Disc Service Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
