Clutch Release Mechanism: Components

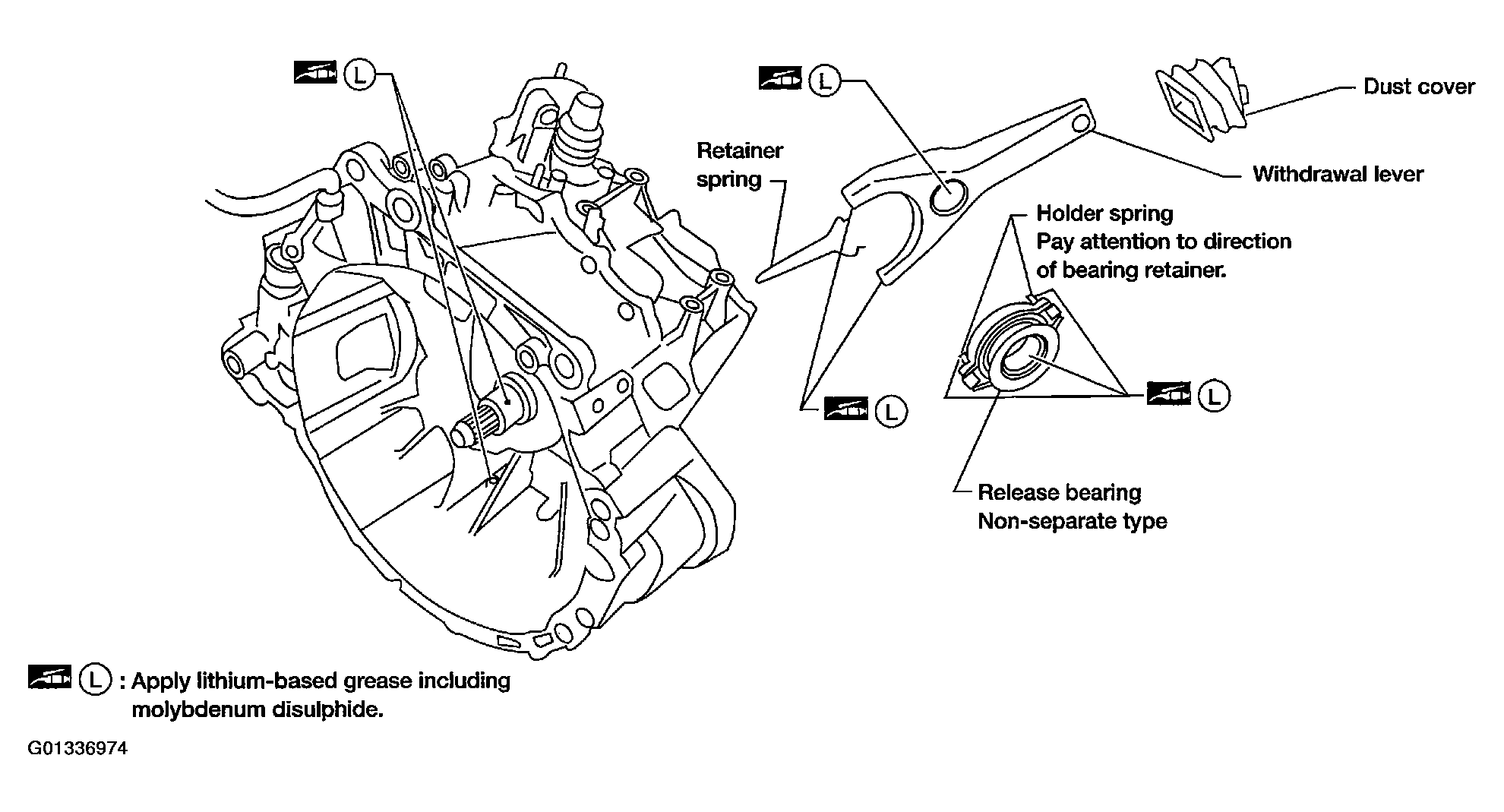

Fig 1: Identifying Clutch Release Mechanism Components

G01336974

Courtesy of NISSAN MOTOR CO., U.S.A.
