Front Wiper Does Not Operate

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

FRONT WIPER ACTIVE TEST
1. Select "FR WIPER (HI) or "FR WIPER (LOW)" during active test. Refer to ACTIVE TEST .
2. Make sure front wiper operation.
  Front wiper operation should operate.

  OK or NG
1. OK: GO TO 5.
2. NG: GO TO 2.
CHECK FRONT WIPER MOTOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front wiper motor connector.
3. Check continuity between IPDM E/R harness connector E8 terminal 30 (L/B) and front wiper motor harness connector E22 terminal 2 (L/B).

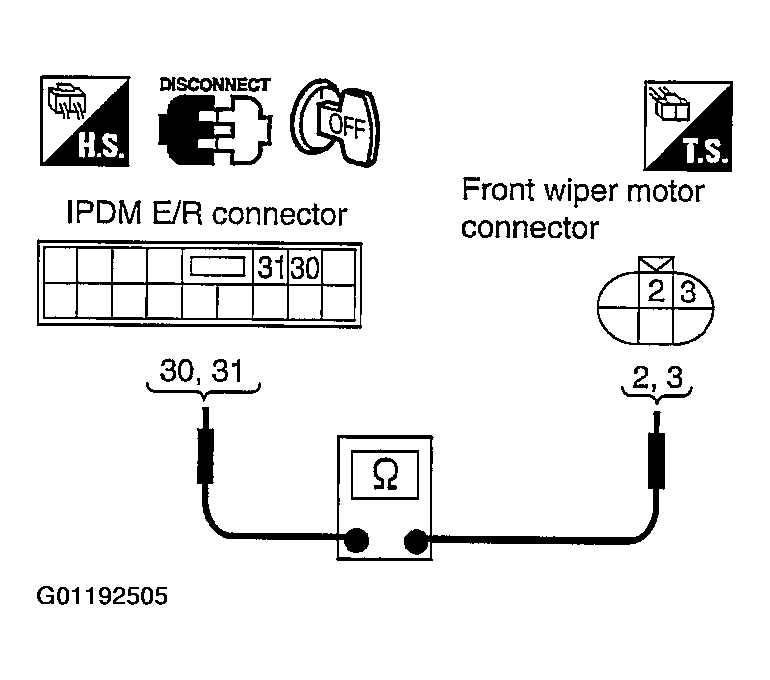

  Fig 1: Checking Front Wiper Motor Circuit
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Continuity should exist.
4. Check continuity between IPDM E/R harness connector E8 terminal 31 (L) and front wiper motor harness connector E22 terminal 3 (L).
  Continuity should exist.

  OK or NG
1. OK: GO TO 3.
2. NG: Repair harness or connector.
CHECK FRONT WIPER MOTOR GROUND
Check continuity between front wiper motor harness connector E22 terminal 1 (B) and ground.

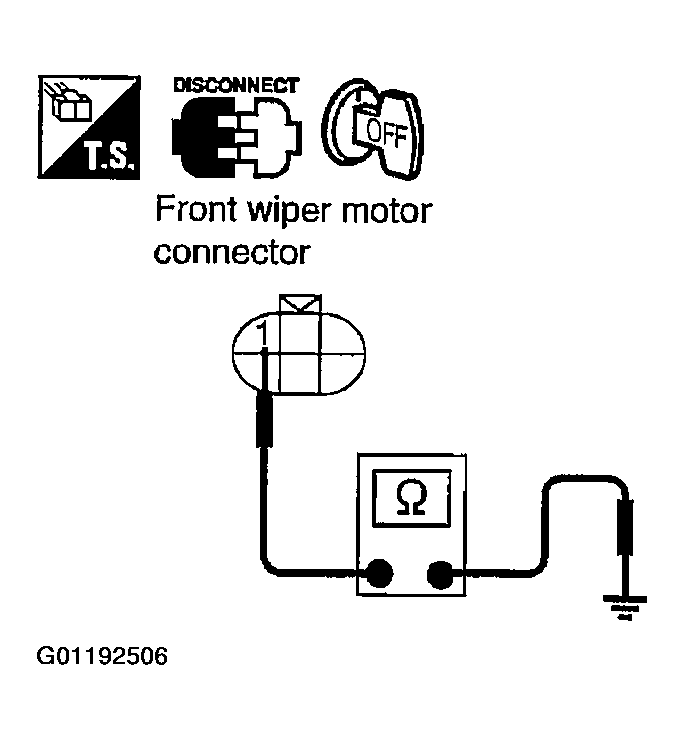

Fig 2: Checking Front Wiper Motor Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

Continuity should exist.

OK or NG
1. OK: GO TO 4.
2. NG: Repair harness or connector.
CHECK IPDM E/R OUTPUT SIGNAL
1. Connect IPDM E/R connector and front wiper motor connector.
2. Select "FR WIPER (HI)" or "FR WIPER (LOW)" during active test. Refer to ACTIVE TEST . When front wiper relay, and front wiper HI relay are operating, check voltage between IPDM E/R harness connector and ground.

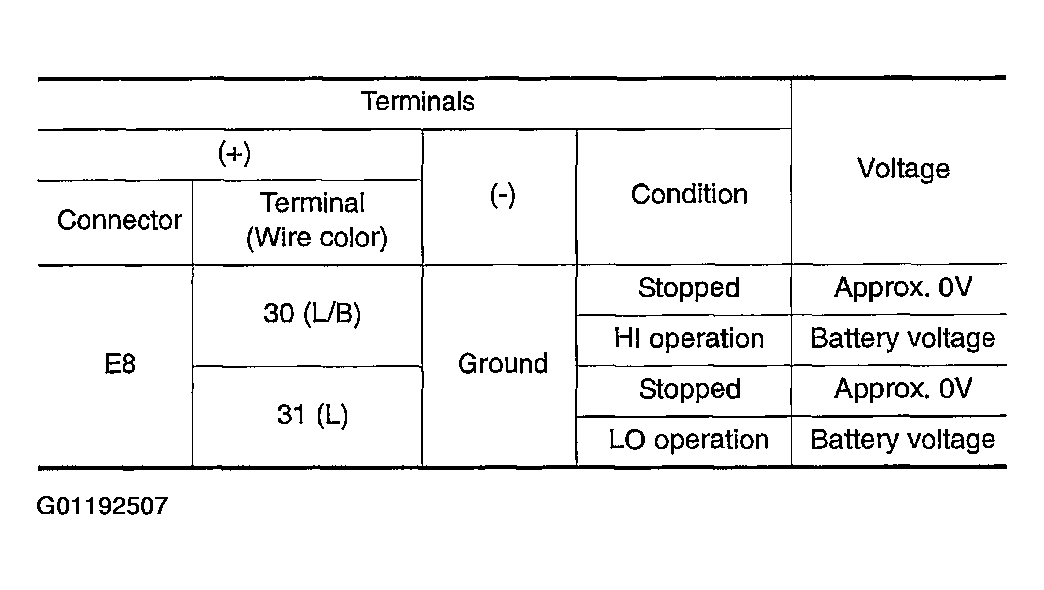

  Fig 3: IPDM E/R Terminal Connector Voltage Specifications
  Courtesy of NISSAN MOTOR CO., U.S.A.

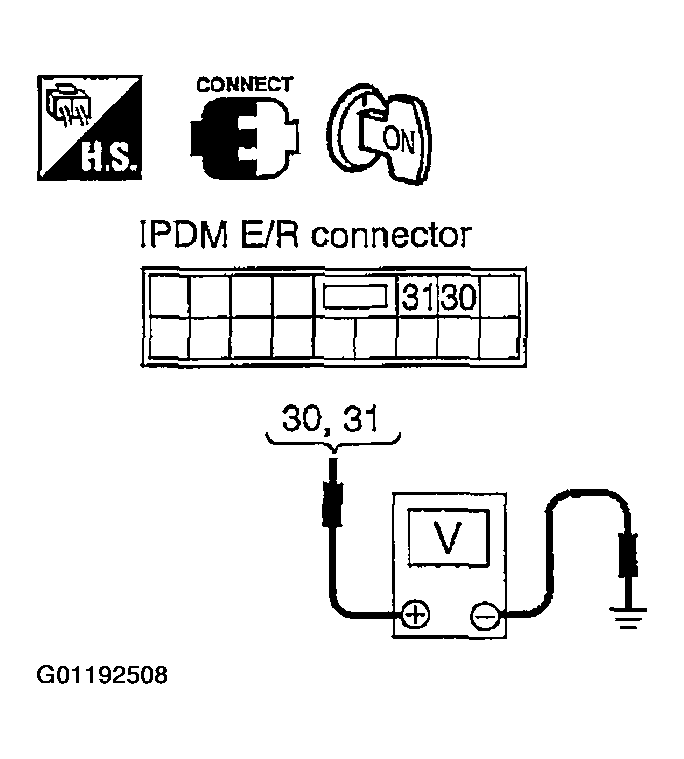

  Fig 4: Checking IPDM E/R Output Signal
  Courtesy of NISSAN MOTOR CO., U.S.A.

  OK or NG
1. OK: Replace front wiper motor.
2. NG: Replace IPDM E/R.
CHECK COMBINATION SWITCH CIRCUIT
Select "BCM" on CONSULT-II. Carry out self-diagnosis of "BCM C/U".

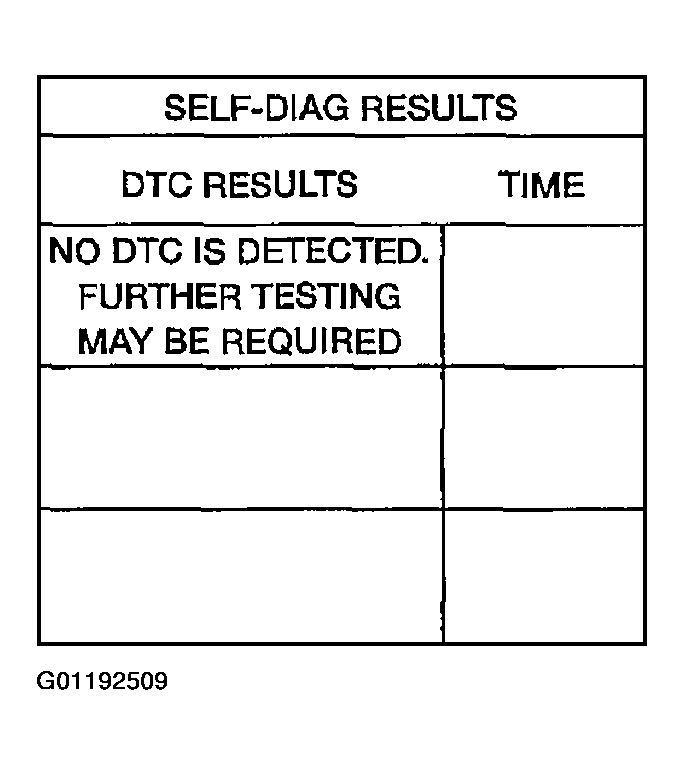

Fig 5: Checking Combination Switch Circuit (Front Wiper Does Not Operate)
Courtesy of NISSAN MOTOR CO., U.S.A.

Displayed results of self-diagnosis

No malfunction detected: GO TO 6.

CAN communications or CAN system: Check BCM CAN communication system. Refer to CAN COMMUNICATION INSPECTION USING CONSULT-II (SELF-DIAGNOSIS) .

OPEN DETECT 1 - 5: Combination switch system malfunction. Go to COMBINATION SWITCH INSPECTION ACCORDING TO SELF-DIAGNOSTIC RESULTS .
CHECK COMBINATION SWITCH INPUT SIGNAL
Select "BCM" on CONSULT-II. With "WIPER" data monitor, make sure "FR WIPER INT", "FR WIPER LOW" and "FR WIPER HI" turn ON-OFF according to operation of wiper switch.

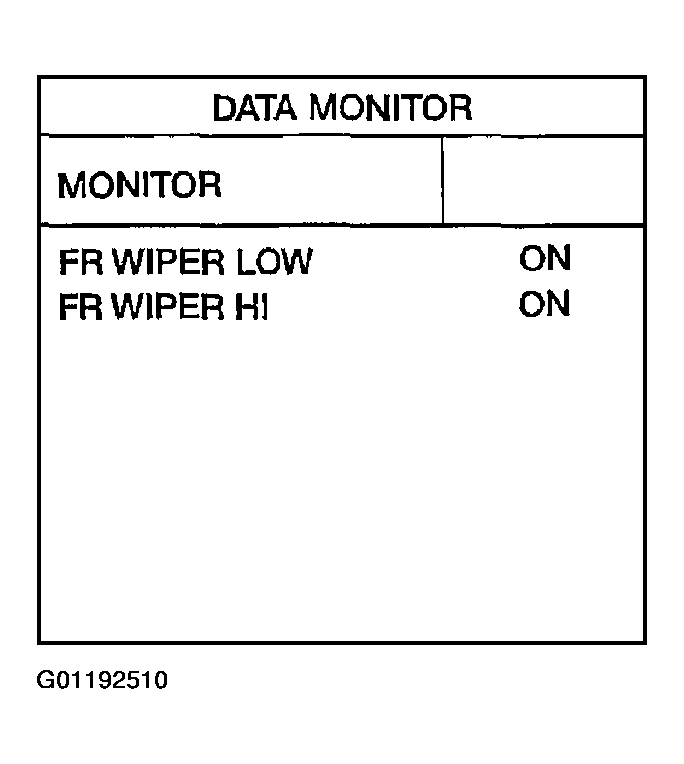

Fig 6: Checking Combination Switch Input Signal (Front Wiper Does Not Operate)
Courtesy of NISSAN MOTOR CO., U.S.A.

When front wiper switch is low position: FR WIPER LOW ON

When front wiper switch is HI position: FR WIPER HI ON

OK or NG
1. OK: Replace BCM. Refer to REMOVAL AND INSTALLATION OF BCM .
2. NG: Replace wiper switch.
