Consult-II Operation

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn ignition switch ON.

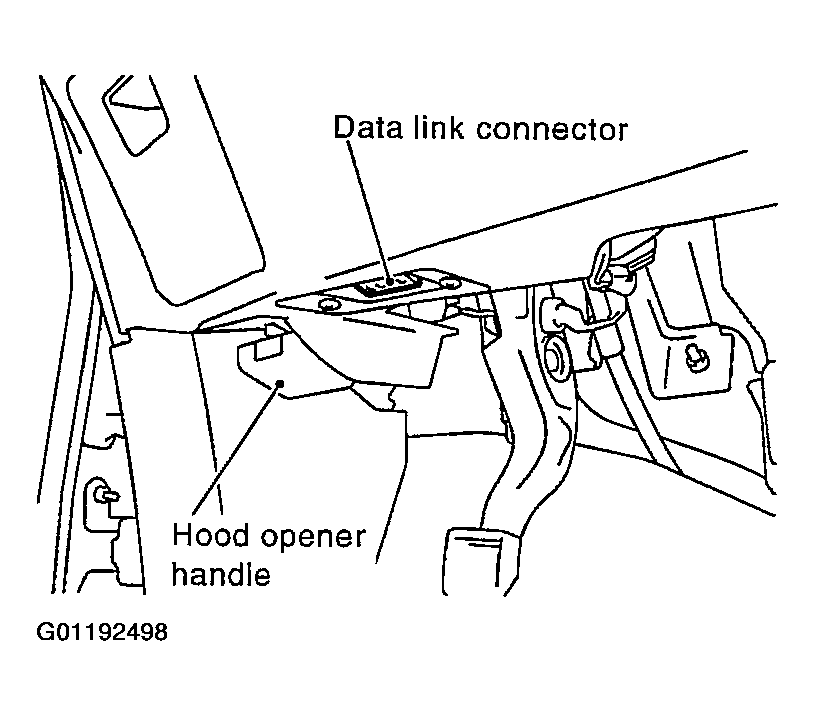

    Fig 1: Connecting CONSULT-II And CONSULT-II Converter To Data Link Connector
    G01192498Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

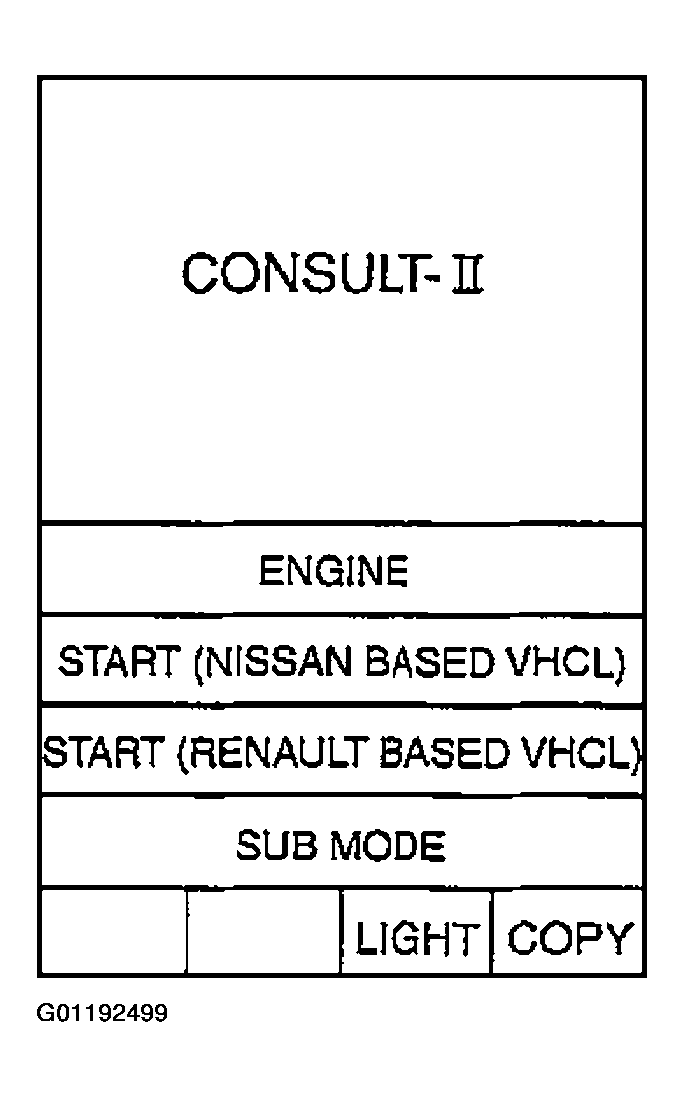

    Fig 2: CONSULT-II Display - Touch "START (NISSAN BASED VHCL)"
    G01192499Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen.

    If "BCM" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

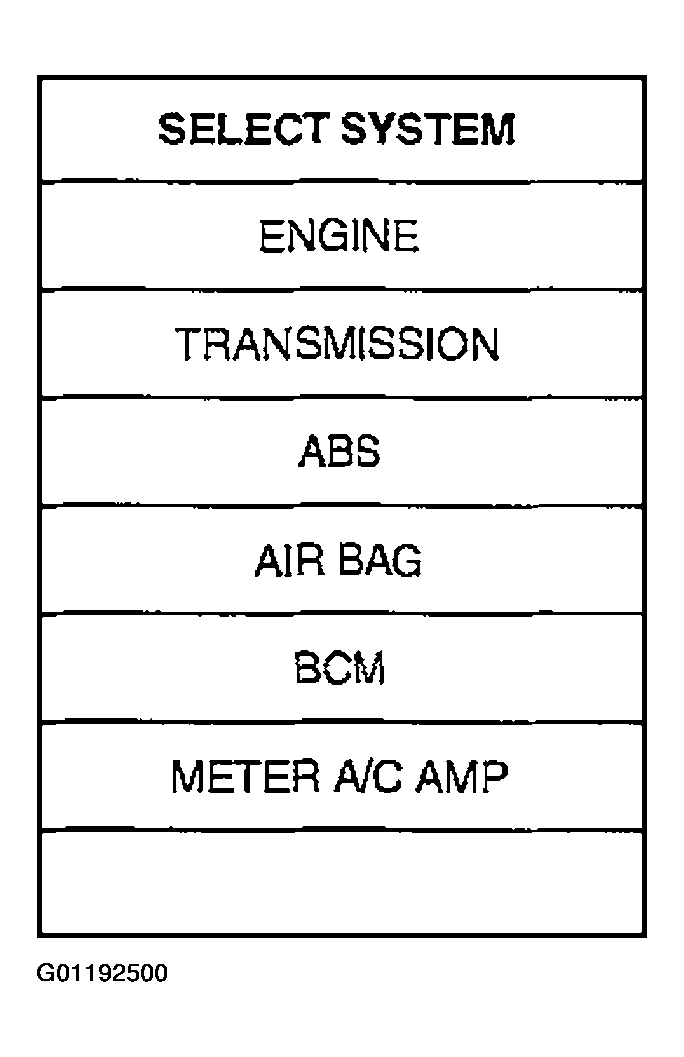

    Fig 3: CONSULT-II Display - Touch "BCM" On "SELECT SYSTEM SCREEN"
    G01192500Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "WIPER".

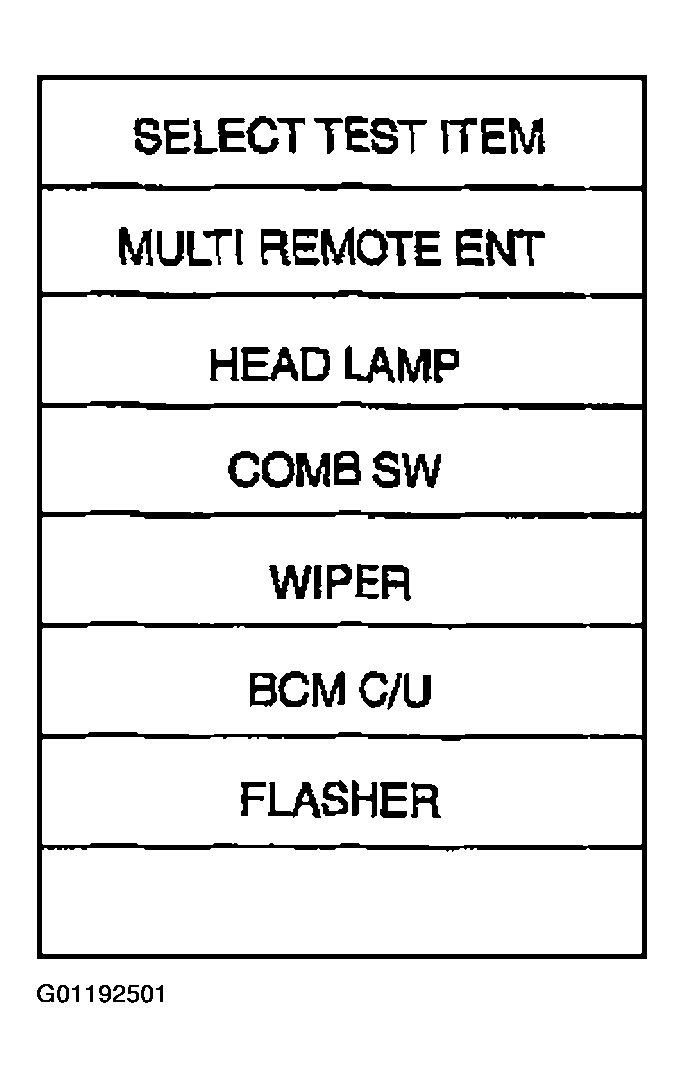

    Fig 4: CONSULT-II Display - Touch "WIPER"
    G01192501Courtesy of NISSAN MOTOR CO., U.S.A.
