Removal And Installation: Removal

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument mask (right side). Refer to (Q) INSTRUMENT MASK (LH; AUTO LIGHT SENSOR) .
  2. Disconnect sunload sensor connector, then remove sunload sensor.

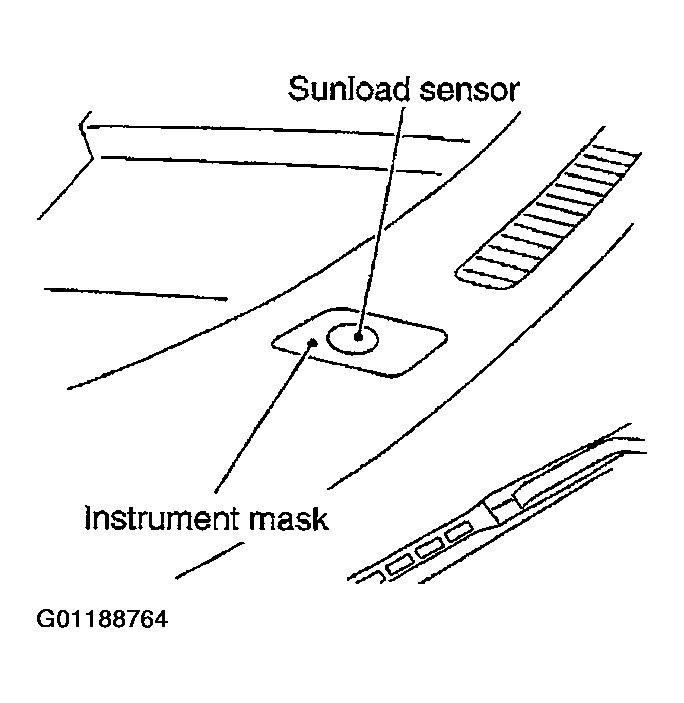

    Fig 1: Locating Sunload Sensor
    G01188764Courtesy of NISSAN MOTOR CO., U.S.A.
