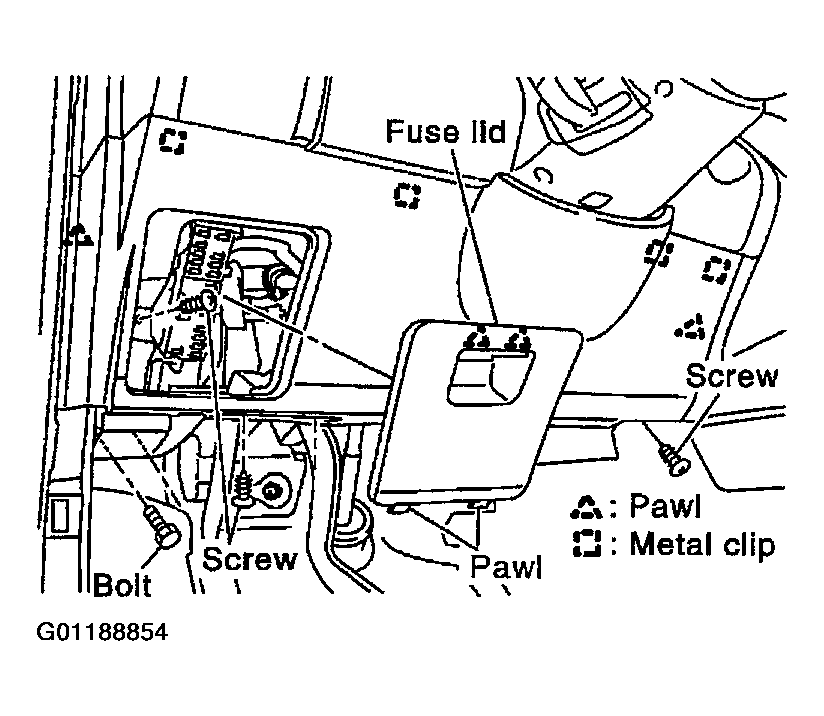

(C) Instrument Driver Lower Panel
WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN MOTOR CO., U.S.A.
- Remove screws.
- Remove data link connector.
- Pull to disengage metal clip by removing panel in horizontal direction.
- Disconnect in-vehicle sensor and each electrical parts.
- Remove bolts, and remove hood lock opener.
