Cross-Sectional View

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

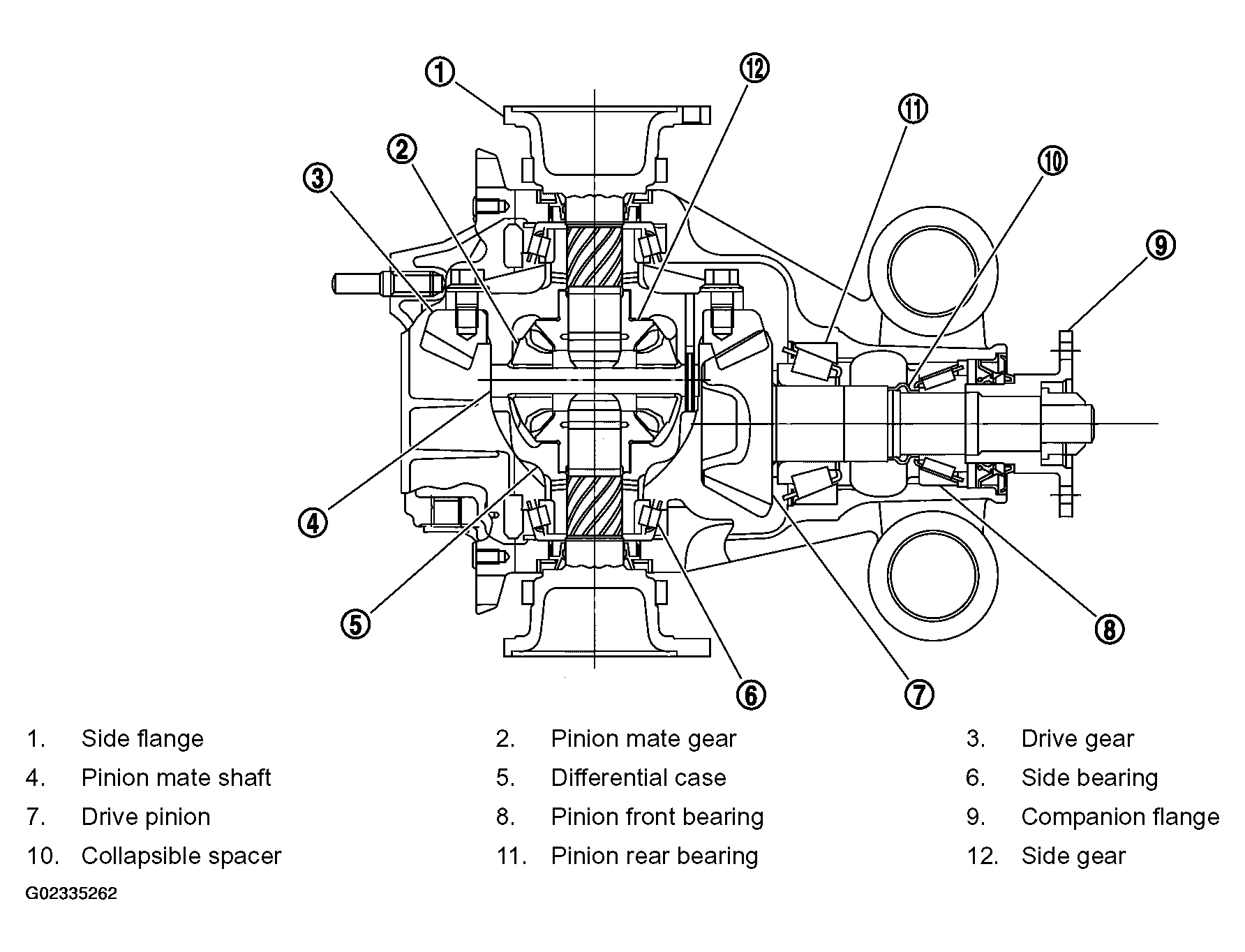

Fig 1: Cross-Sectional View - R200 (2-pinion)
G02335262Courtesy of NISSAN MOTOR CO., U.S.A.

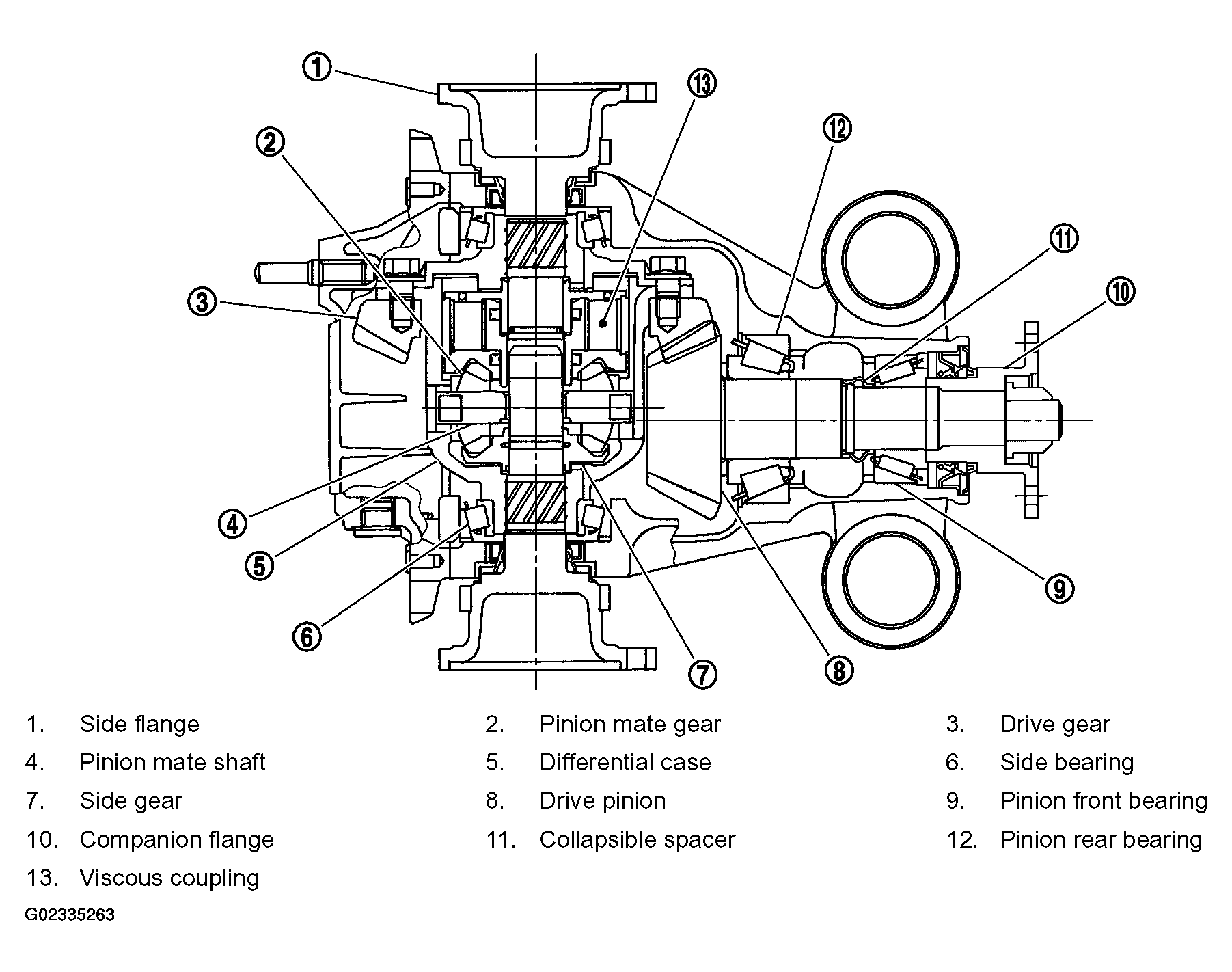

Fig 2: Cross-Sectional View - R200V (LSD)
G02335263Courtesy of NISSAN MOTOR CO., U.S.A.
