Consult-II Basic Operation Procedure

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector, and turn the ignition switch ON.

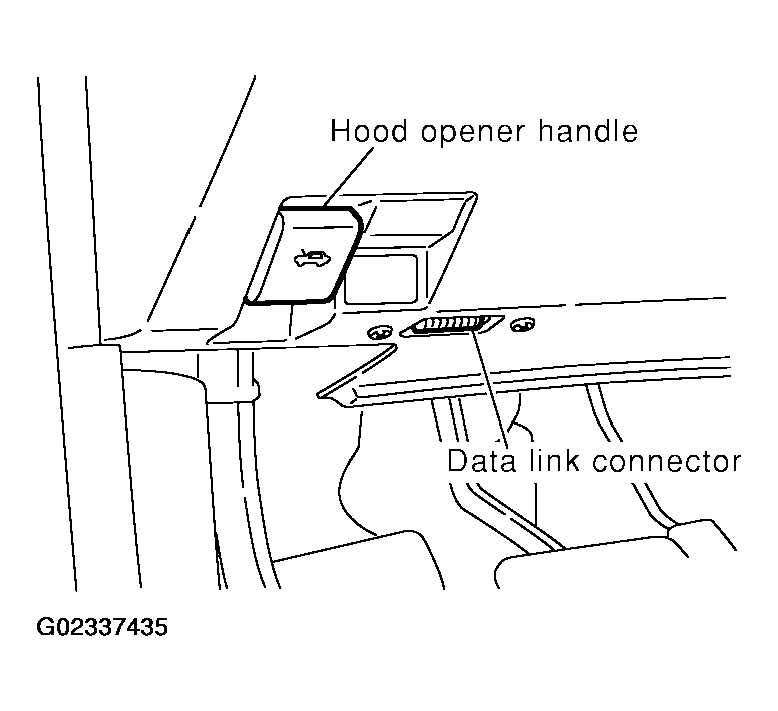

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

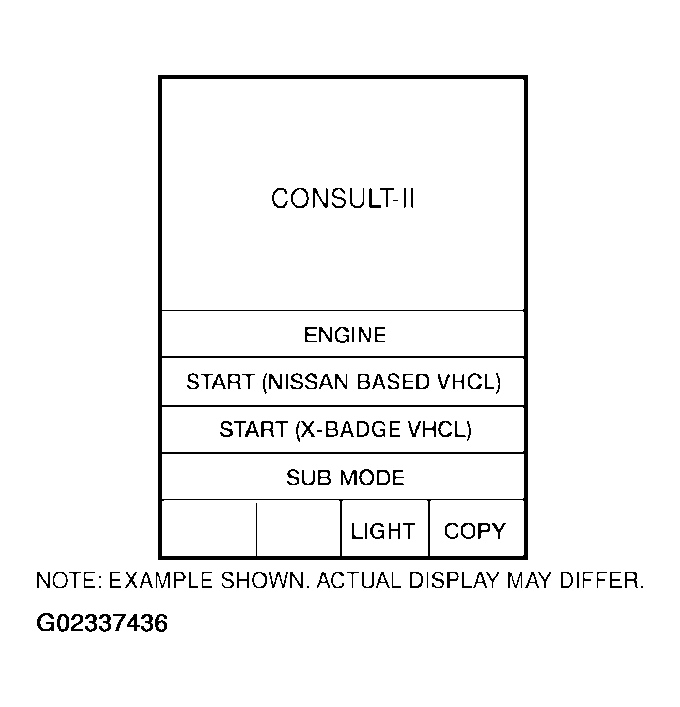

Fig 2: Locating CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

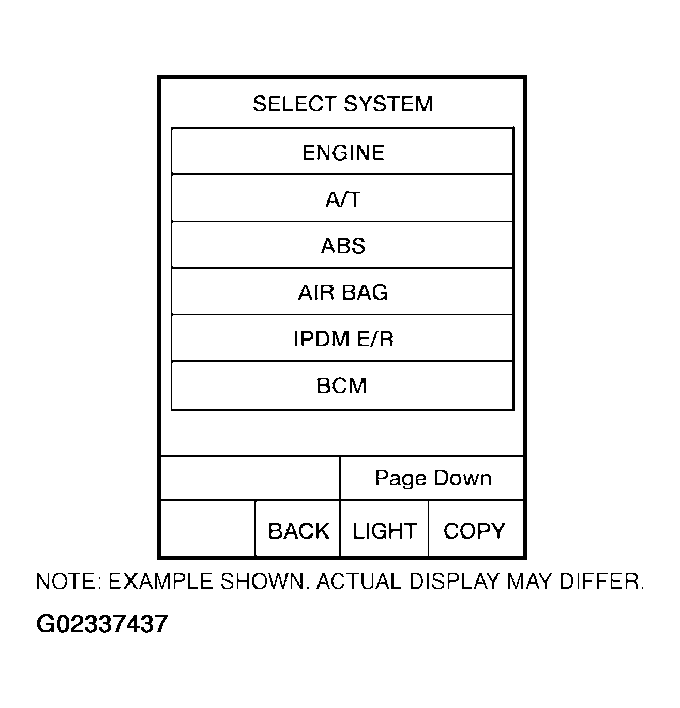

Fig 3: Locating Select System Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BUZZER" or "BCM".

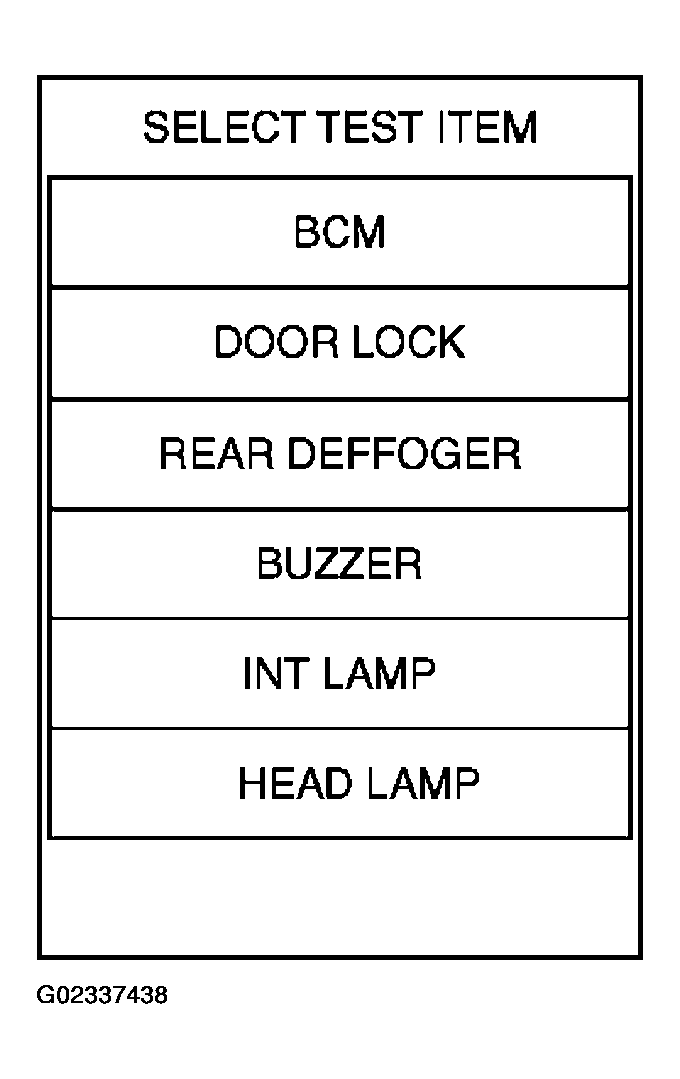

Fig 4: Locating Select Test Item Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "DATA MONITOR", "ACTIVE TEST" or "SELF-DIAG RESULTS".

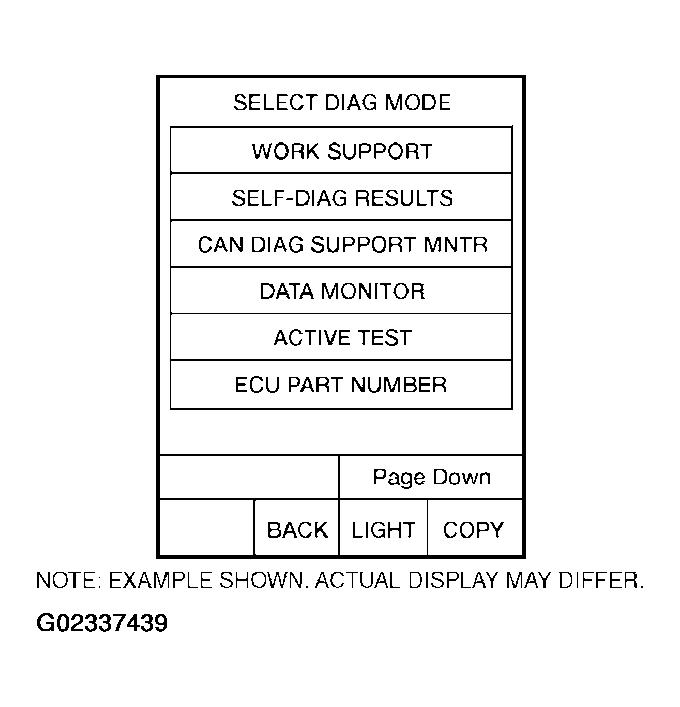

Fig 5: Locating Select Diag Mode Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
