2. Check Throttle Position Sensor Power Supply Circuit

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect electric throttle control actuator harness connector.
  2. Turn ignition switch ON.

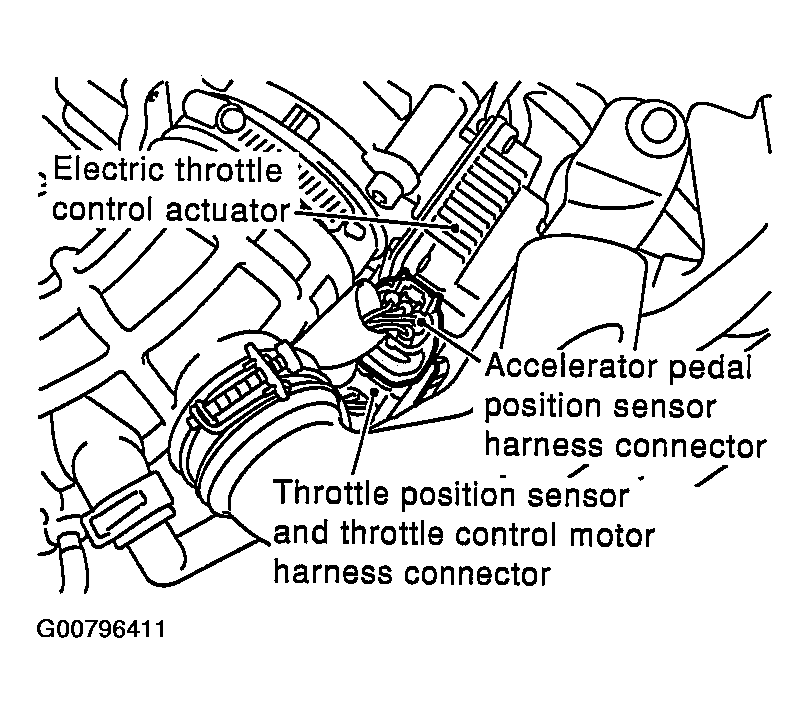

    Fig 1: Identifying Electric Throttle Control Actuator
    G00796411Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check voltage between electric throttle control actuator terminal 1 and ground with CONSULT-II or tester.
    Fig 2: Checking Voltage Between Electric Throttle Control Actuator Terminal 1 & Ground
    G00796412Courtesy of NISSAN MOTOR CO., U.S.A.

    Voltage: Approximately 5V

OK or NG

  1. OK: GO TO 5. CHECK THROTTLE POSITION SENSOR .
  2. NG: GO TO 3.
