Removal And Installation: Removal

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

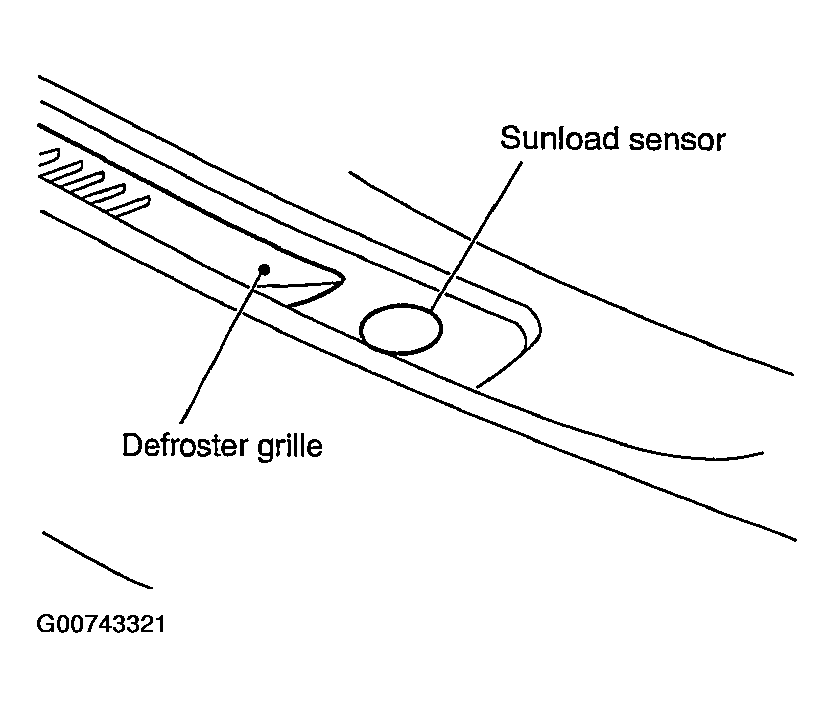

Fig 1: Identifying Sunload Sensor & Defroster Grille
G00743321Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove front defroster grille (left-hand side). Refer to REMOVAL AND INSTALLATION .
  2. Disconnect sunload sensor connector, and then remove the sunload sensor.
