Removal And Installation: Removal

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front grille. Refer to FRONT GRILLE .
  2. Disconnect ambient sensor connector, and then remove ambient sensor.

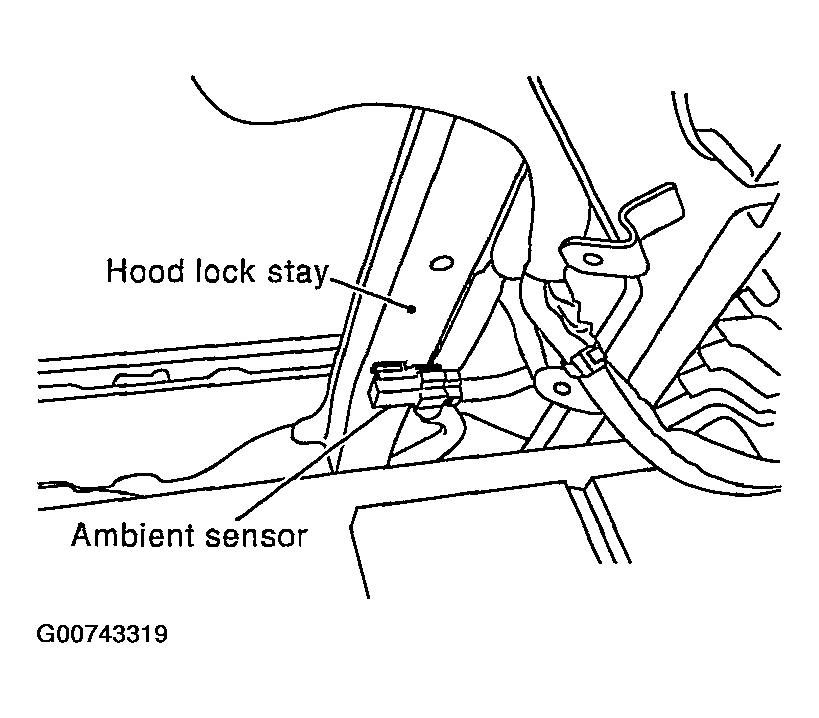

    Fig 1: Identifying Hood Lock Stay & Ambient Sensor
    G00743319Courtesy of NISSAN MOTOR CO., U.S.A.
