Roof Headlining: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see STANDARD BOLT ).

  1. INSTALL SIDE RAIL SPACER FRONT LH (w/o Curtain Shield Airbag)
  2. INSTALL SIDE RAIL SPACER FRONT RH (w/o Curtain Shield Airbag)
  3. INSTALL SIDE RAIL SPACER REAR LH (w/o Curtain Shield Airbag)
  4. INSTALL SIDE RAIL SPACER REAR RH (w/o Curtain Shield Airbag)
  5. INSTALL ROOF HEADLINING ASSEMBLY
    1. Attach the wire harness to the headlining with tape as shown in the illustration.

      HINT:

      Be careful that dirt and foreign matter do not contaminate the tape's adhesive.

    2. Attach the roof wire harness with tape.
      NOTE:

      Attach the roof wire harness securely.

    3. Attach the 26 fasteners to install the headlining.
    4. Install the 2 clips.
    Fig 1: Attaching Roof Wire Harness With Tape
    G04224804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 2: Installing Headlining Fasteners
    G04224805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL COAT HOOK
    1. Install the coat hook with the bolt and attach the claw.
      Fig 3: Installing Coat Hook With Bolt
      G04224806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL ASSIST GRIP SUB-ASSEMBLY
    1. Attach the 4 claws to install the assist grip.
    Fig 4: Installing Assist Grip Claws
    G04224807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 5: Installing Visor With Screws
    G04224808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL ASSIST GRIP COVER
    1. Attach the 4 claws to install the 2 covers.
  9. INSTALL VISOR HOLDER LH
    1. Install the visor holder by turning it clockwise.
  10. INSTALL VISOR HOLDER RH
    1. Install the visor holder by turning it clockwise.
  11. INSTALL LH VISOR ASSEMBLY
    1. Install the visor with the 2 screws.
  12. INSTALL RH VISOR ASSEMBLY
    1. Install the visor with the 2 screws.
  13. INSTALL NO. 2 ROOM LIGHT ASSEMBLY
    1. Attach the light to the deck trim side panel LH.
  14. INSTALL NO. 1 ROOM LIGHT ASSEMBLY
    1. Connect the room light connector.
    2. Attach the 4 claws to install the light.

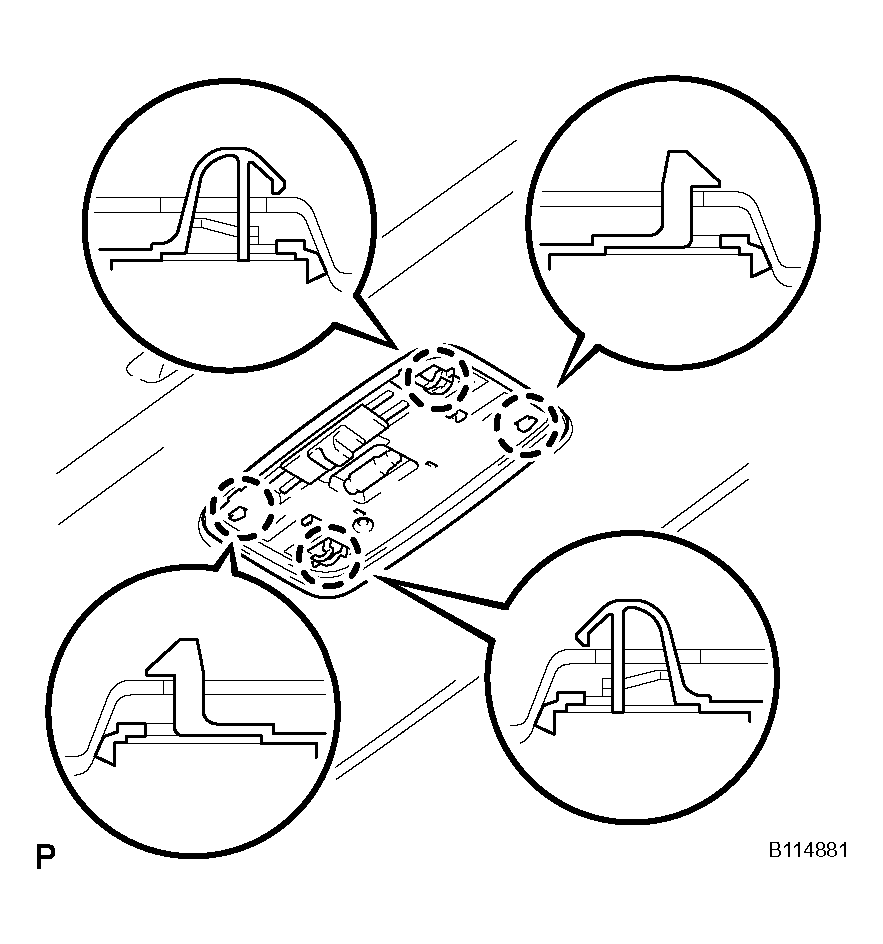

      Fig 6: Installing No. 1 Room Light Claws
      G04224809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 4 claws to install the lens.
  15. INSTALL MAP LIGHT ASSEMBLY
    1. Connect the map light connector.
      Fig 7: Installing No. 1 Room Light Lens Claws
      G04224810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 3 clips to install the light.
    Fig 8: Installing Map Light Clips
    G04224811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL FRONT PILLAR GARNISH LH
    1. w/o Curtain shield airbag:

      Attach the 2 clips to install the garnish.

      Fig 9: Installing Front Pillar Garnish Clips (w/o Curtain Shield Airbag)
      G04224812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Curtain shield airbag:
      1. Remove the protective cover.

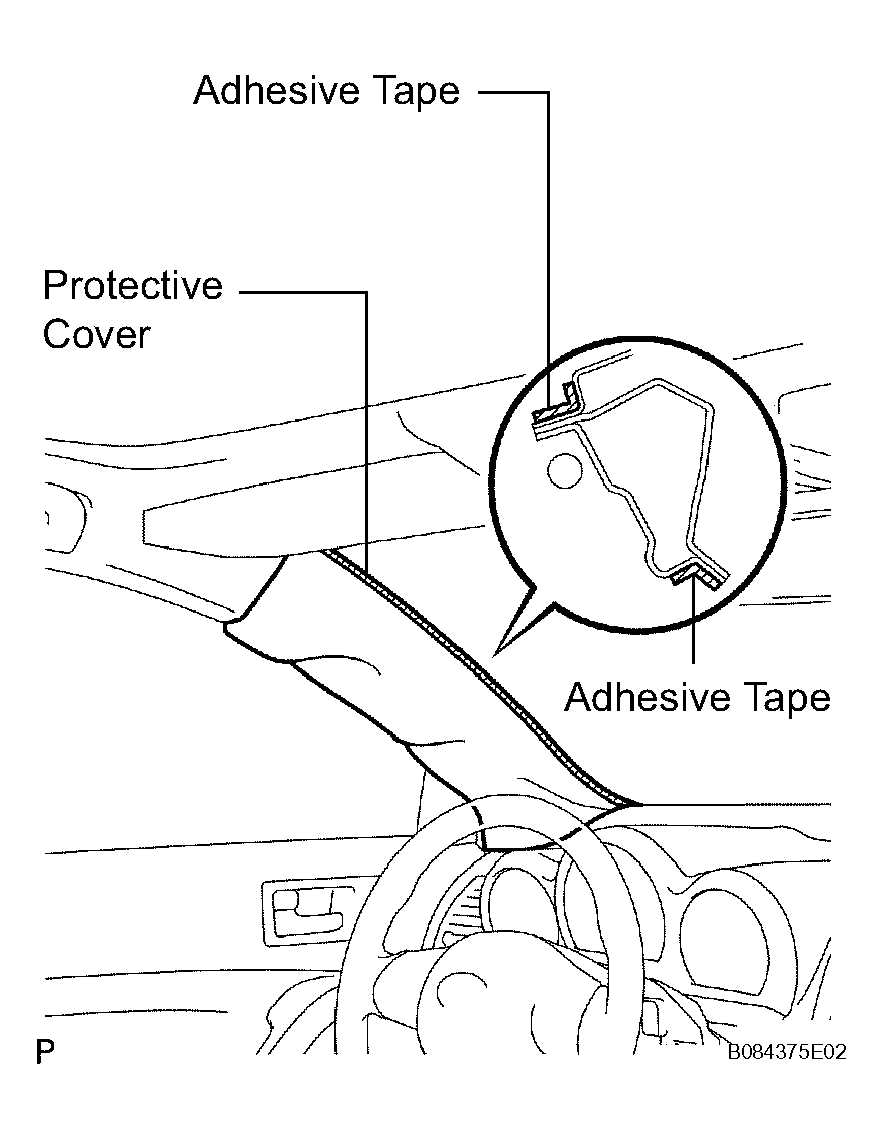

        Fig 10: Removing Protective Cover (w/ Curtain Shield Airbag)
        G04224813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Attach the 2 clips to install the garnish.

        HINT:

        Clip B cannot be reused.

  17. INSTALL FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

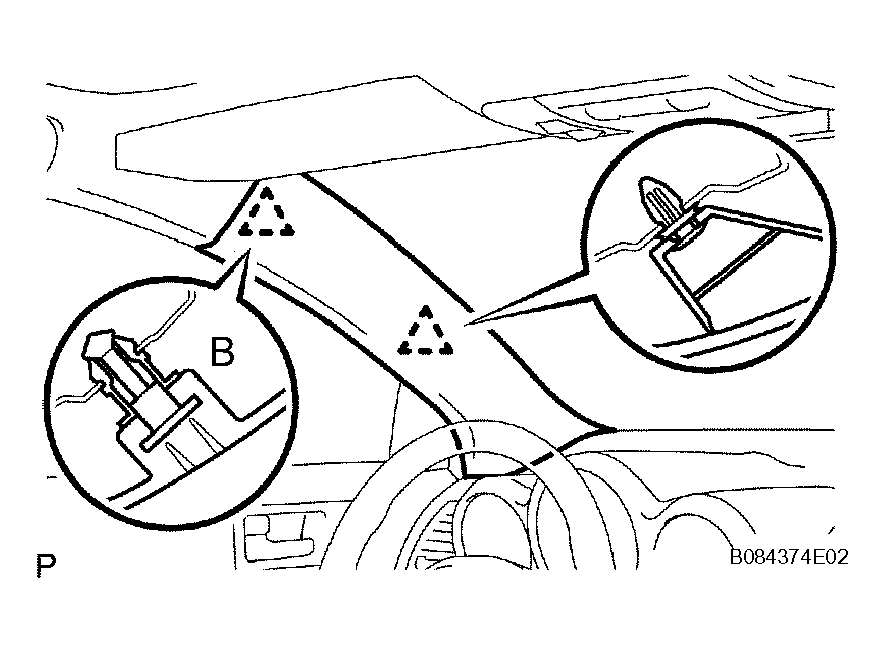

    Fig 11: Installing Front Pillar Garnish Clips (w/ Curtain Shield Airbag)
    G04224814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL ROOF SIDE GARNISH ASSEMBLY INNER LH
    1. w/o Curtain shield airbag:

      Attach the 4 clips to install the garnish.

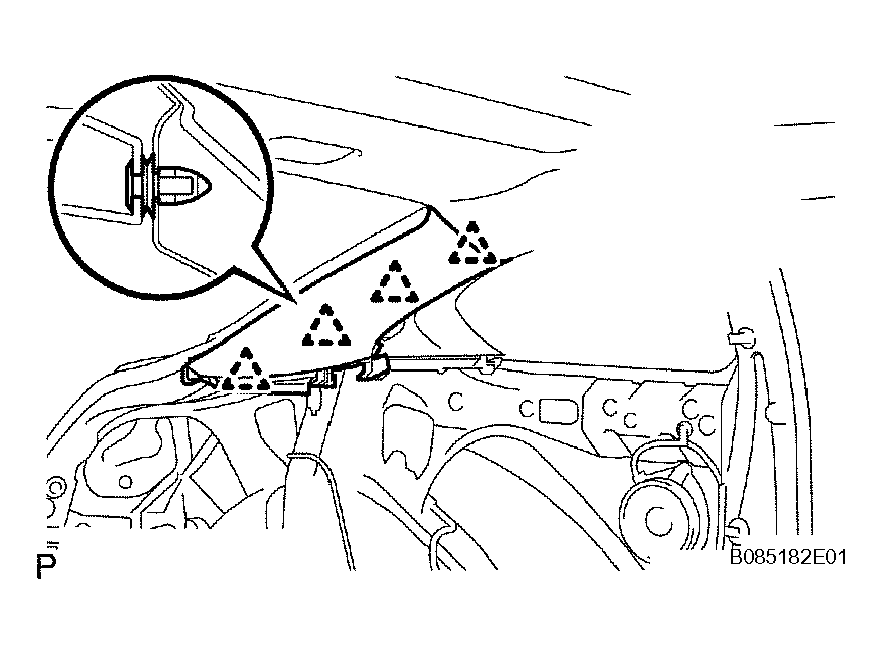

      Fig 12: Installing Roof Side Garnish Clips (w/o Curtain Shield Airbag)
      G04224815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Curtain shield airbag:

      Attach the 4 clips to install the garnish.

      HINT:

      Clip B cannot be reused.

  19. INSTALL ROOF SIDE GARNISH ASSEMBLY INNER RH

    HINT:

    Use the same procedures described for the LH side.

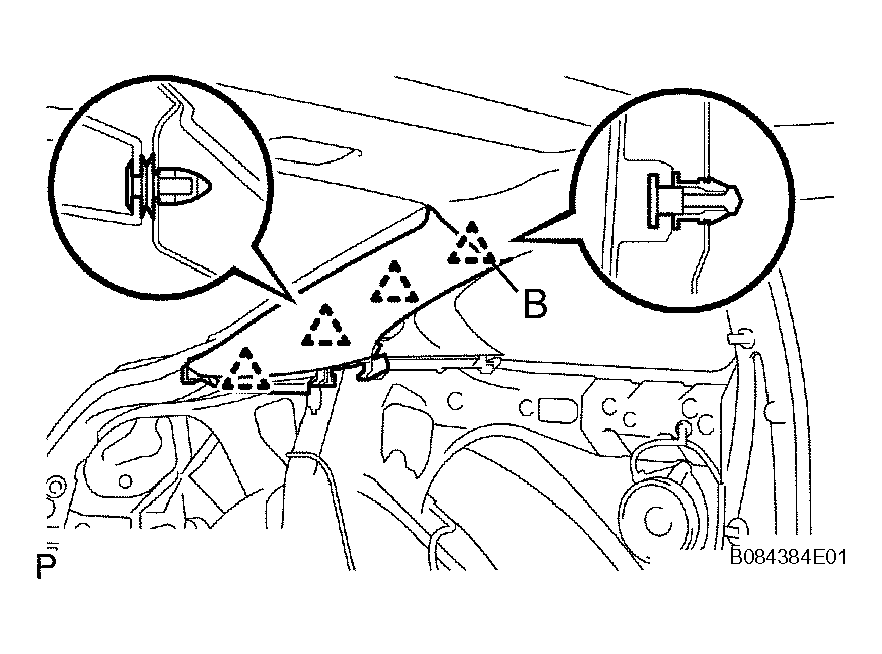

    Fig 13: Installing Roof Side Garnish Clips (w/ Curtain Shield Airbag)
    G04224816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
    1. Attach the 4 claws and 4 clips to install the side panel.
    2. Install the rope hook with the bolt.
    3. Install the luggage hook.
  21. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

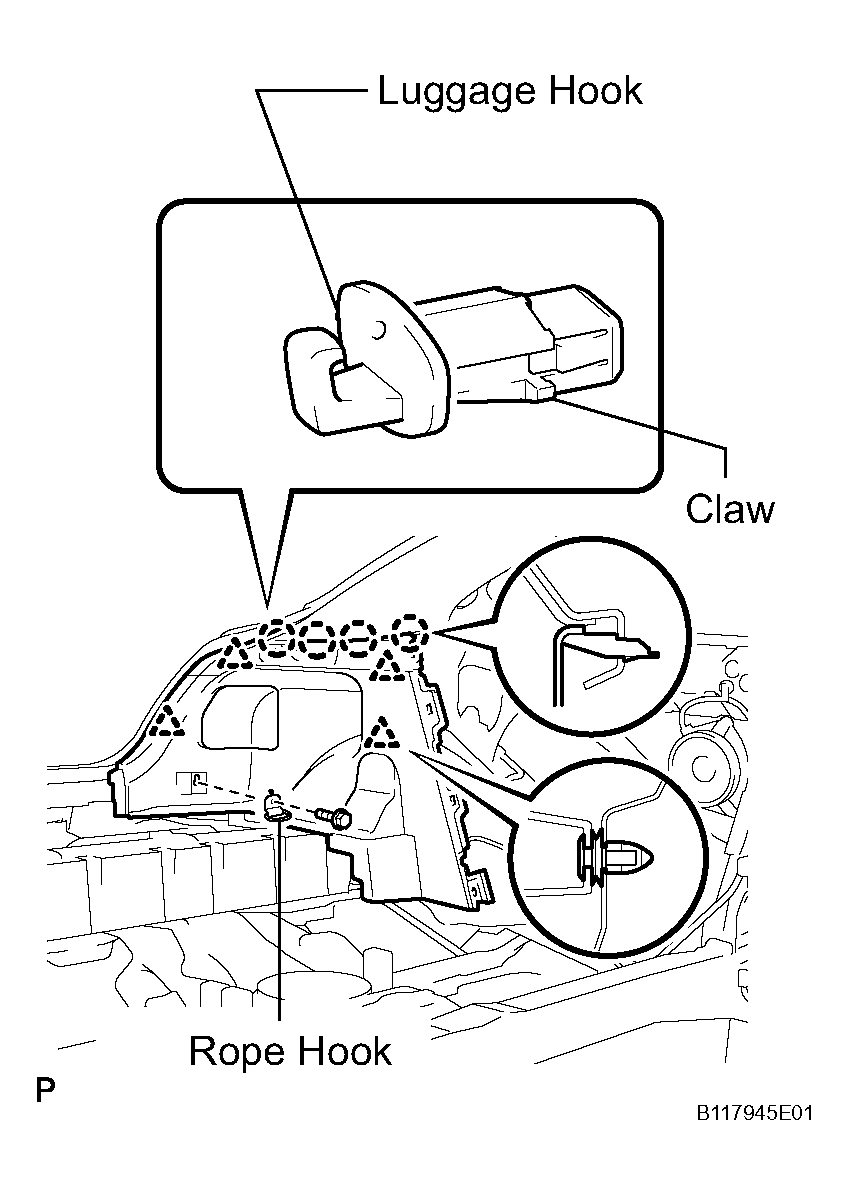

    Fig 14: Installing Deck Trim Side Panel Claws And Clips
    G04224817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL ROOF SIDE GARNISH INNER LOWER LH
    1. Attach the 5 clips to install the garnish.
  23. INSTALL ROOF SIDE GARNISH INNER LOWER RH

    HINT:

    Use the same procedures described for the LH side.

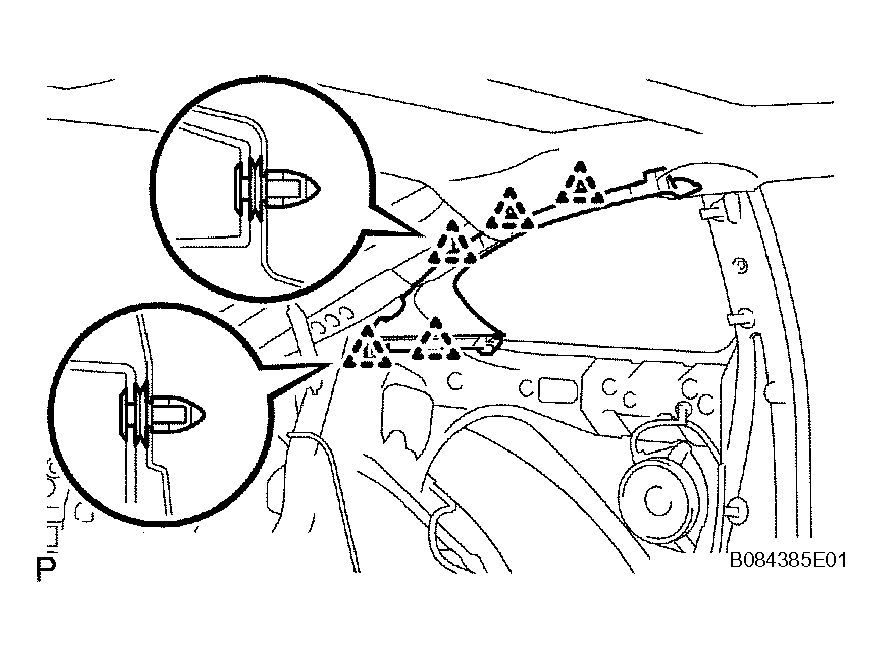

    Fig 15: Installing Garnish Clips
    G04224818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL CENTER PILLAR GARNISH LH
    1. w/o Curtain shield airbag:

      Attach the clip to install the garnish.

    2. w/ Curtain shield airbag:

      Attach the 2 claws and clip to install the garnish.

    3. Install the 2 screws.
  25. INSTALL CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

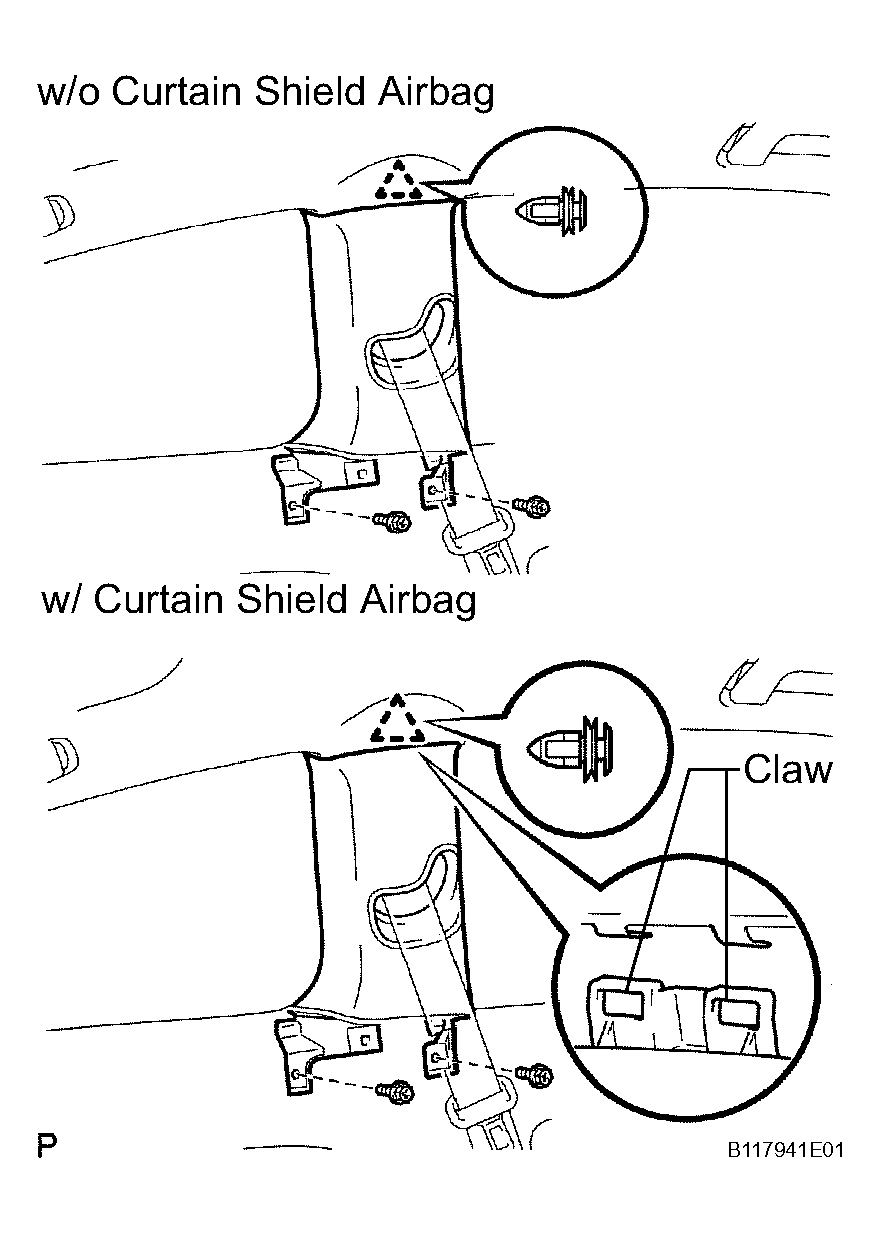

    Fig 16: Installing Center Pillar Garnish Claws And Clip
    G04224819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL NO. 1 SIDE TRIM ASSEMBLY LH
    1. Attach the 3 claws and 8 clips to install the trim.
    2. Attach the clip labeled A.
    3. Install the hook.
    4. Install the 2 floor anchor bolts (front and rear seat belt).
  27. INSTALL NO. 1 SIDE TRIM ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  28. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  29. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  30. INSTALL REAR SEATBACK ASSEMBLY LH (See  INSTALLATION  )
  31. INSTALL REAR SEATBACK ASSEMBLY RH (See  INSTALLATION  )
  32. INSTALL REAR SEAT CUSHION ASSEMBLY (See  INSTALLATION  )

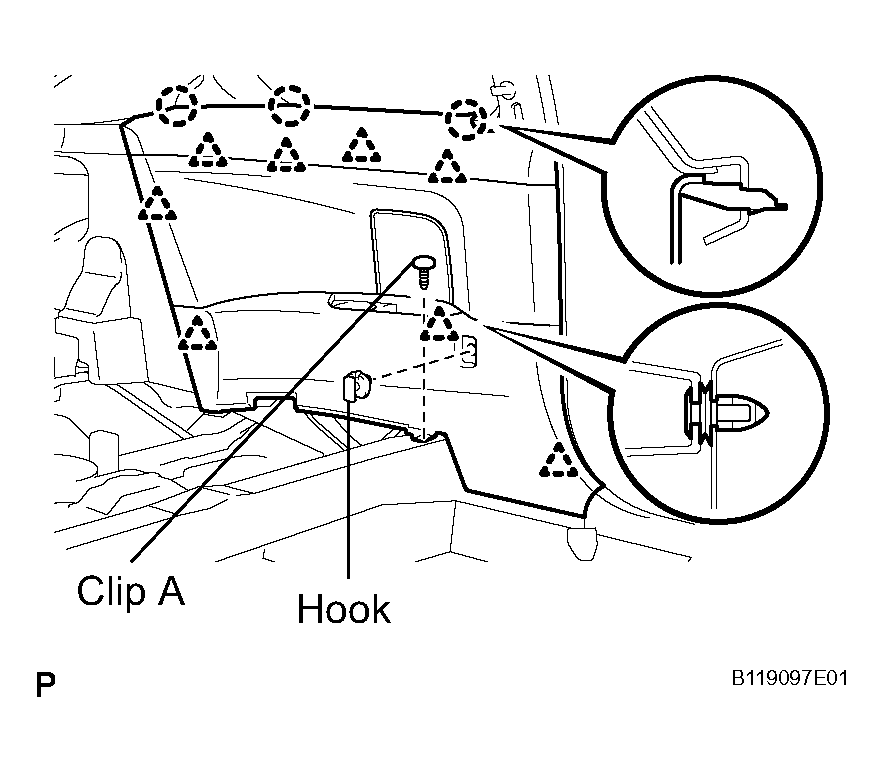

    Fig 17: Installing No. 1 Side Trim Claws And Clips
    G04224820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
    1. Attach the 2 clips to install the trim.
    2. Install the cap nut.
  34. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

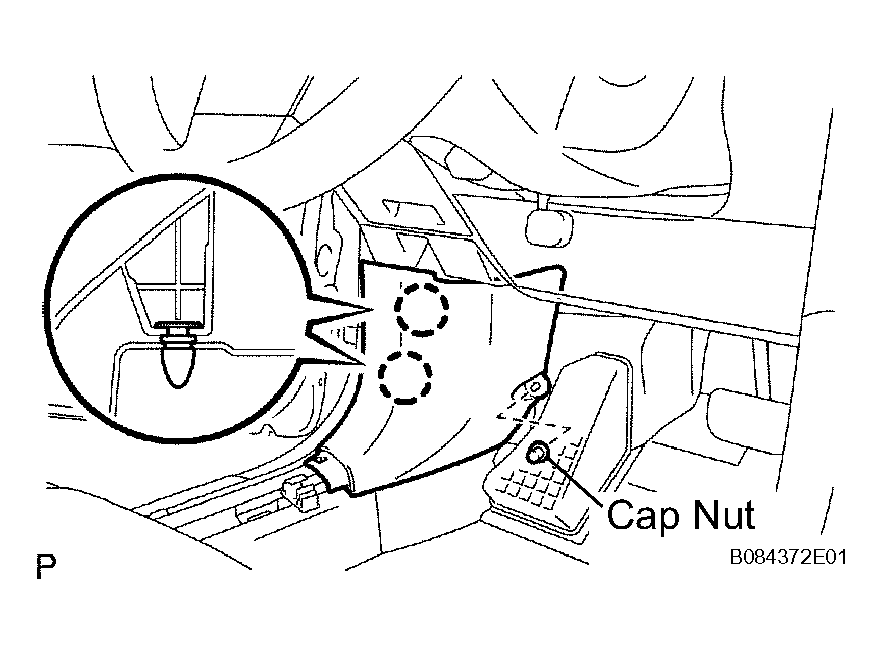

    Fig 18: Installing Cowl Side Trim Clips
    G04224821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL FRONT DOOR SCUFF PLATE LH
    1. Attach the 10 claws to install the scuff plate.
  36. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

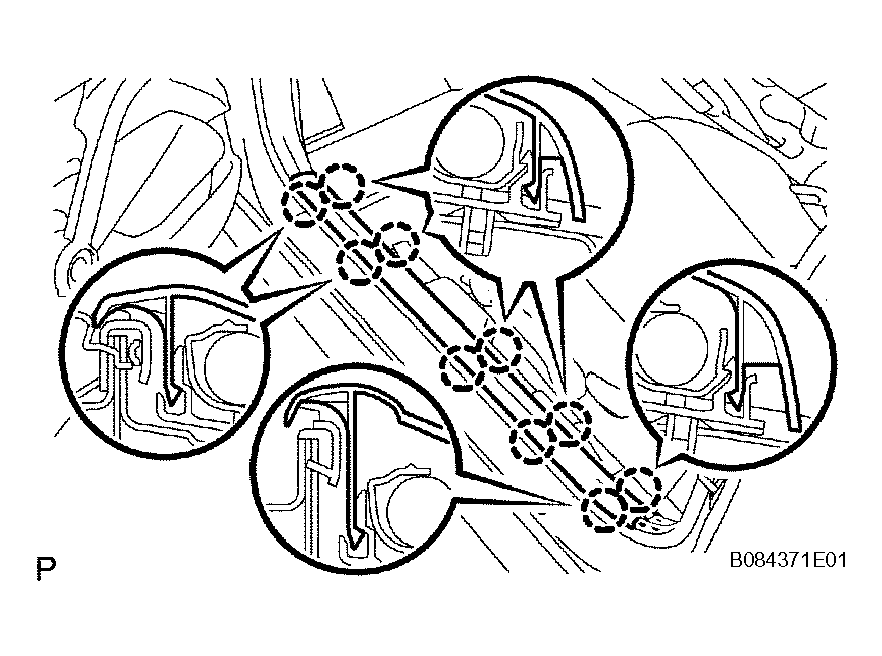

    Fig 19: Installing Front Door Scuff Plate Claws
    G04224822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL FRONT DOOR SCUFF PLATE OUTSIDE LH
    1. Attach the 4 clips to install the scuff plate.
  38. INSTALL FRONT DOOR SCUFF PLATE OUTSIDE RH

    HINT:

    Use the same procedures described for the LH side.

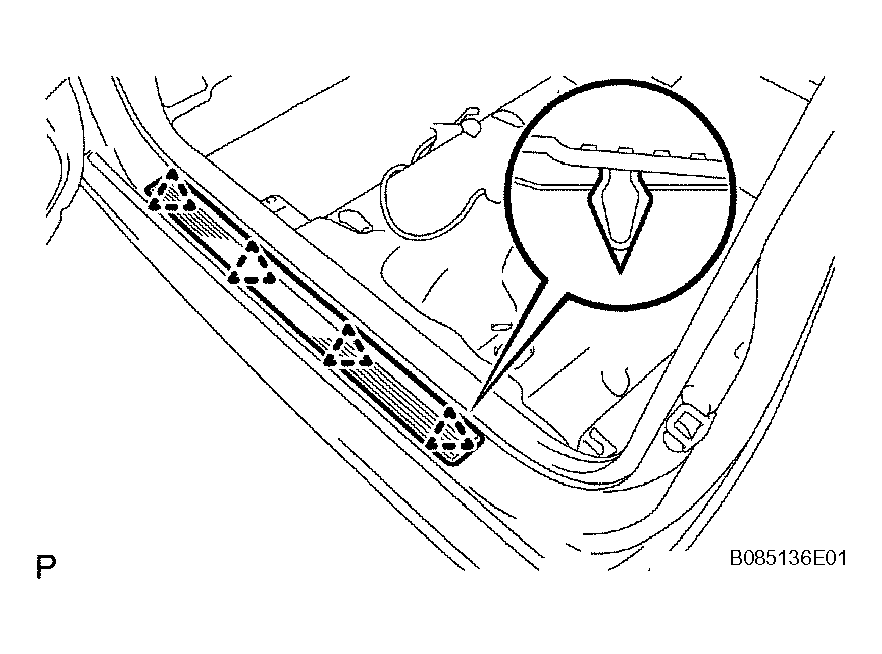

    Fig 20: Installing Front Door Scuff Plate Clips
    G04224823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL REAR NO. 1 FLOOR BOARD
    1. Attach the clip to install the board.

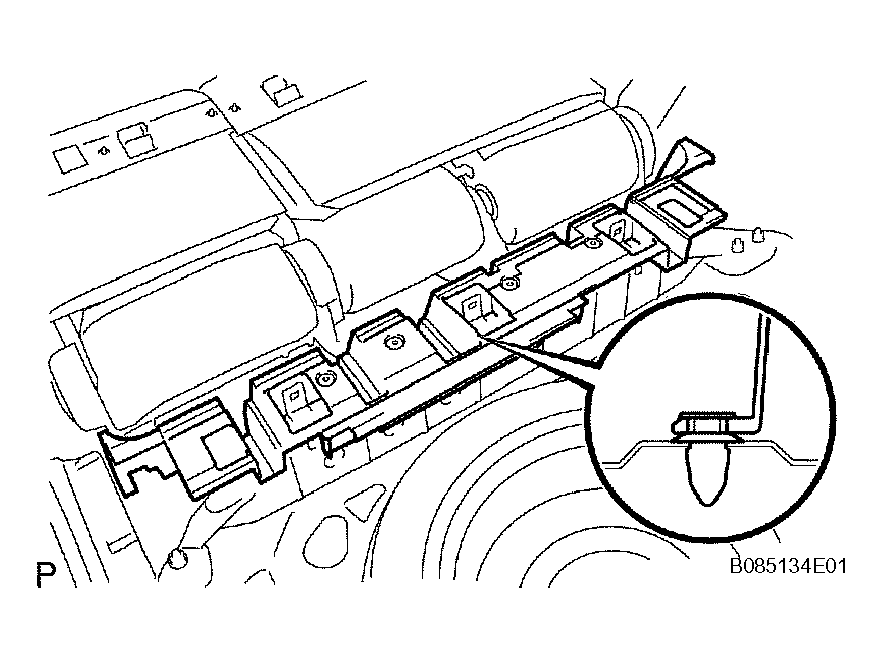

    Fig 21: Installing Rear No. 1 Floor Board Clip
    G04224824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. INSTALL NO. 1 DECK BOARD
    1. Attach the 4 clips to install the deck board.
    2. Install the rope hook with the bolt.
  41. INSTALL DECK FLOOR BOX REAR
  42. INSTALL DECK FLOOR BOX LH
    1. Install the box with the 2 clips.
  43. INSTALL DECK FLOOR BOX RH
    1. Install the box with the 2 clips.
  44. INSTALL SPARE WHEEL COVER ASSEMBLY

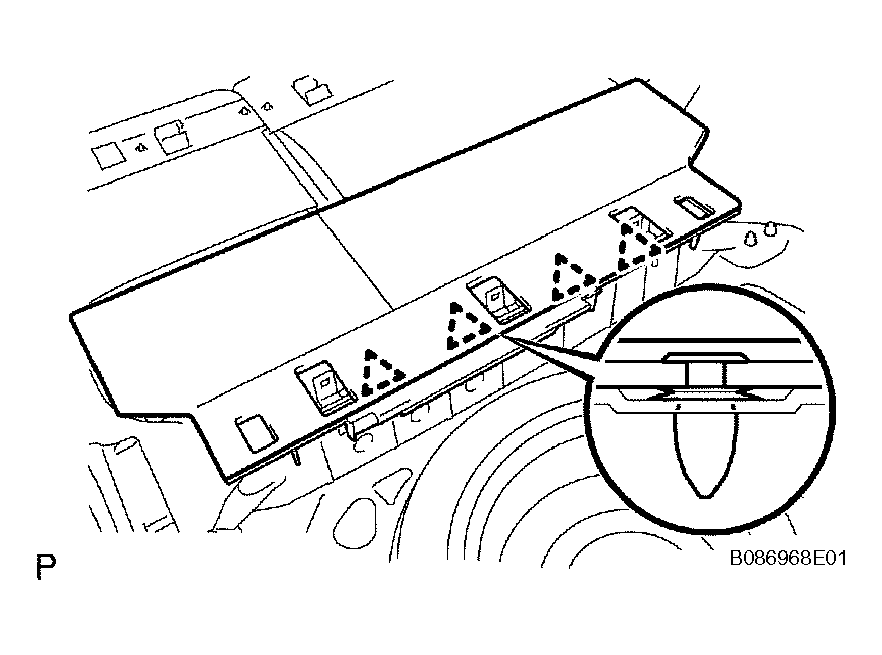

    Fig 22: Installing No. 1 Deck Board Clips
    G04224825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. INSTALL BACK DOOR WEATHERSTRIP
  46. INSTALL BACK DOOR SCUFF PLATE
    1. Attach the 4 clips to install the scuff plate.
  47. INSTALL DECK BOARD SUB-ASSEMBLY
  48. INSTALL TONNEAU COVER ASSEMBLY

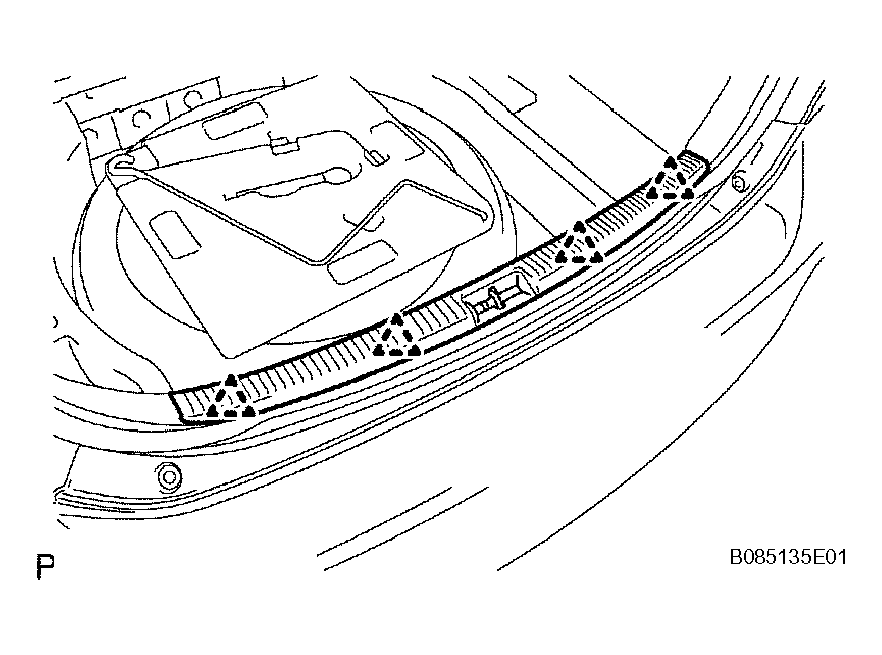

    Fig 23: Installing Back Door Scuff Plate Clips
    G04224826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
