Back Door Support: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

REMOVE BACK DOOR STAY ASSEMBLY LH
1. Using a screwdriver, remove the 2 stop rings and stay.
  HINT:

  Remove the door stay while supporting the back door with your free hand.

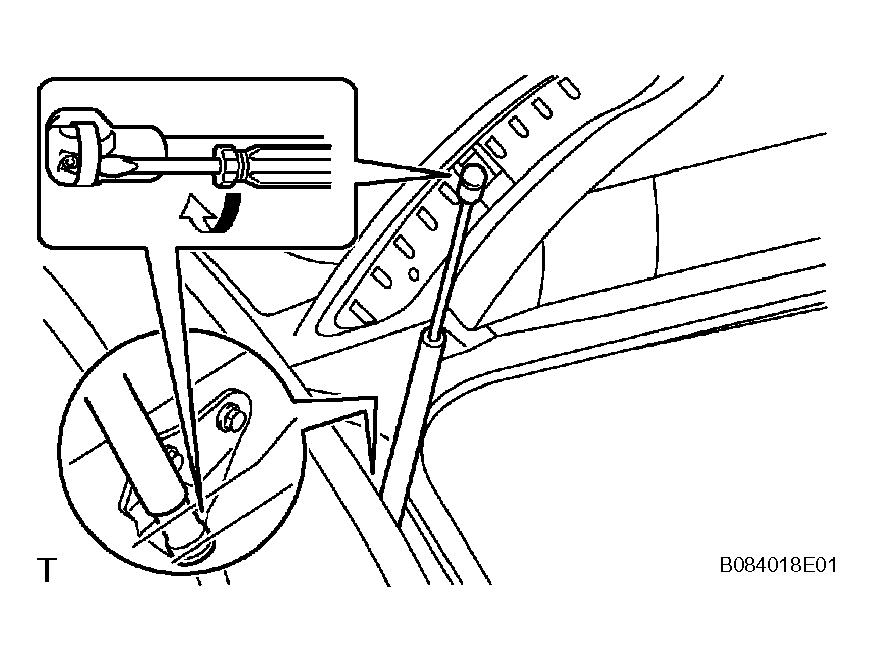

Fig 1: Removing Back Door Stay Assembly LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
