Back Door Support: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

INSTALL BACK DOOR STAY ASSEMBLY LH
1. Install the stay with the 2 stop rings.

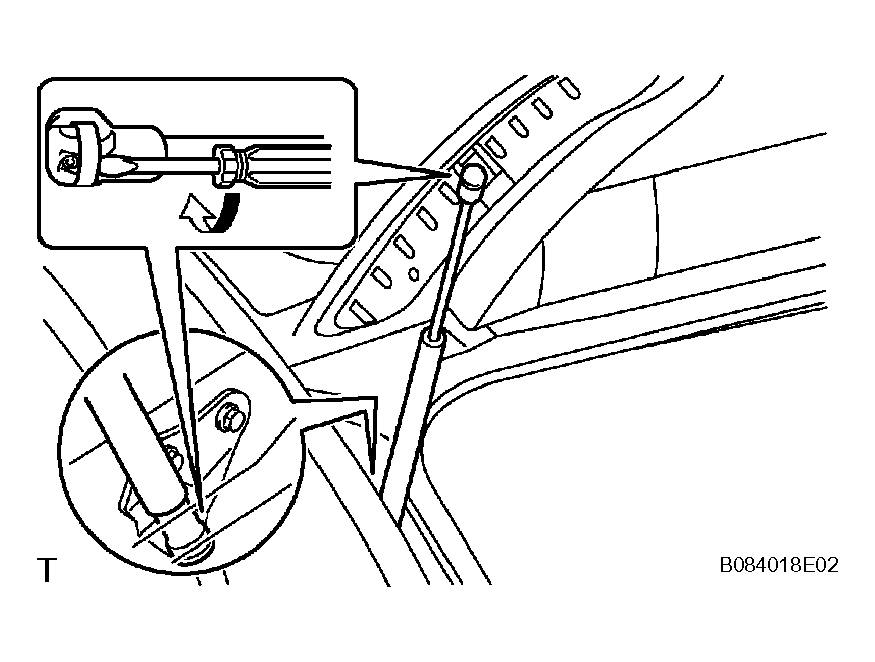

Fig 1: Installing Back Door Stay Assembly LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
