Rear Window Defogger Power Supply Circuit Check

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUSES

    Check if any of the following fuses in fuse block (J/B) and IPDM E/R are blown.

    FUSE CHART

    COMPONENT PARTS TERMINAL NO. (SIGNAL) AMPERE FUSE NO.
    Fuse block (J/B) 2T (Ignition power supply) 10A 12
    IPDM E/R 5 (Battery power supply) 20A 32
    6 (Battery power supply) 20A 37
    NOTE: Refer to "COMPONENT PARTS AND HARNESS CONNECTOR LOCATION ".

    OK or NG

    OK: GO TO 2.

    NG: If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse, refer to "COMPONENT PARTS AND HARNESS CONNECTOR LOCATION ".

  2. CHECK REAR WINDOW DEFOGGER RELAY POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect rear window defogger relay.
    3. Turn ignition switch ON.
    4. Check voltage between rear window defogger relay connector and ground.
      CONNECTOR TERMINAL VOLTAGE CHART

      Connector Terminals Voltage (V) (Approx.)
      (+) (-)
      B4 1 Ground Battery voltage
      3
      6

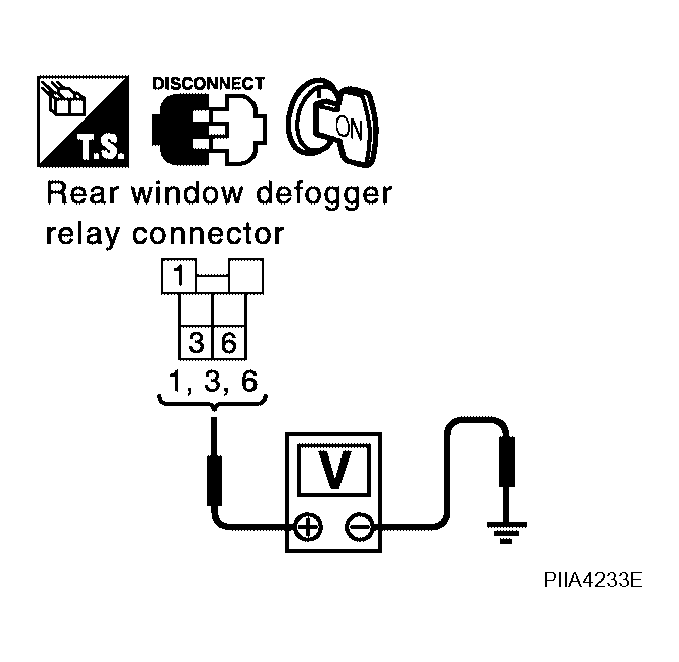

      Fig 1: Identifying Voltage Between Rear Window Defogger Relay Connector And Ground
      G04199781Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 3.

    NG: Repair or replace harness.

  3. CHECK REAR WINDOW DEFOGGER RELAY

    Check continuity between rear window defogger relay terminals 3 and 5, 6 and 7.

    CONTINUITY CHECK CHART

    Terminals Condition Continuity
    6 7 12V direct current supply between terminals 1 and 2 Yes
    No current supply No
    3 5 12V direct current supply between terminals 1 and 2 Yes
    No current supply No

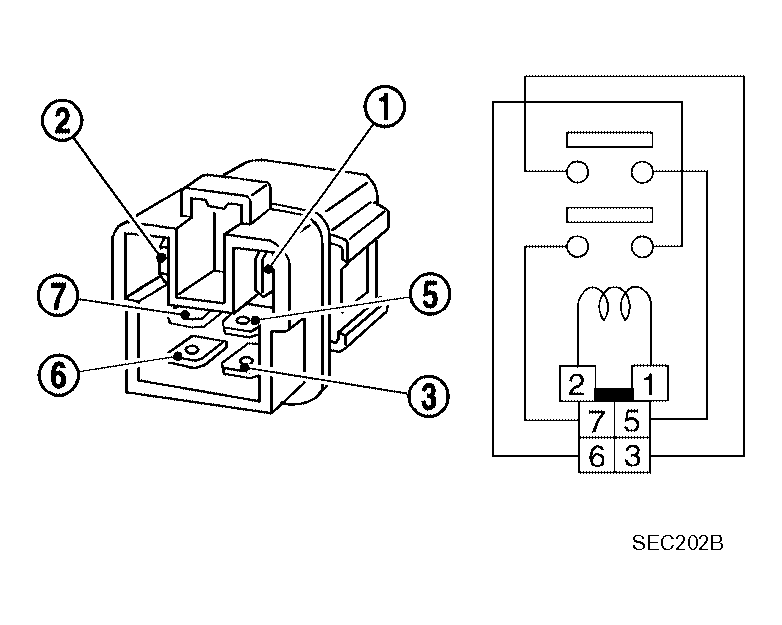

    Fig 2: Locating Rear Window Defogger Relay Connector Terminals
    G04199782Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 4.

    NG: Replace rear window defogger relay.

  4. CHECK REAR WINDOW DEFOGGER RELAY GROUND CIRCUIT
    1. Install rear window defogger relay.
    2. Turn ignition switch ON.
    3. Check voltage between IPDM E/R connector E121 terminal 52 and ground.
      TERMINAL VOLTAGE TABLE

      Connector Terminals Condition Voltage (V) (Approx.)
      (+) (-)
      E121 52 Ground When rear window defogger switch ON 0
      When rear window defogger switch OFF Battery voltage

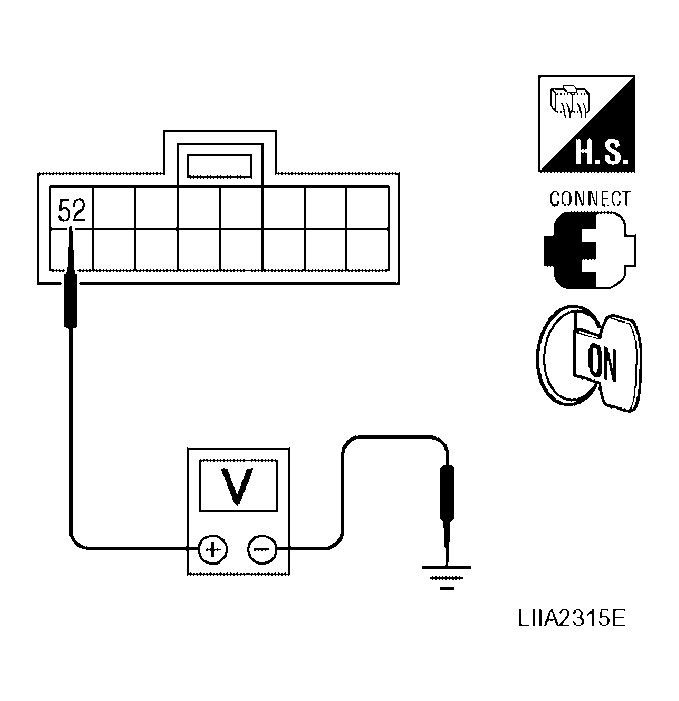

      Fig 3: Identifying Voltage Between IPDM E/R Terminal 52 And Ground
      G04199783Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: Rear window defogger power supply circuit check is OK.

    NG: GO TO 5.

  5. CHECK IPDM E/R HARNESS
    1. Turn ignition switch OFF.
    2. Disconnect IPDM E/R and rear window defogger relay.
    3. Check continuity between IPDM E/R connector E121 (A) terminal 52 and rear window defogger relay connector B4 (B) terminal 2.

      52 - 2: Continuity should exist.

    OK or NG

    OK: Replace IPDM E/R. Refer to "REMOVAL AND INSTALLATION OF IPDM E/R ".

    NG: Repair or replace harness.

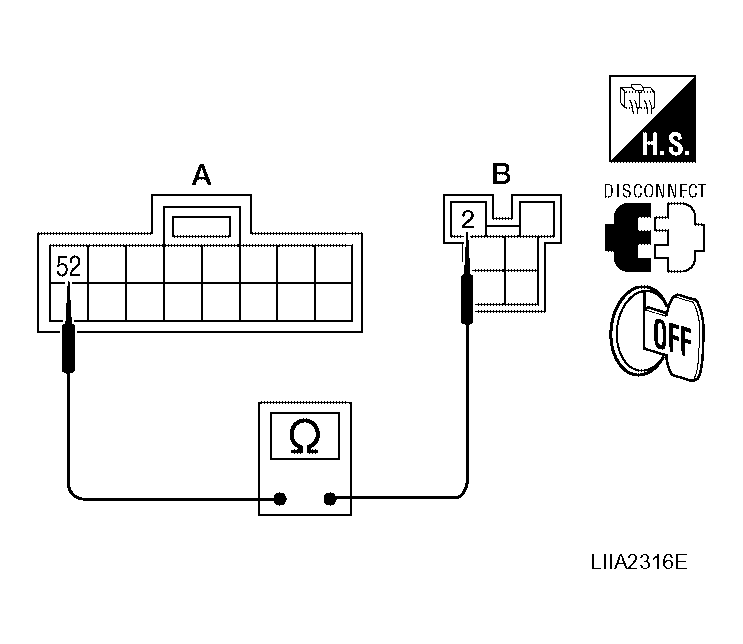

    Fig 4: Identifying Continuity Between IPDM E/R Terminal 52 And Rear Window Defogger Relay Terminal 2
    G04199784Courtesy of NISSAN MOTOR CO., U.S.A.
